DK-7725 High-Speed Wire EDM Machine: Precision, Productivity, and Reliable Four-Axis Machining

Modern manufacturing increasingly depends on machining systems that can combine precision, speed, stability, and flexibility in one production platform. Mold makers, precision engineering companies, automotive suppliers, aerospace manufacturers, electronics producers, and general metalworking businesses all face the same fundamental challenge: how to process electrically conductive materials accurately while controlling production time and operating costs.

The DK-7725 CNC High-Speed Wire Electrical Discharge Machining machine is designed to address this challenge. As a four-axis high-speed wire-cut EDM system, it combines X, Y, U, and V axis linkage, a maximum table load of 250 kg, cutting efficiency of up to 16,000 square millimeters per hour under suitable conditions, and a structure intended for stable long-term operation. Its working range makes it especially suitable for small and medium-sized components, precision molds, and high-accuracy small- to medium-batch production.

Unlike conventional cutting processes, wire electrical discharge machining removes conductive material through controlled electrical discharges between a moving electrode wire and the workpiece. Since the wire does not apply conventional cutting force to the workpiece, the process is highly suitable for hardened steel, complex profiles, narrow slots, fine contours, and intricate mold components. The DK-7725 extends these capabilities through four-axis control, high-frequency pulse technology, constant wire tension, rigid mechanical construction, and an industrial CNC control system.

This article examines the machine’s operating principles, technical performance, manufacturing strengths, application value, maintenance requirements, and advantages compared with less integrated or lower-capability wire-cut EDM equipment.

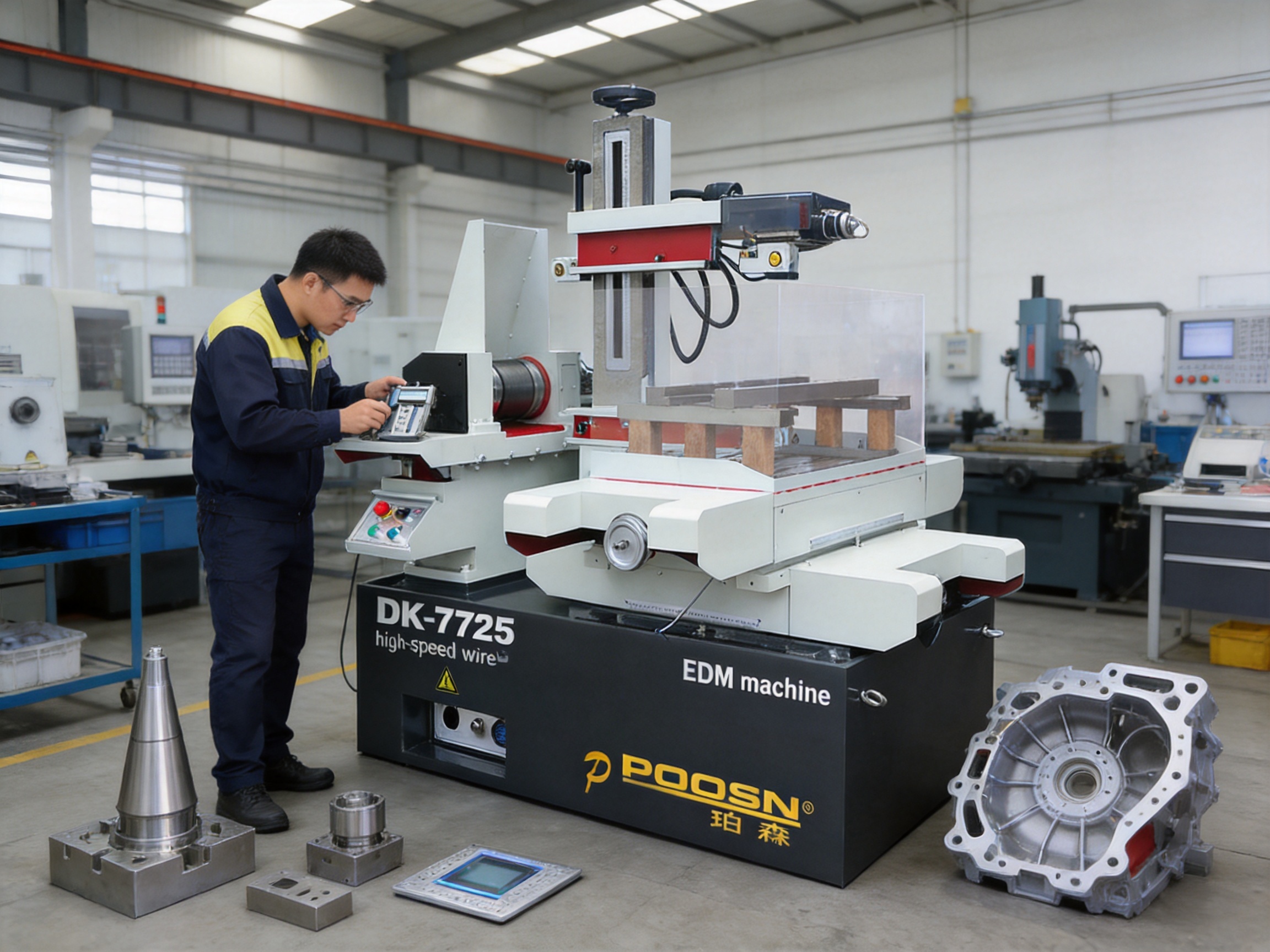

DK-7725 CNC High-Speed Wire EDM Machine (4-Axis, 250kg Load)

1. Product Positioning and Main Processing Value

The DK-7725 belongs to the DK-77 high-speed WEDM product family. It is positioned as a compact yet capable CNC wire-cut EDM machine for manufacturers that require reliable precision without moving immediately to a much larger machine platform. Its 410 by 600 millimeter worktable and 250 by 320 millimeter X/Y travel provide a practical balance between usable machining space and overall machine footprint.

The machine is particularly appropriate for precision mold inserts, stamping dies, small and medium-sized forming components, mechanical parts, electronic components, and other conductive workpieces that require accurate contour cutting. A maximum workpiece thickness of 350 millimeters gives the DK-7725 useful versatility for applications that exceed the practical limits of many smaller wire-cut systems.

Its maximum worktable load is 250 kg. This capacity allows users to process substantial workpieces while maintaining a suitable safety margin for fixtures and workholding accessories. Load capacity is important in mold production because workpieces are not always large in plan dimensions; they may also be dense, thick, and heavy. A machine that offers a useful cutting envelope but insufficient structural load capacity can create limitations in real production. The DK-7725 is designed to support demanding small- and medium-sized workpieces without sacrificing positioning stability.

The system uses X, Y, U, and V axis stepper drives with four-axis linkage. The X and Y axes control the main cutting path, while the U and V axes support taper and coordinated wire movement. This arrangement allows the machine to produce tapered profiles and complex upper- and lower-contour relationships. The maximum cutting taper is specified as plus or minus six degrees over 80 millimeters, providing a practical capability for mold components, slanted walls, and specialized profile work.

2. How Wire Electrical Discharge Machining Works

Wire EDM is a thermal machining process rather than a conventional mechanical cutting process. A continuously moving wire electrode passes close to the conductive workpiece while a controlled dielectric fluid fills the machining gap. When electrical conditions are suitable, a series of precisely controlled sparks forms between the wire and the workpiece. Each spark melts or vaporizes a minute amount of material, and the dielectric fluid carries the resulting particles away from the cutting zone.

Because the electrode wire does not normally make physical contact with the workpiece, the process generates very little mechanical cutting force. This is one of the principal reasons wire EDM is valuable for hardened materials and delicate geometries. A workpiece can be machined after heat treatment, reducing the risk of distortion caused by later hardening operations. Fine internal corners, narrow openings, thin ribs, and complex two-dimensional profiles can also be produced with high repeatability.

The final result depends on the interaction of several systems: the pulse power supply, wire transport system, worktable motion, dielectric circulation and filtration, CNC interpolation, and machine structure. If any one of these systems is unstable, cutting speed and accuracy may decline. The DK-7725 is therefore designed as an integrated machining platform rather than simply a table with a wire guide.

2.1 High-Frequency Pulse Control

The pulse power supply determines how electrical energy is delivered to the machining gap. The DK-7725 uses a high-frequency pulse power system intended to maintain consistent spark conditions during high-speed wire travel. Stable pulse control helps regulate the amount of material removed by each discharge and supports a balanced relationship between cutting speed, surface quality, and wire wear.

During thick-section cutting, the discharge gap must remain sufficiently open for molten particles and debris to leave the cutting zone. If debris accumulates, unstable sparking can occur, causing short circuits, excessive wire wear, poor surface finish, or wire breakage. The machine’s control logic and flushing system are designed to help maintain a stable machining gap, particularly when cutting thick conductive materials.

2.2 Controlled Wire Transport

Wire transport is another important factor in wire EDM performance. Excessive tension can increase the possibility of wire breakage, while insufficient tension can reduce geometric accuracy and surface quality. The DK-7725 uses a constant-tension approach to help stabilize the electrode wire as it passes through the cutting area.

A stable wire path supports more consistent kerf formation and reduces irregularities caused by vibration. It also helps extend wire service life when combined with clean guide components, correctly adjusted electrical parameters, and properly maintained working fluid. For manufacturers running repeated production jobs, improvements in wire stability can translate into fewer interruptions and more predictable cycle times.

2.3 CNC Path Control

The CNC system supports four-axis simultaneous control and is intended to simplify the programming and execution of complex contours. A modern wire EDM control must do more than follow a basic two-dimensional path. It must coordinate axis movement, adjust cutting parameters, manage taper geometry, respond to changing discharge conditions, and maintain a stable process through corners and narrow features.

By coordinating X, Y, U, and V movements, the DK-7725 can process workpieces requiring tapered surfaces and controlled upper and lower profiles. This is valuable in mold manufacturing, where draft angles, release surfaces, and specialized cavity geometries are common. It also reduces the need to create separate setups for operations that can be completed in one controlled machining cycle.

3. Technical Specifications

The following specifications summarize the principal performance and configuration data for the DK-7725 and the related models in the same product range. The broader model comparison helps users understand where the DK-7725 fits within the available worktable, travel, load, and machine-size options.

Specification	DK-7725	DK-7735	DK-7745	DK-7745F
Worktable size	410 x 600 mm	500 x 750 mm	570 x 850 mm	570 x 950 mm
X/Y travel	250 x 320 mm	350 x 450 mm	450 x 550 mm	450 x 650 mm
Maximum cutting thickness	350 mm	450 mm	450 mm	450 mm
Maximum table load	250 kg	300 kg	400 kg	500 kg
Maximum cutting taper	Plus or minus 6 degrees over 80 mm	Plus or minus 6 degrees over 80 mm	Plus or minus 6 degrees over 80 mm	Plus or minus 6 degrees over 80 mm
Maximum cutting efficiency	10,000 to 16,000 square mm per hour	10,000 to 16,000 square mm per hour	10,000 to 16,000 square mm per hour	10,000 to 16,000 square mm per hour
Optimal surface roughness	Ra 2.5 micrometers or better	Ra 2.5 micrometers or better	Ra 2.5 micrometers or better	Ra 2.5 micrometers or better
Drive system	X, Y, U, V stepper drive; four-axis linkage	X, Y, U, V stepper drive; four-axis linkage	X, Y, U, V stepper drive; four-axis linkage	X, Y, U, V stepper drive; four-axis linkage
Power supply	Three-phase, 380 V plus or minus 10 percent	Three-phase, 380 V plus or minus 10 percent	Three-phase, 380 V plus or minus 10 percent	Three-phase, 380 V plus or minus 10 percent
Machine weight	800 kg	1,100 kg	1,250 kg	1,350 kg
Machine dimensions	1,300 x 1,080 x 1,625 mm	1,650 x 1,250 x 1,830 mm	1,825 x 1,400 x 1,830 mm	1,825 x 1,550 x 1,830 mm

The DK-7725 offers the smallest footprint in this comparison while retaining the same stated maximum cutting efficiency, taper range, surface-finish target, and four-axis control concept as the larger models. This makes it a practical selection for facilities that need precision wire EDM capability but have limited floor space or a production mix centered on smaller workpieces.

4. Accuracy, Surface Finish, and Process Stability

Wire EDM performance should not be evaluated by cutting speed alone. Dimensional accuracy, taper accuracy, corner performance, surface roughness, repeatability, and process stability are equally important. The DK-7725 is specified with a linear cutting accuracy of 0.005 millimeters and a taper accuracy of 0.015 millimeters. Actual results depend on material, thickness, programmed conditions, machine calibration, thermal conditions, flushing, wire quality, and operator settings.

The stated optimal surface roughness is Ra 2.5 micrometers or better. This level can be suitable for many mold and precision component applications, although the required finish may vary by workpiece material and the number of finishing passes. Rough cutting is generally used to remove material efficiently, while finishing passes reduce the remaining stock and improve the surface texture and dimensional result.

Machine rigidity contributes directly to accuracy. The DK-7725 uses a high-rigidity cast iron bed structure, identified in the supplied technical material as an HT250 cast iron construction. High-strength castings that receive appropriate aging treatment can help reduce the influence of internal stress, vibration, and thermal deformation. A rigid bed also supports stable movement when the worktable carries a heavy mold or dense metal component.

Guideways and lead screws must work together with the control system to deliver accurate displacement. Low-friction motion, controlled backlash, proper lubrication, and regular inspection all affect the final result. The machine’s automatic lubrication system reduces manual intervention and supports consistent operation, but it does not eliminate the need for routine checks and scheduled maintenance.

4.1 Accuracy in Practical Production

In actual production, accuracy is influenced by the complete process chain. The workpiece must be securely and correctly positioned. The reference surfaces must be clean and stable. The wire guides must be aligned. The dielectric fluid must be sufficiently clean. The workpiece material must be electrically conductive and appropriate for the selected parameters. Finally, the machine must be leveled and installed in a suitable environment.

A well-designed machine can reduce the number of variables, but it cannot compensate for incorrect setup or unsuitable cutting conditions. For this reason, the manufacturer’s installation, commissioning, operator training, and technical support are important parts of the machine’s total value.

5. Advantages Compared with Less Capable Wire EDM Equipment

The DK-7725 has several practical advantages when compared with basic two-axis wire-cut machines, systems with limited load capacity, and machines that lack coordinated taper control.

5.1 Four-Axis Linkage

A simple two-axis system is suitable for straightforward profiles cut perpendicular to the worktable. However, many molds and industrial components require tapered walls or different upper and lower contours. Four-axis linkage allows the wire angle and position to be controlled through coordinated U and V movement. This expands the range of parts that can be completed in one setup and reduces dependence on secondary machining.

Four-axis capability can also improve productivity by reducing workpiece repositioning. Every additional setup introduces the possibility of alignment error, fixture variation, and extra handling time. When a tapered or complex profile can be completed directly, the overall process may become more efficient and easier to manage.

5.2 Higher Worktable Load

Small machines often have limited load ratings that restrict the use of thick steel plates or heavy mold components. The DK-7725’s 250 kg maximum worktable load gives it a stronger production position in the compact and medium-capacity segment. It allows users to consider heavier workpieces while retaining a relatively compact machine size.

5.3 Combination of Speed and Finish

Some high-speed systems prioritize material removal but provide limited control over surface finish or corner quality. Other precision machines offer good finish results but require longer machining times. The DK-7725 is designed to balance cutting efficiency with pulse control, wire tension stability, CNC path management, and multi-pass machining. Its stated cutting efficiency of 10,000 to 16,000 square millimeters per hour provides a useful productivity range when matched with an appropriate CNC cabinet and process configuration.

Cutting efficiency is not a universal cycle-time guarantee. It depends on factors such as workpiece height, material, wire diameter, flushing condition, electrical parameters, required surface finish, taper, and the number of finishing passes. Even so, a high potential cutting rate can help reduce rough-cutting time and improve machine utilization in suitable applications.

5.4 Stable Operation and Lower Intervention

The DK-7725 combines a rigid bed, electronic control system, automatic lubrication, constant wire tension, and filtration and cooling provisions. This integrated approach can reduce the frequency of manual corrections and contribute to more stable long-term production. Lower intervention is especially valuable when the machine is used for repeated batches or operated across multiple shifts.

5.5 Flexible Cabinet Configuration

The standard control cabinet is the ZH-K68 desktop cabinet, while the ZHZK-03 vertical cabinet is available as an option. This provides a degree of flexibility for different workshop layouts and operator preferences. A suitable cabinet arrangement can improve visibility, simplify programming access, and help organize the work area around the machine.

6. Manufacturing Strengths and Quality Control

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has specialized in electrical discharge wire cutting and related special processing technologies since 1999. The POOSN brand originated in 2003, and the company later established its own manufacturing operation in Taizhou. Its product portfolio includes medium-speed wire-cut EDM machines, high-speed wire-cut EDM machines, large-taper models, and related special processing equipment.

The company’s manufacturing strength is based on the combination of product development, mechanical processing, electrical integration, assembly, testing, and technical service. This integrated capability is important in EDM manufacturing because performance depends on the coordination of mechanical accuracy, power supply behavior, CNC control, wire transport, filtration, and machine installation.

6.1 Structural Manufacturing

The machine bed and major cast components form the foundation of long-term accuracy. High-rigidity cast iron structures are intended to absorb vibration and provide stable support for the worktable and guide system. Aging treatment and dimensional inspection are important because residual stress or distortion in structural parts can influence alignment and accuracy after assembly.

Precision manufacturing of guideways, lead screws, worktable surfaces, and wire guide assemblies also contributes to performance. These components must be inspected for dimensional consistency, alignment, smooth movement, and correct interaction with the drive system. The goal is not merely to produce individual parts accurately, but to assemble them into a system that maintains geometric relationships throughout the working range.

6.2 Electrical and Control Integration

Electrical discharge equipment requires close coordination between the power supply and motion control system. The discharge energy must be adjusted according to the cutting condition, while axis movement must respond accurately to the programmed path. The manufacturer’s experience in EDM-related technologies supports the development of machines in which the electrical, mechanical, and software systems operate as one production platform.

The company states that its machines undergo positioning accuracy testing and are manufactured according to relevant national standards. The DK-7725 specification references GB/T7926-2015 for machine accuracy. Compliance with an applicable accuracy standard provides a framework for inspection and helps customers establish expectations for machine acceptance and process verification.

6.3 Production Testing

Testing should include more than powering on the machine. A complete verification program may include axis travel, positioning, repeatability, worktable movement, wire transport, discharge stability, flushing, control functions, taper movement, lubrication, and safety-related functions. Long-duration operation can help reveal issues that do not appear during a short factory demonstration.

For customers, factory testing is valuable because it reduces installation risk and provides a reference point for later acceptance. Installation and commissioning at the customer site then confirm leveling, electrical connection, environmental suitability, and process readiness under local conditions.

7. Applications Across Industrial Sectors

7.1 Mold and Die Manufacturing

Mold manufacturing is one of the principal applications for the DK-7725. Mold components often contain hardened steel, narrow openings, intricate contours, and surfaces that must align accurately with other parts. Wire EDM can cut cavities, inserts, punches, stripper components, precision plates, and other profiles after heat treatment.

The machine’s four-axis taper capability is useful for molds that require draft angles or sloped walls. Its capacity for workpieces up to 350 millimeters thick also supports substantial mold components. The ability to achieve fine surface roughness can reduce the amount of manual polishing or secondary finishing required after cutting.

7.2 Precision Machinery

Precision machinery manufacturers can use the DK-7725 for gears, fixtures, templates, precision plates, mechanical profiles, and specialized components. Wire EDM is particularly valuable where conventional milling would create excessive cutting force, require complex tooling, or struggle to produce narrow internal features.

Since the process is based on electrical discharge rather than direct tool contact, it can machine hardened materials without requiring a similarly hard mechanical cutting tool. This can simplify the production route for components that need both heat treatment and accurate contour cutting.

7.3 Electronics and Small Components

Electronic equipment and precision instrument manufacturers often require small parts with narrow slots, fine profiles, and consistent repeatability. The DK-7725 can support the production of conductive components, tooling inserts, precision fixtures, and specialized parts used in electronic assembly and component manufacturing.

7.4 Aerospace and Automotive Components

Aerospace and automotive production frequently requires high-accuracy parts, prototypes, fixtures, forming tools, and components made from difficult or hardened materials. The DK-7725 is most appropriate for small and medium-sized parts within these industries, particularly when complex profiles or fine tolerances make conventional machining inefficient.

For automotive applications, possible uses include precision stamping components, mold inserts, forming dies, cutting tools, and prototype parts. In aerospace-related work, the machine may be used for specialized conductive components and tooling, subject to the customer’s material, certification, inspection, and process-control requirements.

8. Installation and Operating Environment

High-precision wire EDM requires a stable installation environment. The machine should be placed on an appropriately prepared foundation and leveled according to the manufacturer’s instructions. Floor vibration, nearby heavy machinery, temperature fluctuation, dust, electrical interference, and inadequate grounding can all influence performance.

A location with minimal temperature variation is recommended because thermal expansion can affect dimensional accuracy. Strong vibration sources should be avoided, particularly where large presses, forging machines, or heavy transport equipment operate nearby. Proper grounding is essential for the stable operation of the control and discharge systems.

The electrical supply should match the machine requirement of three-phase 380 volts plus or minus 10 percent, subject to local electrical standards and installation regulations. Customers should confirm the required current rating, protective devices, cable specifications, grounding arrangements, and local compliance requirements before shipment and installation.

8.1 Workpiece Preparation

Before cutting, the workpiece should be cleaned and securely clamped. The reference surfaces should be suitable for accurate positioning, and the workpiece should be supported to minimize vibration or movement. If the part is especially heavy or has an irregular shape, additional support may be necessary even when the total mass is within the rated load.

Electrical conductivity is required because wire EDM removes material through electrical discharge. Steel, stainless steel, aluminum, copper, cemented carbide, and other conductive materials can generally be processed, although each material requires appropriate pulse conditions, wire speed, flushing, and cutting parameters.

9. Maintenance and Service Life

Routine maintenance has a direct effect on machine reliability, accuracy, and operating cost. A maintenance schedule should include inspection of wire guides, guide wheels, conductive blocks, filters, pumps, working fluid, lubrication points, electrical connections, and machine alignment.

Wire guides and guide wheels gradually wear during operation. Wear can change the wire position and negatively influence taper or contour accuracy. Operators should inspect these parts regularly and replace them when they no longer meet the required condition. Conductive blocks should also be checked because poor contact can cause unstable discharge and abnormal wire wear.

The working fluid must remain sufficiently clean. Contaminated or improperly conditioned fluid can reduce flushing efficiency, affect discharge stability, increase the risk of short circuits, and reduce surface quality. Filters should be cleaned or replaced according to operating conditions, and fluid circulation should be checked for adequate flow.

The automatic lubrication system reduces the need for frequent manual lubrication, but operators should still verify lubricant levels, inspect lubrication lines, and confirm that moving components receive the intended supply. Clean machine surfaces and protected guideways also help prevent abrasive contamination from affecting movement.

To extend molybdenum wire life, users should maintain correct tension, keep guide components clean, monitor the wire path, and adjust discharge conditions to the workpiece material and thickness. Excessive energy, poor flushing, worn guides, and incorrect conductive block positions can all increase wire wear or create wire breakage.

9.1 Service Support

The manufacturer provides installation and commissioning support, including machine leveling and accuracy testing. Operator training can cover CAD modeling, program preparation, machine operation, cutting parameter selection, troubleshooting, and maintenance. This type of training helps reduce the learning curve and enables users to obtain more consistent results.

Technical support and spare-parts availability are also important considerations when selecting a wire EDM supplier. A modular design can make circuit boards, transmission components, and other service parts easier to inspect and replace. Faster access to technical guidance and replacement parts can reduce downtime over the machine’s service life.

10. Selecting the Correct Model

The DK-7725 is intended for small and medium-sized parts, precision mold processing, and high-accuracy small-batch or medium-batch production. It is an appropriate choice when the required travel is within 250 by 320 millimeters, the maximum cutting thickness is within 350 millimeters, and the worktable load does not exceed 250 kg.

The DK-7735 provides a larger worktable and greater X/Y travel for medium-sized components and molds. The DK-7745 and DK-7745F are intended for larger workpieces, larger molds, and applications requiring additional workspace and load capacity. The broader DK-77 family also includes larger models such as the DK-7755F, DK-7763F, DK-7780F, and DK-77100F for increasingly large components and heavy-duty work.

Production requirement	Recommended direction	Reason
Small and medium precision parts	DK-7725	Compact footprint, 250 x 320 mm X/Y travel, and 250 kg load capacity
Medium-sized components	DK-7735	Larger 350 x 450 mm travel and 300 kg load capacity
Large molds and components	DK-7745	450 x 550 mm travel and 400 kg load capacity
Large or heavy precision workpieces	DK-7745F or larger	Additional worktable space and increased load capacity
Very large industrial workpieces	DK-7755F and above	Designed for extended travel, thickness, and worktable loading requirements

Model selection should be based on the complete production requirement rather than maximum travel alone. Customers should consider workpiece envelope, thickness, weight, taper requirement, surface-finish target, fixture dimensions, available floor space, loading method, power supply, and future production plans.

11. Cost-Effectiveness and Production Planning

The value of a wire EDM machine is determined by more than its purchase price. Production efficiency, utilization rate, wire consumption, maintenance requirements, repeatability, operator workload, and service support all influence the total cost of ownership.

The DK-7725 can contribute to cost-effectiveness in several ways. Its high-speed cutting capability can reduce rough-cutting time. Four-axis control can reduce the number of setups and secondary operations. Automatic lubrication and stable mechanical design can lower routine intervention. The ability to machine hardened conductive materials can also simplify the production route by reducing the need for separate tooling or post-hardening corrective operations.

For small and medium-sized manufacturers, the compact machine size can help control floor-space requirements. A machine that fits efficiently into the workshop may allow the company to add wire EDM capacity without extensive building modification. The 250 kg table load provides useful capability without the cost and space requirements of a much larger industrial model.

To achieve the best return, users should prepare standardized cutting conditions for frequently processed materials and thicknesses. They should also track cycle time, wire consumption, filter life, unplanned downtime, accuracy results, and rework. This information can identify process improvements and help establish realistic production schedules.

12. Recommended Production Workflow

A reliable workflow begins with reviewing the part drawing and determining whether the geometry, material, thickness, taper, and tolerance are suitable for wire EDM. The operator should then select a workholding method that supports the part without obstructing the wire path or flushing flow.

The next stage is program preparation. The contour, start point, cutting direction, offset, taper, roughing strategy, finishing passes, and wire conditions should be verified before machining. For complex workpieces, simulation or careful path review can help identify collisions, unsuitable lead-ins, and potential corner problems.

After the workpiece is installed, the operator should check alignment, wire threading, guide condition, dielectric circulation, and electrical settings. The initial cut should be monitored for discharge stability, flushing behavior, wire vibration, and unexpected temperature or fluid changes.

During production, the operator should observe the machine rather than relying solely on automatic operation. Abnormal sound, unstable discharge, excessive wire wear, poor flushing, or changes in cutting speed can indicate a developing problem. Early intervention can prevent wire breakage and protect the workpiece.

After cutting, the part should be inspected using suitable dimensional and surface-finish measuring equipment. Results should be compared with the drawing and process requirements. Any deviation should be evaluated in relation to workholding, wire alignment, machine calibration, thermal conditions, material behavior, and cutting parameters.

13. Frequently Asked Questions

Q1: What is the primary application of the DK-7725?

The DK-7725 is designed for precision wire-cut EDM work involving small and medium-sized conductive workpieces. Typical applications include mold inserts, stamping dies, precision mechanical parts, electronic components, fixtures, prototypes, and specialized automotive or aerospace tooling.

Q2: What accuracy can the machine achieve?

The supplied technical information states a linear cutting accuracy of 0.005 millimeters and a taper accuracy of 0.015 millimeters. Actual production accuracy depends on material, thickness, programming, machine condition, temperature, workpiece setup, wire alignment, and cutting parameters. Final acceptance should be based on a documented test under agreed conditions.

Q3: What materials can be processed?

The machine can process electrically conductive materials such as steel, stainless steel, aluminum, copper, quenched steel, cemented carbide, and other suitable conductive alloys. Cutting conditions should be adapted to the electrical and thermal characteristics of each material.

Q4: What is the maximum workpiece thickness?

The maximum cutting thickness listed for the DK-7725 is 350 millimeters. The practical result also depends on workpiece geometry, flushing, wire condition, material, required accuracy, and the selected cutting strategy.

Q5: What does four-axis linkage mean?

Four-axis linkage means that the X, Y, U, and V axes can move in a coordinated manner. X and Y control the main worktable position, while U and V control the corresponding upper and lower wire positions. This makes it possible to cut tapered profiles and specialized upper and lower contours.

Q6: Can the DK-7725 be used for mass production?

Yes. Its high cutting efficiency, automatic lubrication, stable wire transport, CNC control, and repeatable four-axis operation make it suitable for repeated production. It is particularly appropriate for small- to medium-batch production and for manufacturers that require consistent precision across multiple workpieces.

Q7: What surface finish can be expected?

The stated optimal surface roughness is Ra 2.5 micrometers or better. The actual result depends on the number of passes, material, thickness, discharge parameters, wire condition, flushing, and machine maintenance. Applications requiring a specific finish should be validated through sample cutting.

Q8: Is the machine difficult to maintain?

The machine is designed with automatic lubrication and a relatively straightforward structure to reduce routine intervention. Nevertheless, regular inspection of the wire guides, guide wheels, conductive blocks, filters, working fluid, pumps, lubrication system, and electrical components remains necessary.

Q9: Which control cabinet options are available?

The standard configuration uses a ZH-K68 desktop cabinet. A ZHZK-03 vertical cabinet is available as an optional configuration. The preferred cabinet depends on workshop layout, operator position, installation space, and user preference.

Q10: What installation conditions are recommended?

The machine should be installed on a suitable foundation in an environment with limited temperature fluctuation, low vibration, appropriate grounding, and protection from excessive dust or electrical interference. The power supply should meet the specified three-phase 380-volt requirement within the permitted tolerance.

Q11: How can wire service life be extended?

Maintain correct wire tension, keep guide wheels and guide nozzles clean, inspect worn components, maintain clean working fluid, adjust conductive blocks correctly, and select discharge conditions appropriate to the material and thickness. These measures help reduce abnormal wear and wire breakage.

Q12: Does the manufacturer provide technical support?

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. provides installation, commissioning, operator training, maintenance guidance, technical support, and spare-parts assistance. Support can help customers establish stable operating procedures and reduce avoidable downtime.

Conclusion

The DK-7725 CNC High-Speed Wire EDM Machine is a balanced solution for manufacturers seeking high-precision conductive material processing in a compact and productive platform. Its principal strengths include four-axis linkage, a 250 kg worktable load, up to 350 millimeters of cutting thickness, a maximum cutting efficiency of 10,000 to 16,000 square millimeters per hour, controlled taper cutting, and a stated optimal surface roughness of Ra 2.5 micrometers or better.

Compared with basic two-axis or lower-capacity equipment, the DK-7725 offers greater flexibility for tapered geometries, heavier workpieces, and complex mold components. Its rigid cast structure, high-frequency pulse control, constant-tension wire transport, automatic lubrication, filtration and cooling systems, and CNC path management are intended to support stable operation and consistent production results.

The machine is especially suitable for mold manufacturing, precision machinery, electronic components, automotive tooling, aerospace-related components, and other applications requiring accurate profiles in conductive materials. Its relatively compact dimensions make it practical for workshops that need advanced wire EDM capability without selecting a large-format machine.

The performance of any wire EDM system ultimately depends on the complete manufacturing process. Proper installation, accurate leveling, suitable environmental conditions, correct workholding, disciplined maintenance, operator training, and verified cutting parameters are essential. With these factors properly managed, the DK-7725 can help manufacturers shorten machining time, reduce secondary operations, improve production consistency, and strengthen their overall precision manufacturing capability.

References

1. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-7725 High-Speed Wire EDM Technical Information and Product Specifications.

2. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-77 Series High-Speed Wire-Cut EDM Model Selection Information.

3. GB/T7926-2015, Machine Tools: Inspection of the Accuracy of Wire-Cut Electrical Discharge Machines.

4. General principles of wire electrical discharge machining, pulse power control, dielectric flushing, and electrode-wire transport.

5. Industrial guidelines for CNC machine installation, grounding, environmental control, preventive maintenance, and dimensional verification.
