High-Performance Medium-Speed Wire-Cut EDM for Large and Heavy Precision Workpieces

Modern mold manufacturing, toolmaking, automotive production, aerospace machining, and heavy-equipment manufacturing increasingly require a wire-cut electrical discharge machining system that can combine size, load capacity, accuracy, productivity, and dependable operation. Large conductive workpieces are often difficult to process with conventional cutting tools because their hardness, complex profiles, deep sections, and narrow internal features create significant mechanical and thermal challenges. A properly configured wire-cut EDM machine can overcome these limitations by using controlled electrical discharges rather than direct mechanical contact.

The DK50BC CNC Medium-Speed Wire EDM Machine is designed for this demanding production environment. It belongs to a high-performance medium-speed wire-cut EDM series intended for large molds, thick components, heavy mechanical parts, and precision profiles. With a maximum cutting thickness of 650 mm, a maximum worktable load of 600 kg, a 500 × 700 mm X/Y travel range, and four-axis X, Y, U, and V linkage, the machine provides a practical balance between large-format machining capability and economical operation.

Its design combines a rigid mechanical structure, controlled wire transport, multi-pass machining, high-efficiency flushing, CNC interpolation, and flexible control-system options. These features allow the DK50BC to serve applications that may exceed the practical capacity of smaller medium-speed machines while avoiding the cost and operating complexity associated with some imported precision wire EDM systems.

DK50BC CNC Medium-Speed Wire EDM Machine (600kg Load, 650mm Thickness)

1. Product Positioning and Industrial Role

The DK50BC is positioned between conventional high-speed wire-cut machines and higher-cost slow-wire EDM equipment. Traditional high-speed machines are valued for their relatively simple operation, strong production economy, and suitability for rough cutting or general-purpose work. However, they may be limited when users require improved surface finish, stable dimensional control, multiple finishing passes, or the processing of particularly thick workpieces.

Slow-wire EDM machines can deliver excellent surface quality and highly refined machining performance, but their purchase price, consumable costs, maintenance requirements, and process cycle times may be unsuitable for many production environments. The DK50BC addresses this gap by applying medium-speed wire-cut technology with multi-cut strategies, improved mechanical guidance, controlled wire tension, and a CNC system capable of supporting precision-oriented machining.

This positioning makes the machine suitable for manufacturers that need more than basic blanking but do not necessarily require the full cost structure of an imported slow-wire platform. It can be used for roughing, semi-finishing, finishing, and repeated production operations, depending on the material, geometry, tolerance, surface-quality requirement, control cabinet, and selected process parameters.

The machine is particularly appropriate for workpieces that are large, heavy, thick, or geometrically complex. The 600 kg worktable load supports substantial molds and mechanical components, while the 650 mm maximum cutting thickness gives the DK50BC a significant advantage for deep sections. Its worktable and processing-tank dimensions are also designed to accommodate larger parts than the smaller DK35BC and DK45BC models in the same family.

2. Main Technical Specifications

The following specifications describe the standard DK50BC configuration and the shared platform characteristics of the DK-BC series. Actual performance may vary according to workpiece material, thickness, electrical parameters, wire condition, flushing settings, control cabinet, programming strategy, and environmental conditions.

Parameter	DK50BC Specification
Worktable size	740 × 1060 mm
X/Y travel	500 × 700 mm
Processing slot size	740 × 1100 mm
Maximum cutting thickness	650 mm
Maximum worktable load	600 kg
U/V travel	60 × 60 mm
Maximum standard taper	±6°/80 mm
Standard electrode wire diameter	0.18 mm with wire guide
Wire speed	1–11 m/s, frequency controlled
Maximum wire storage length	Approximately 350 m
Maximum cutting efficiency	10,000–16,000 mm²/h
Best stated surface roughness	Ra ≤ 2.5 μm under specified conditions
Controlled axes	X, Y, U, and V four-axis linkage
Programming system	X8 or AUTOCUT
Standard control cabinet	ZHZK-03
Optional control cabinet	ZHZ-09G
Electrical capacity	2.5 KVA
Maximum processing current	6 A
Power supply	3N 380 V ±10%
Machine weight	Approximately 2,000 kg
Overall host dimensions	Approximately 2200 × 1865 × 2000 mm

The product information also identifies higher precision configurations and optional feedback arrangements for applications requiring tighter positioning control. Some technical descriptions state linear accuracy of 0.005 mm, while advanced series information identifies positioning accuracy of approximately 0.002 mm under specified test and configuration conditions. Buyers should therefore confirm the final guaranteed accuracy, test standard, machine configuration, and acceptance method in the technical agreement before ordering.

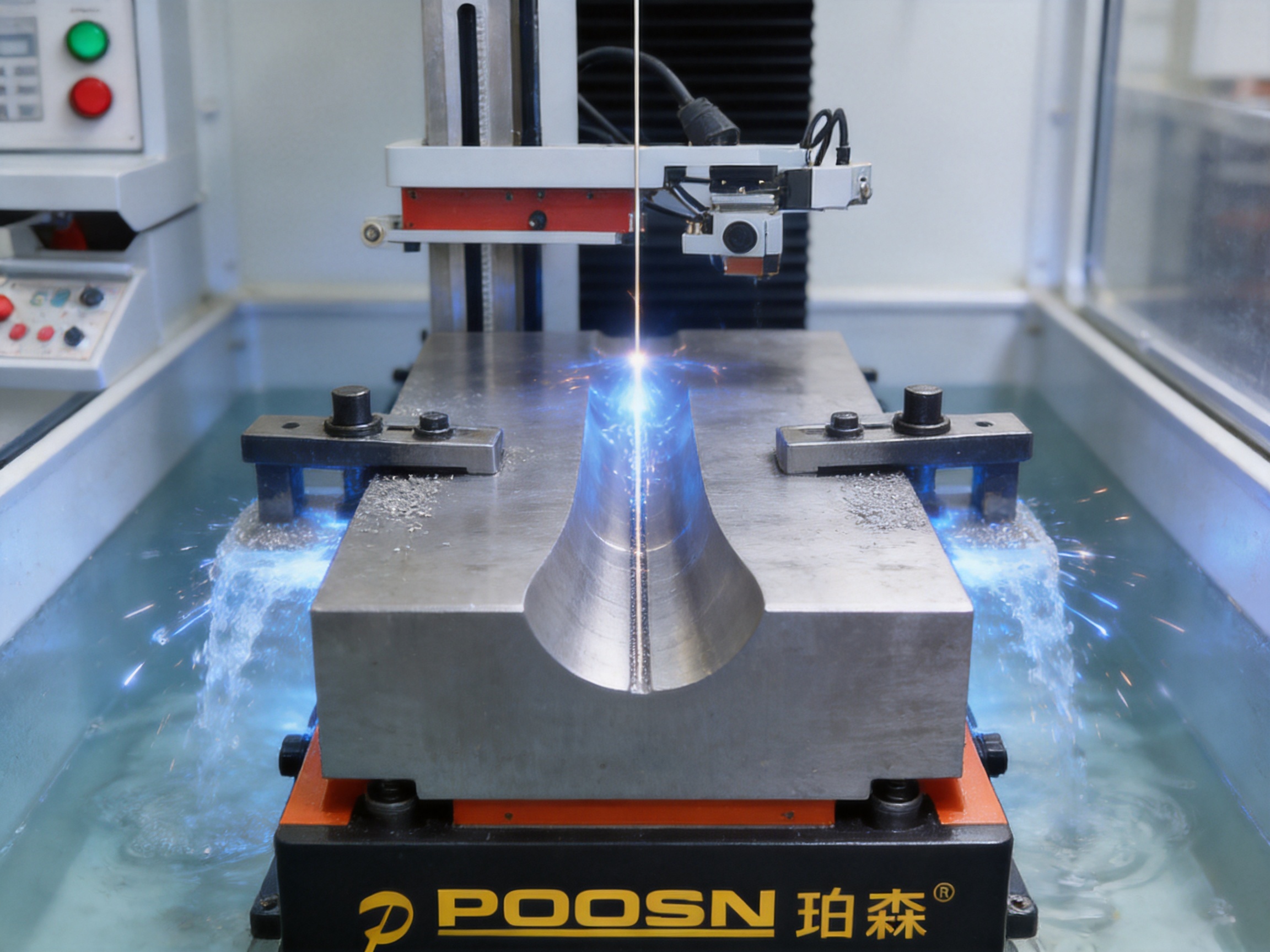

3. Large Cutting Capacity for Thick Workpieces

One of the most important advantages of the DK50BC is its ability to process workpieces up to 650 mm thick. This capacity makes it suitable for thick mold plates, large punch and die components, heavy mechanical parts, conductive blocks, and tall profiles that cannot be conveniently processed on smaller wire-cut machines.

Thick-workpiece machining creates several technical difficulties. The wire must remain stable over a long cutting distance, the dielectric fluid must remove debris from a deep kerf, the discharge energy must remain controlled throughout the cut, and the machine structure must resist deflection. If the wire vibrates or deviates from its intended path, the resulting part may exhibit taper error, poor verticality, roughness variation, or dimensional inconsistency between the upper and lower sections.

The DK50BC addresses these challenges through a rigid wire frame, controlled wire transport, U/V-axis correction, and a flushing arrangement designed to deliver working fluid to the cutting zone. The machine can also use multi-pass strategies to correct the effects of rough cutting and improve the final contour. For particularly demanding thick sections, the process should be planned with suitable wire tension, flushing pressure, pulse parameters, cutting speed, and finishing allowances.

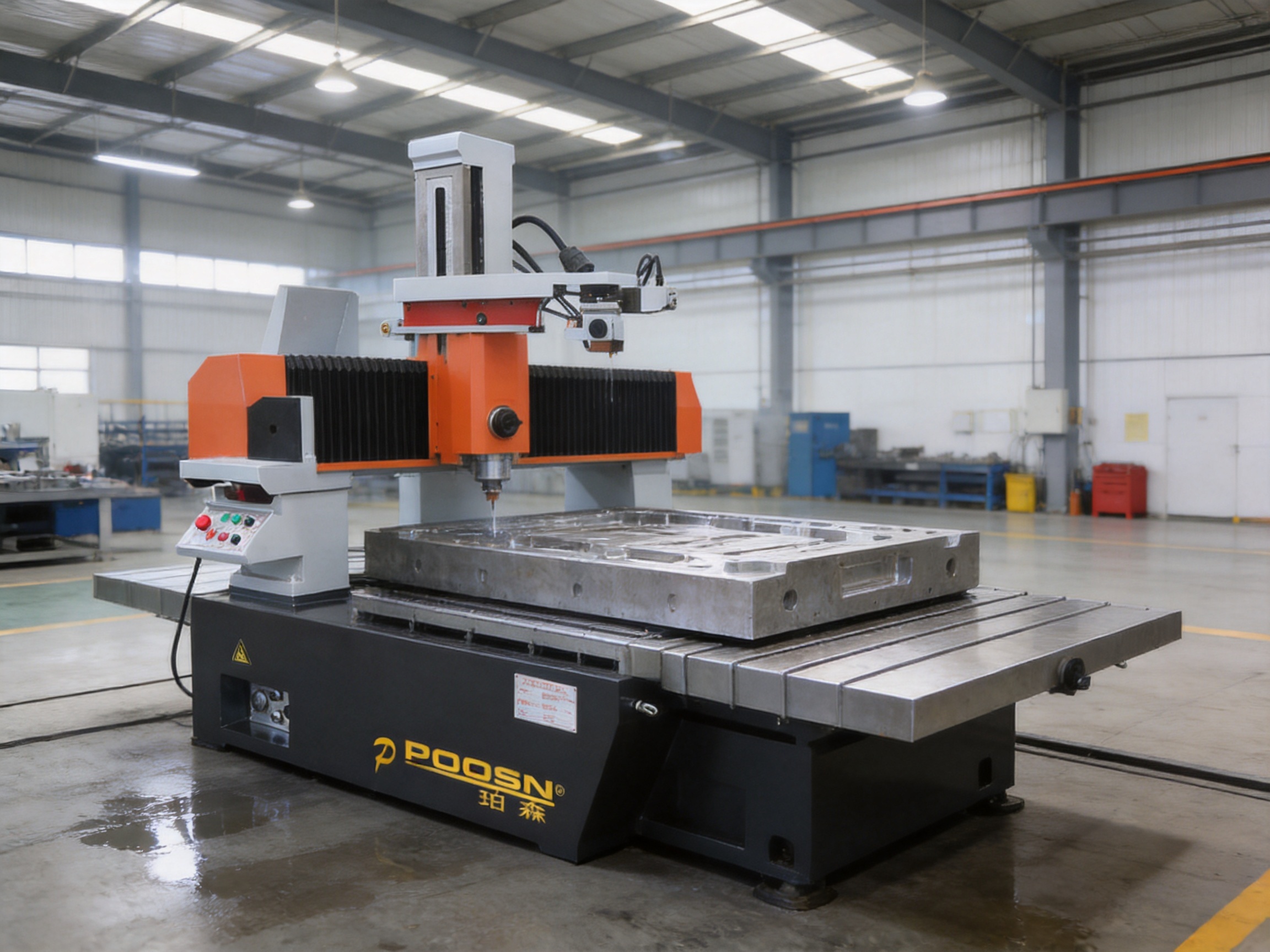

The 600 kg worktable load is equally important. Large workpieces may be difficult to move, position, and support, especially when they include heavy mold bases or thick steel sections. A machine with insufficient load capacity may experience positioning problems, table deformation, or restrictions on the size of the workpiece that can be safely installed. The DK50BC provides a stronger platform for heavy-duty production and reduces the need to divide large components into smaller sections.

4. Rigid Mechanical Construction

Machine rigidity is the foundation of stable wire EDM performance. The DK50BC uses a heavy cast-iron machine structure designed to support the worktable, wire frame, dielectric system, and moving axes during extended production. The supplied technical description emphasizes aging treatment intended to relieve internal stresses and preserve geometric stability during operation.

A rigid base helps reduce the influence of vibration, thermal changes, table loading, and wire-frame movement. This is especially valuable during long cutting cycles, when even small structural deviations can accumulate into measurable dimensional errors. Large-format machining demands greater attention to stiffness because the workpiece, travel distance, and cutting depth are all greater than those encountered in small-part processing.

The machine is also specified with high-precision linear guide support. Linear guides can provide smooth axis movement, reduced friction, and repeatable positioning when properly installed, lubricated, and protected. Compared with sliding guide arrangements commonly associated with simpler high-speed wire-cut machines, linear guides can offer better dynamic response and more consistent movement for precision mold and component work.

The transmission structure is described as using high-precision ball screws and linear rolling guides. This combination supports controlled feed motion and helps the CNC system maintain the programmed path. An optional linear-scale feedback system is available for applications that require enhanced position verification or improved repeatability.

5. Controlled Wire Transport and Cutting Stability

The electrode wire is a critical element in any wire-cut EDM process. Its movement, tension, speed, alignment, and condition directly influence surface finish, contour accuracy, verticality, and the risk of wire breakage. The DK50BC uses a wire-feeding system with frequency-controlled wire speed from approximately 1 to 11 m/s and a maximum wire storage length of about 350 m.

The machine is supplied for use with 0.18 mm electrode wire together with a guide device. The wire path incorporates waterproof guide wheels and guide components intended to maintain stable transport through the cutting zone. The supplied configuration also identifies easy wire-threading guide-wheel arrangements, which can reduce setup time when the operator changes wire or prepares a new workpiece.

The product design places emphasis on constant wire tension and compensation. During thick-section cutting, the wire may experience lag, vibration, and changing discharge forces. A controlled tension system can reduce these effects and support better verticality between the upper and lower portions of the workpiece. When taper cutting is required, the U/V axes coordinate the guide positions to produce the programmed angular profile.

Wire transport stability also affects operating economy. Excessive vibration, unstable discharge, and repeated wire breakage can lower productivity and increase the consumption of wire, guide components, and dielectric fluid. By combining controlled feed, suitable guide geometry, adaptive electrical parameters, and appropriate flushing, the DK50BC can help users maintain a more predictable process.

6. CNC Control and Four-Axis Interpolation

The DK50BC uses X8 or AUTOCUT programming control systems, with the ZHZK-03 control cabinet identified as the standard configuration and the ZHZ-09G available as an option. The system coordinates the X and Y worktable axes with the U and V taper axes, forming a four-axis linkage arrangement.

Four-axis control is essential for taper machining and for producing profiles in which the upper and lower contours are not identical. It allows the machine to compensate for programmed angular requirements and to coordinate wire-guide movement with worktable travel. This capability is useful for dies, punches, forming tools, extrusion components, angled inserts, and other parts that require controlled taper geometry.

The control system is intended to support graphical programming, automatic edge-finding, centering, multi-pass cutting, discharge monitoring, and data transfer through common industrial connections, depending on the selected configuration. Compatibility with mainstream CAD/CAM-generated geometry can simplify the preparation of complex contours and reduce manual programming work.

Multi-pass routines can be arranged around roughing, semi-finishing, and finishing operations. A rough pass removes the majority of material efficiently. Subsequent passes reduce the altered surface layer, correct minor dimensional deviations, and improve the final surface condition. The actual number of passes should be determined according to the material, required tolerance, target roughness, thickness, and production schedule.

Adaptive control is also valuable in preventing unstable cutting. The system can monitor discharge behavior and adjust feed or electrical conditions when the cutting gap becomes less stable. Although the operator remains responsible for selecting appropriate technology parameters, real-time monitoring can reduce the likelihood of severe wire breakage, short circuits, and inconsistent machining.

7. Cutting Efficiency and Multi-Pass Machining

The DK50BC has a stated maximum cutting efficiency of approximately 10,000 to 16,000 mm²/h. This range provides a useful reference for production planning, but it should not be treated as a universal result for every material or geometry. Cutting efficiency depends on thickness, conductivity, flushing, wire condition, pulse energy, required surface finish, taper, corner geometry, and the number of finishing passes.

For rough cutting and high-volume blanking, the machine can be configured to prioritize material removal. For precision mold components, the process can use a rough cut followed by one or more trim cuts. Multi-pass operation generally increases total cycle time, but it can deliver better dimensional stability and surface quality than a single rough pass.

The DK-BC platform is described as supporting one to five passes, depending on the control configuration and process requirements. This gives manufacturers flexibility to select a process strategy rather than forcing every job into a single operating mode. Simple profiles can be completed economically, while high-value molds can receive additional finishing passes when quality requirements justify the extra time.

Compared with a basic high-speed wire-cut machine that is primarily used for single-pass rough cutting, the DK50BC offers greater control over finishing. Compared with a slow-wire EDM machine, it may provide lower acquisition and consumable costs while still producing a practical finish for a wide range of industrial parts. The best choice depends on the customer’s required tolerance, roughness, production volume, and total cost of ownership.

8. Surface Quality and Dimensional Performance

The standard technical data lists an optimal surface roughness of Ra ≤ 2.5 μm under appropriate process conditions. Additional product information describes more advanced precision configurations and surface results in the approximate Ra 0.8–1.2 μm range. These values depend on the number of cuts, material, thickness, pulse parameters, wire condition, dielectric quality, flushing stability, and machine configuration.

Electrical discharge machining produces a thermally affected layer on the machined surface. A rough cut may leave a comparatively more pronounced recast layer and a rougher texture. Finishing passes use lower discharge energy and carefully controlled parameters to remove or reduce this layer. The DK50BC’s multi-pass capability is therefore important for customers who need more than rapid material removal.

Dimensional performance is supported by the mechanical structure, linear guides, ball-screw transmission, CNC interpolation, wire-tension control, and optional scale feedback. The listed processing accuracy standard is GB/T 7926-2015. Customers requiring a specific tolerance should request a test-cut procedure using their own material, thickness, geometry, and inspection method.

For workpieces requiring tolerances below several micrometers, environmental control becomes increasingly important. Temperature variation can influence machine geometry, dielectric conditions, workpiece size, and wire behavior. The DK50BC is designed for general workshop operation within a stated range of approximately 5–40°C, but temperature-controlled installation is recommended for the highest precision requirements.

9. Taper Cutting Capability

The standard U/V taper device provides approximately 60 × 60 mm of travel and a maximum taper specification of ±6°/80 mm. This capability is suitable for many punch, die, mold, forming, and component applications where the sidewall must be angled rather than perfectly vertical.

Taper machining requires coordinated movement of the upper and lower wire guides. The control system must account for the relationship between the programmed profile, workpiece thickness, taper angle, and guide displacement. Stable wire tension and accurate U/V positioning are essential to prevent deviations between the upper and lower contours.

For applications requiring larger taper angles, an optional large-taper configuration is available based on a DKD-style wire-frame arrangement. Product information indicates that taper angles up to approximately ±30° may be available as an optional engineering configuration. Because large-angle cutting depends strongly on the part geometry and thickness, users should provide drawings and process requirements for technical confirmation before ordering.

Typical taper applications include extrusion dies, angled punches, forming inserts, sloped mold cavities, relief angles, and components with controlled upper-to-lower profile variation. When a job combines thick material and a large taper, trial cutting and engineering validation are especially important.

10. Dielectric Fluid, Flushing, and Environmental Design

Efficient flushing is necessary to remove eroded particles from the cutting gap. If debris remains in the kerf, secondary discharges can occur, causing unstable cutting, surface burns, wire breakage, and dimensional errors. The DK50BC uses a dielectric-fluid system with upper and lower flushing arrangements intended to keep the cutting zone clean.

The machine can be equipped with a high-pressure water tank as an option. Stronger flushing may be particularly useful for thick workpieces, deep cavities, narrow slots, and materials that generate a high volume of eroded particles. The correct pressure must be selected carefully because excessive pressure can deflect the wire, while insufficient pressure may fail to evacuate debris.

The waterproof machine cover helps contain dielectric fluid and improves the working environment. The cover also protects machine components from splashing and supports more consistent housekeeping. The product information identifies an eco-friendly waterproof cover as part of the standard machine performance and configuration, while certain fully enclosed shield arrangements may be optional depending on the final specification.

Water-based dielectric fluid should be monitored regularly for conductivity, contamination, temperature, and chemical condition. Filters, pumps, guide components, and the ion-exchange system require routine inspection. Good fluid management improves cutting stability, reduces surface contamination, and helps extend the service life of consumable components.

11. Energy Efficiency and Operating Economy

The DK50BC is designed around a 2.5 KVA electrical capacity and a maximum processing current of 6 A. Its current-control and drive-system optimization are intended to reduce unnecessary energy use while maintaining stable machining performance. Energy consumption will vary according to cutting conditions, pump operation, control cabinet, workpiece material, and cycle time.

Medium-speed wire-cut EDM can offer an attractive operating-cost profile for manufacturers that need repeatable precision without the full expense of slow-wire technology. The electrode wire, guide wheels, nozzles, dielectric fluid, filters, and resin are relatively accessible consumables. Product information estimates that consumable costs can be substantially lower than those associated with imported premium systems, although actual costs depend on local prices, operating hours, and maintenance practices.

Typical service items include molybdenum wire, guide wheels, upper and lower guide nozzles, dielectric fluid, filters, and ion-exchange resin. Wire life may range from approximately 40 to 80 continuous operating hours under stated conditions, while guide wheels and nozzles require replacement according to wear and cutting quality. These are planning estimates rather than guaranteed replacement intervals.

Consumable or Service Item	Indicative Service Interval	Factors Affecting Life
Molybdenum wire	Approximately 40–80 continuous hours	Current, tension, material, thickness, vibration, and wire speed
Guide wheels	Approximately 6–12 months	Operating hours, contamination, alignment, and wire wear
Guide nozzles	Approximately 3–6 months	Flushing pressure, particle contamination, and contact wear
Water-based dielectric fluid	Approximately every 2–3 months	Workload, filtration, conductivity, and contamination
Ion-exchange resin	Approximately every 3–6 months	Water quality, conductivity, and cutting volume

12. Application Advantages

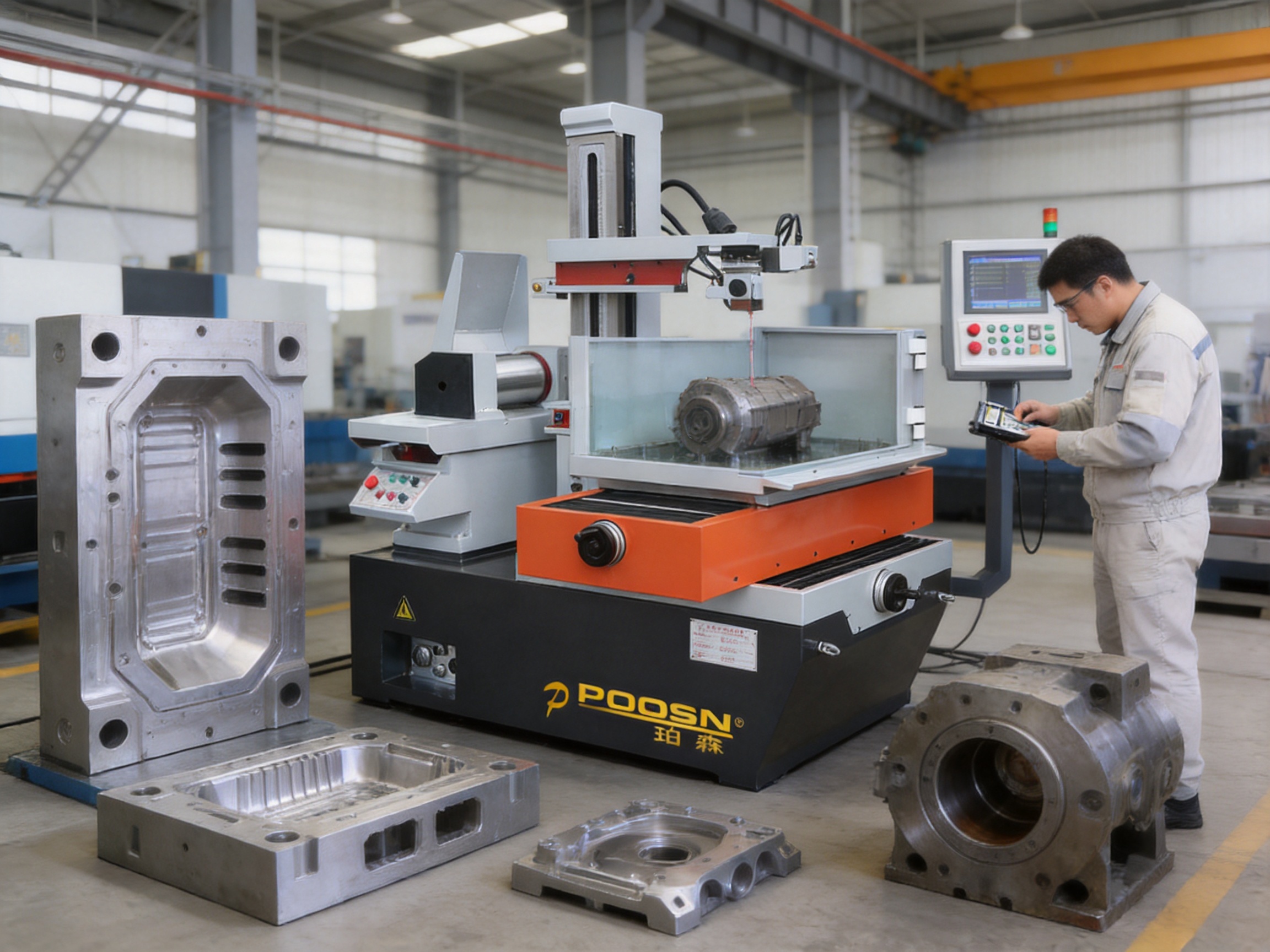

Precision Mold Manufacturing

The DK50BC is well suited to large metal and plastic molds, including mold inserts, cavity plates, punches, dies, and complex profile components. Its combination of thick-cutting capacity, four-axis taper control, multi-pass machining, and a large worktable provides flexibility for both mold prototypes and production tooling.

For mold manufacturers, the ability to process hardened tool steel without direct cutting pressure is a major advantage. The machine can create narrow slots, internal contours, sharp profile transitions, and complex cavities that may be difficult to produce after hardening using conventional milling or sawing.

Heavy Machinery Components

Large mechanical parts often require internal openings, keyways, slots, shaped profiles, and precise separation cuts. The 600 kg load capacity allows the machine to accommodate heavier components, while the 650 mm cutting thickness supports deep sections. The non-contact cutting process is useful when mechanical forces must be minimized or when the material is too hard for conventional tooling.

Automotive Tooling

Automotive stamping dies, forming tools, trim tools, and replacement inserts frequently require repeatable profiles and robust production capability. The DK50BC can support medium- and large-sized tooling operations, especially when the manufacturer needs a machine that can switch between rough cutting and precision finishing.

Aerospace and High-Performance Materials

Conductive aerospace alloys, hardened steels, titanium alloys, nickel-based alloys, and other difficult materials can be processed by EDM because hardness has less influence on the cutting mechanism than it does in conventional machining. The process still requires material-specific parameters and careful thermal control, but the machine provides a practical platform for complex conductive components.

Conductive Carbide and Tool Blanks

Cemented carbide, PCD, CBN tool blanks, and other conductive hard materials may be processed with wire EDM. The machine can produce precise profiles while reducing the mechanical cutting forces that might cause chipping or premature tool wear during conventional machining. Process development should account for conductivity, binder content, thickness, desired edge quality, and thermal effects.

13. Comparison with Other Machine Categories

The DK50BC should be evaluated according to the customer’s complete production requirements rather than by speed alone. A high-speed wire-cut machine may be sufficient for rough blanking and simple profiles. A slow-wire machine may be preferable for extremely tight tolerances, superior surface quality, automatic threading, and demanding unattended production. The DK50BC provides a middle path for customers seeking large workpiece capacity, multi-pass finishing, and controlled operating cost.

Evaluation Area	DK50BC Medium-Speed WEDM	Basic High-Speed WEDM	Premium Slow-Wire WEDM
Large workpiece capacity	Strong, with 650 mm thickness and 600 kg load	Depends on model; often oriented toward general production	Available, but may involve higher investment
Surface finishing	Multi-pass finishing supported	Generally stronger in roughing and standard cuts	Usually excellent with highly refined finishing
Operating cost	Moderate and economical for many applications	Generally low	Usually higher
Taper cutting	Standard ±6°/80 mm; larger options available	Model-dependent	Usually advanced
Guide system	High-precision linear guide support	Often sliding-guide based	Precision guide systems
Best production role	Large molds, thick parts, precision general production	Rough cutting and economical blanking	High-end precision and unattended finishing

Compared with other models in the DK-BC family, the DK50BC is intended for larger and heavier workpieces than the DK35BC and DK45BC. The DK60BC offers still greater capacity, with approximately 600 × 800 mm X/Y travel, 800 mm maximum cutting thickness, and 800 kg maximum worktable load. Customers should select the smallest model that safely accommodates their largest routine workpiece, while allowing sufficient space for fixturing, flushing, and future production needs.

14. Model Selection within the Series

Model	X/Y Travel	Maximum Thickness	Maximum Load	Typical Application
DK35BC	350 × 450 mm	450 mm	300 kg	Small and medium precision parts and molds
DK45BC	450 × 600 mm	450 mm	400 kg	Medium molds and mechanical components
DK50BC	500 × 700 mm	650 mm	600 kg	Large molds and thick heavy workpieces
DK60BC	600 × 800 mm	800 mm	800 kg	Extra-large molds and heavy industrial parts

The DK50BC is the appropriate choice when workpieces exceed the practical envelope of the DK45BC but do not require the maximum capacity of the DK60BC. Its 600 kg load rating is particularly valuable when the workpiece is heavy but the required X/Y travel remains within 500 × 700 mm.

Users who frequently process parts thicker than 400 mm should consider the DK50BC or DK60BC rather than selecting a smaller model solely on the basis of table travel. Deep cutting places additional demands on wire stability, flushing, and frame rigidity. A machine with additional capacity can provide more process margin and reduce the need for compromises.

15. Manufacturing Quality and Factory Strengths

The manufacturer, Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., specializes in electrical discharge machining, wire-cut EDM, and related special-processing equipment. Its product lines include the PS-C medium-speed series, DK77-BC medium-speed models, DK77-A and DK77-B high-speed models, and DK77-D large-taper machines.

The company’s manufacturing approach is based on mechanical design, in-house assembly, testing, positioning-accuracy inspection, and product configuration for different customer applications. Its stated technical strengths include advanced processing equipment, comprehensive testing methods, rational product design, and manufacturing according to national standards.

Since 1999, the company has focused on electrical-discharge wire cutting. The POOSN brand was introduced in 2003, and the company later developed its own manufacturing facility following continued market expansion. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. was established in 2017 with registered capital of 60 million yuan. The company has also reported patent activity, high-tech enterprise recognition, and continued development of CNC machine-tool technology.

A specialized production history is important when evaluating a wire EDM supplier. Wire-cut machines require coordinated knowledge of casting, mechanical accuracy, guide systems, electrical discharge technology, control software, dielectric circulation, and application support. Experience in only one of these areas is not sufficient to deliver a stable machine. The company’s focus on EDM equipment supports a more integrated approach to product development.

Mechanical and Dimensional Testing

Before delivery, the machine is described as undergoing positioning-accuracy testing. Product information also refers to laser-interferometer calibration, multi-point compensation, and circularity evaluation for precision configurations. These procedures are intended to verify axis movement and compensate for geometric deviations before shipment.

Load and Reliability Evaluation

Large machines must be evaluated not only at idle but also under representative operating conditions. Environmental simulation and continuous high-load testing can help identify thermal, electrical, and mechanical issues before delivery. Such testing is particularly relevant to a machine rated for 600 kg workpiece loading and 650 mm cutting depth.

Electrical and Control Integration

The manufacturer offers standard and optional control cabinets, allowing customers to balance cost and control functionality. The ZHZK-03 is listed as the standard cabinet, while the ZHZ-09G is available as an option. Depending on the project, customers may also discuss scale feedback, automatic wire threading, extended travel, large-taper frames, rotary-axis equipment, and certification packages.

16. Configuration and Customization Options

The DK50BC can be adapted for different production environments. The high-pressure water tank is available as an option for applications requiring stronger flushing. Linear-scale feedback can be added where enhanced position monitoring and repeatability are important. AC servo drives may be selected instead of standard X/Y stepper drives for customers seeking a different drive configuration.

Other possible options include a ZHZ-09G control cabinet, automatic wire threading, extended X/Y travel, a large-taper wire frame, a C-axis rotary table, and CE or UL certification packages. Automatic wire threading can be useful for multi-cavity molds and long unattended cycles. A rotary table can support specialized cylindrical, spiral, or indexed cutting operations.

Customization should be agreed before production begins because it can affect the machine structure, electrical cabinet, software, delivery schedule, installation requirements, and final acceptance criteria. Standard-model lead time is indicated as approximately 15–25 days, while custom configurations may require an additional 10–15 days. Actual schedules depend on component availability and the scope of engineering changes.

17. Installation and Workshop Requirements

The DK50BC has an approximate machine weight of 2,000 kg and overall host dimensions of 2200 × 1865 × 2000 mm. The installation site must therefore provide adequate floor strength, access for transport, lifting clearance, electrical capacity, drainage or fluid-management provisions, and sufficient operator space around the machine.

The specified power supply is 3N 380 V ±10%. Customers should confirm local voltage, frequency, grounding, phase balance, circuit protection, and electrical regulations before shipment. A qualified electrician should connect the machine and verify the protective systems.

The machine is intended for general workshop environments, with an indicated operating range of approximately 5–40°C. Stable temperature remains beneficial for high-precision work. The machine should be protected from direct sunlight, strong drafts, excessive dust, corrosive vapors, severe vibration, and uncontrolled coolant contamination.

According to the supplied shipping information, the machine can be shipped fully assembled, calibrated, and test-cut at the factory. After arrival, installation generally involves positioning, leveling, electrical connection, dielectric-fluid preparation, and operational verification. The exact installation procedure should follow the supplier’s manual and the agreed commissioning plan.

18. Maintenance and Process Discipline

Routine maintenance is essential for preserving wire EDM accuracy. Operators should inspect wire guides, guide wheels, nozzles, fluid pumps, filters, water quality, lubrication points, ball screws, linear guides, electrical connections, and protective covers according to the maintenance schedule.

The dielectric system should be kept clean and correctly conditioned. Conductivity that is too high or too low can affect discharge stability. Contaminated water can accelerate guide wear, reduce surface quality, and increase the risk of wire breakage. Filters and ion-exchange resin should be replaced when their condition indicates that fluid quality can no longer be maintained.

Linear guides and ball screws require suitable lubrication and protection from abrasive particles. The waterproof cover should be inspected for damage, and fluid leakage should be corrected promptly. Operators should also verify that the wire path is correctly threaded and that the upper and lower guides are aligned.

Process records can help manufacturers improve consistency. Important records include material type, thickness, wire diameter, wire tension, cutting speed, pulse settings, flushing pressure, number of passes, surface roughness, dimensional inspection results, and consumable life. Maintaining this information supports repeat production and simplifies troubleshooting.

19. Recommended Production Workflow

A successful DK50BC project begins with evaluating the workpiece envelope. Confirm the part’s length, width, thickness, weight, material, clamping requirements, taper angle, internal openings, and required finished tolerance. The workpiece should fit within the usable table and tank dimensions while leaving sufficient clearance for flushing and wire movement.

The next stage is process planning. The operator or programmer should determine the starting hole, wire path, roughing allowance, finishing allowance, number of cuts, taper requirements, and inspection method. For thick workpieces, the strategy should also account for wire lag, debris evacuation, and the possibility of different conditions through the depth of the part.

After clamping and alignment, the machine can use edge-finding or centering functions where available. The workpiece should be firmly supported without creating distortion. Heavy components should be lifted and positioned using suitable equipment, and the worktable load should never exceed the rated capacity.

During rough cutting, operators should monitor discharge stability, wire vibration, flushing, and temperature. If the machine exhibits unstable cutting, the cause may be insufficient flushing, contaminated dielectric fluid, excessive feed, incorrect electrical settings, poor wire tension, or unsuitable workpiece preparation.

Finishing passes should be applied according to the required tolerance and roughness. Measurement after roughing can allow the finishing allowance to be adjusted. On high-value molds, verification of the first article is recommended before beginning a larger production batch.

20. Frequently Asked Questions

Q1: What type of customer should choose the DK50BC?

The DK50BC is intended for manufacturers that process large, heavy, thick, or complex conductive workpieces. It is especially suitable for mold factories, die manufacturers, automotive-tooling suppliers, heavy-machinery producers, and precision component manufacturers that need more capacity than a small or medium wire-cut machine can provide.

Q2: What is the maximum workpiece thickness?

The stated maximum cutting thickness is 650 mm. Actual results depend on the workpiece material, straightness, flushing, wire condition, clamping, electrical parameters, and required tolerance. Thick workpieces should be evaluated through a process test when the application is critical.

Q3: How heavy can the workpiece be?

The maximum worktable load is specified as 600 kg. This rating includes the workpiece and any fixtures or supporting accessories placed on the table. The actual loading method should comply with the installation and safety instructions.

Q4: Can the machine cut tapered profiles?

Yes. The standard U/V taper device provides approximately 60 × 60 mm travel and a maximum taper specification of ±6°/80 mm. Larger taper angles may be possible with an optional large-taper wire-frame configuration, subject to engineering confirmation.

Q5: What materials can be processed?

The DK50BC can process electrically conductive materials, including tool steels, hardened steels, stainless steels, cemented carbide, titanium alloys, copper alloys, aluminum alloys, nickel-based alloys, and suitable PCD or CBN tool blanks. Hardness alone does not prevent EDM cutting, although conductivity, melting behavior, thickness, and required surface condition influence the process.

Q6: What surface roughness can be expected?

The standard technical data identifies Ra ≤ 2.5 μm as the optimal surface roughness under specified conditions. Additional product information describes finer results for advanced configurations and multi-pass processes. The final result depends on the material, thickness, number of passes, electrical parameters, dielectric condition, wire stability, and inspection method.

Q7: Is the DK50BC suitable for mass production?

Yes. The machine supports efficient rough cutting, multiple finishing passes, a large worktable, and a substantial load capacity. It is suitable for repeated production when the process is standardized and consumables are maintained. Production planning should account for finishing requirements and the number of parts that can be arranged on the table.

Q8: Does the machine require a temperature-controlled room?

It is designed for general workshop environments within an indicated range of approximately 5–40°C. For ordinary production, a climate-controlled room may not be essential. For tolerances below several micrometers, temperature stabilization, controlled dielectric temperature, and optional scale feedback are recommended.

Q9: What control systems are available?

The product is listed with X8 or AUTOCUT programming control systems. The standard control cabinet is ZHZK-03, and ZHZ-09G is available as an option. Customers should confirm the final interface language, CAD/CAM compatibility, data-transfer functions, and available automatic features in the purchase specification.

Q10: Can the machine be customized?

Possible customizations include a high-pressure water tank, linear scales, AC servo drives, large-taper equipment, automatic wire threading, extended travel, a rotary table, upgraded control cabinets, and certification packages. Custom requirements should be discussed before order confirmation because they may influence lead time and machine configuration.

Q11: What after-sales support is available?

The stated support program includes a 12-month warranty from shipment, rapid dispatch of critical spare parts, and continuing remote technical assistance through video communication. Installation training, operation manuals, process guidance, and spare-parts planning should be confirmed in the commercial agreement.

Q12: How should buyers compare the DK50BC with a slow-wire EDM machine?

Buyers should compare purchase price, cutting speed, finishing requirements, automatic functions, consumable cost, maintenance, machine capacity, local service, and the tolerance required by their products. The DK50BC is attractive when users need large capacity and multi-pass precision at a more economical operating level than many premium imported systems.

21. Why the DK50BC Is a Practical Investment

The DK50BC combines several capabilities that are rarely optimized simultaneously in a single machine: large workpiece capacity, heavy loading, deep cutting, taper machining, four-axis linkage, multi-pass finishing, controlled wire transport, and comparatively economical operation. This combination gives manufacturers more flexibility when production requirements change.

Its main competitive advantage is not simply a single headline specification. The greater value comes from the interaction of its mechanical structure, control system, wire-feeding technology, dielectric system, and manufacturing support. A 650 mm cutting capacity is useful only when the wire remains stable. A high load rating is useful only when the structure maintains geometric accuracy. A multi-pass function is valuable only when the axes, wire, power supply, and flushing system work together.

The machine also provides a route for manufacturers to expand their capabilities. A workshop that currently produces small molds may use the DK50BC to accept larger tooling orders. A heavy-machinery supplier may use it to create internal profiles and thick-section components. An automotive or aerospace supplier may use its non-contact cutting capability for conductive hard materials that are expensive or difficult to machine conventionally.

For buyers, the final decision should be based on a complete technical review. Workpiece drawings, material information, tolerance requirements, surface-finish targets, production volumes, taper angles, factory conditions, and future capacity plans should all be discussed with the supplier. When correctly selected, installed, and maintained, the DK50BC can serve as a stable production asset for precision wire EDM operations.

Conclusion

The DK50BC CNC Medium-Speed Wire EDM Machine is designed for manufacturers that require a larger and stronger wire-cut EDM platform without moving immediately to the highest-cost category of imported slow-wire equipment. Its 650 mm maximum cutting thickness, 600 kg table load, 500 × 700 mm X/Y travel, four-axis interpolation, taper capability, linear-guide support, controlled wire transport, and multi-pass processing make it suitable for a wide range of demanding industrial applications.

The machine is especially valuable for large molds, thick dies, heavy machinery parts, automotive tooling, aerospace components, conductive carbide, and other complex profiles. Its energy-conscious design, accessible consumables, optional feedback systems, and flexible control configurations further support economical long-term operation.

Backed by a manufacturer with long-term experience in wire-cut EDM, dedicated product development, factory testing, positioning-accuracy inspection, and application-oriented customization, the DK50BC offers a practical combination of capacity, precision, productivity, and service support. For production environments seeking to improve large-part machining while controlling investment and running costs, it represents a capable and adaptable medium-speed wire EDM solution.

References

1. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-BC Series Medium-Speed Wire-Cut EDM Technical Specifications.

2. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK50BC Product Description and Application Information.

3. GB/T 7926-2015, Test Method and Technical Requirements for Wire-Cut Electrical Discharge Machine Tools.

4. Manufacturer-provided information on X8 and AUTOCUT programming control systems.

5. Manufacturer-provided information on DK35BC, DK45BC, DK50BC, and DK60BC model selection.

6. General technical guidance for wire-cut electrical discharge machining, dielectric management, wire transport, and multi-pass processing.
