High-Speed Wire-Cut EDM for Precision Molds, Complex Parts, and Efficient Production

Introduction to High-Speed Wire-Cut EDM Technology

Wire Electrical Discharge Machining, commonly known as WEDM or wire-cut EDM, is an essential non-contact machining process for manufacturers that need to cut electrically conductive materials with high precision. Unlike conventional milling, drilling, or sawing, wire-cut EDM removes material through controlled electrical discharges between a continuously moving electrode wire and the workpiece. Because the cutting force is extremely low, the process is especially valuable for thin sections, intricate profiles, narrow slots, hardened materials, and components that would be difficult to machine using mechanical tools.

The DK-7725 CNC High-Speed Wire EDM Machine is designed for manufacturers seeking a practical combination of cutting efficiency, four-axis control, stable operation, and flexible production capability. With an X-axis travel of 250 mm, a Y-axis travel of 320 mm, and a maximum worktable load of 250 kg, the machine is positioned for small and medium-sized workpieces, precision molds, tool components, and high-accuracy production tasks.

Its maximum cutting efficiency can reach approximately 10,000 to 16,000 mm² per hour when matched with a suitable CNC control cabinet and optimized processing conditions. The machine also supports four-axis linkage through X, Y, U, and V axes, enabling straight cutting and taper cutting operations with greater geometric flexibility. A maximum taper of ±6° over 80 mm and an optimal surface roughness of Ra≤2.5 μm make the machine suitable for a wide range of mold and precision-part applications.

The machine is manufactured by Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., a specialist enterprise with long-term experience in electrical discharge wire cutting and related special-processing technologies. Since beginning its wire-cutting activities in 1999, the company has developed product families covering medium-speed, high-speed, and large-taper wire-cut EDM equipment. Its manufacturing philosophy combines mechanical rigidity, electrical discharge control, digital operation, standardized inspection, and practical service support.

This article examines the DK-7725 in detail, including its working principles, technical strengths, manufacturing advantages, production applications, maintenance requirements, configuration options, and reasons it can be a competitive choice for precision manufacturers.

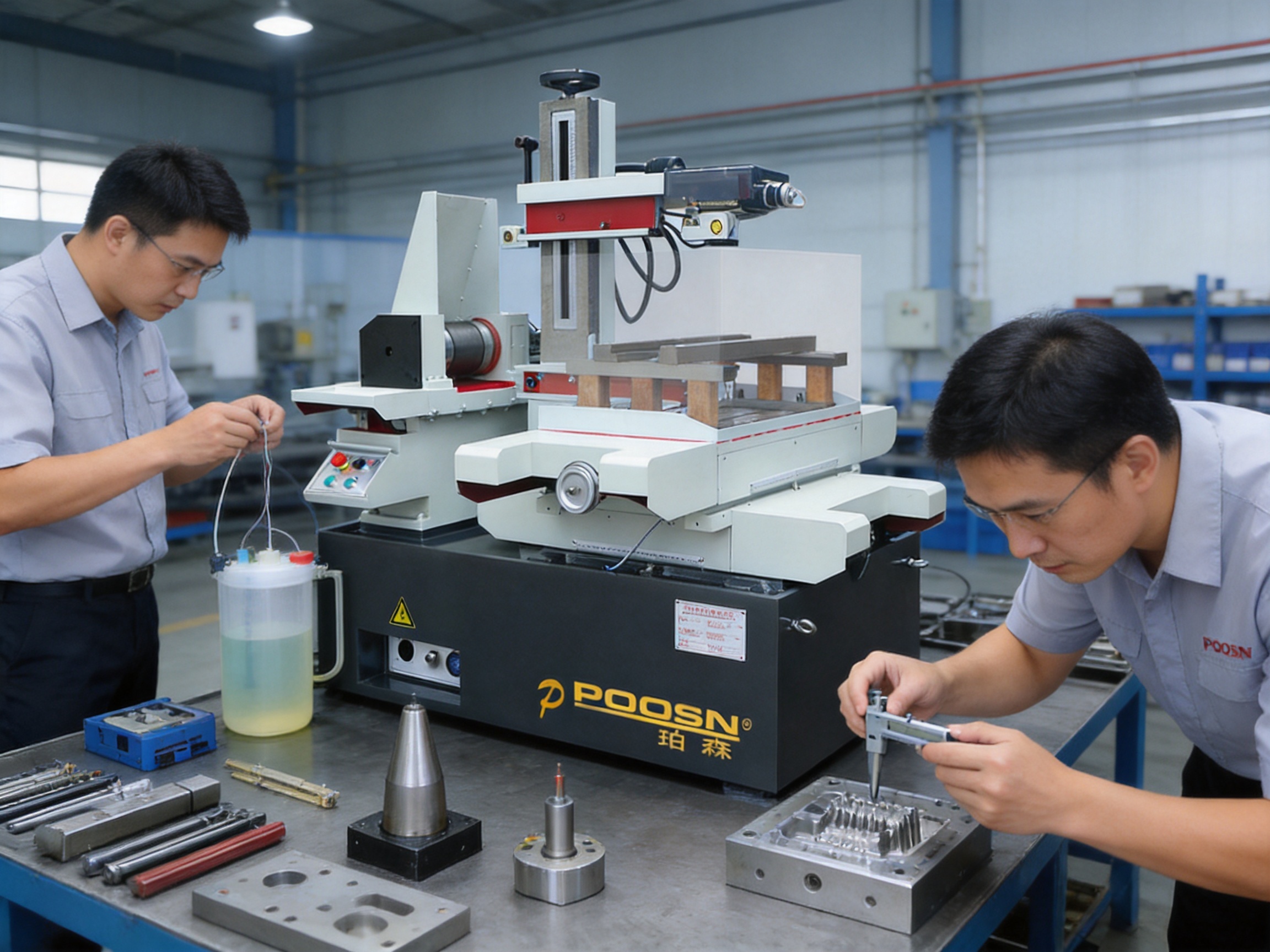

DK-7725 CNC High-Speed Wire EDM Machine (4-Axis, 250kg Load)

Product Positioning and Main Advantages

A Practical Machine for Precision and Productivity

The DK-7725 is designed to bridge the gap between basic wire-cut EDM equipment and more expensive high-end machining systems. It provides a high-speed cutting platform without sacrificing the essential capabilities required for precision production. Its structure is suitable for factories that need reliable performance, repeatable accuracy, and manageable operating costs rather than an oversized machine intended for extremely large workpieces.

The machine is particularly suitable for small and medium-sized molds, stamping dies, precision mechanical components, electronic parts, automotive components, and general conductive metal processing. Its 250 kg maximum table load allows users to process substantial workpieces while maintaining a compact working envelope. This balance helps manufacturers preserve valuable floor space and avoid investing in a machine that is larger than their actual production requirements.

High Cutting Efficiency

One of the most important benefits of the DK-7725 is its high cutting efficiency. Under appropriate electrical, flushing, wire, and workpiece conditions, the machine can reach a cutting efficiency of 10,000 to 16,000 mm² per hour. Actual results depend on the material, thickness, workpiece geometry, wire condition, discharge parameters, and selected CNC cabinet, but the rated range demonstrates the machine’s focus on productivity.

High cutting efficiency is valuable in both job-shop and batch-production environments. In mold manufacturing, it can reduce the time required to cut inserts, punches, cavities, and complex profiles. In component production, it can shorten the cycle time for repeated parts and improve the utilization rate of the machine. In many factories, faster cutting also allows operators to complete more jobs during a shift without adding another machine.

Compared with slower wire-cutting equipment, a high-speed machine can offer a more favorable balance between processing time and cost per part. The DK-7725 is therefore appropriate for manufacturers that need to improve throughput while retaining the flexibility associated with wire EDM.

Four-Axis Linkage and Taper Cutting Capability

The DK-7725 uses X, Y, U, and V-axis control with four-axis linkage. The X and Y axes control the primary worktable movement, while the U and V axes control the upper and lower wire-guide positions. Coordinated movement of these axes allows the machine to generate tapered profiles and more complex three-dimensional contours.

Four-axis linkage provides several advantages over simple two-axis cutting. It allows the upper and lower profiles of a workpiece to be offset from one another, which is necessary for tapered punches, dies, mold components, and parts with inclined walls. It also provides greater flexibility when machining components whose upper and lower contours are not identical.

The maximum cutting taper is specified as ±6° over 80 mm. This capability gives users a wider range of processing options without requiring a separate taper-cutting machine. For manufacturers that regularly produce dies, inserts, or components with angled surfaces, integrated four-axis control can reduce setup changes and improve overall workflow.

Strong Worktable Load Capacity

A maximum worktable load of 250 kg is a significant advantage for the DK-7725. Although the machine is intended for small and medium-sized parts, its table is sufficiently strong to support many heavy mold bases, tool components, and steel workpieces. A rigid table helps reduce unwanted movement and vibration during machining, particularly when the workpiece is tall or unevenly distributed.

Load capacity should always be evaluated together with workpiece dimensions, clamping position, height, and center of gravity. Nevertheless, the 250 kg rating gives production planners greater freedom than a lightweight compact machine. It also helps manufacturers avoid dividing a workpiece into multiple operations simply because of table-load limitations.

Fine Surface Finish

The DK-7725 can achieve an optimal surface roughness of Ra≤2.5 μm under suitable finishing conditions. Surface finish depends on the number of skim cuts, electrical parameters, material properties, wire quality, flushing conditions, and machine setup. Even so, the machine’s control and discharge systems are designed to support fine finishing work after rough cutting.

A good surface finish can reduce the need for manual polishing, secondary grinding, or additional corrective operations. This is particularly useful in mold manufacturing, where excessive post-processing may alter critical dimensions or soften sharp edges. A consistent EDM surface also helps improve repeatability from one workpiece to the next.

Technical Specifications

Item	DK-7725 Specification
Model	DK7725
Worktable Size	410×600 mm
X/Y Travel Size	250×320 mm
Maximum Cutting Thickness	350 mm
Maximum Cutting Taper	±6°/80 mm
Maximum Cutting Efficiency	10,000–16,000 mm²/h
Optimal Surface Roughness	Ra≤2.5 μm
Machine Accuracy Standard	GB/T7926-2015
Drive Type	X, Y, U, and V stepper drive; four-axis linkage
Control Cabinet	Standard ZH-K68 desktop cabinet; optional ZHZK-03 vertical cabinet
Power Supply	3N 380V±10%
Maximum Worktable Load	250 kg
Machine Weight	Approximately 800 kg
Machine Dimensions	Approximately 1300×1080×1625 mm

The DK-7725 belongs to a broader product platform that includes models with larger worktables, longer axis travel, greater cutting thickness, and higher load capacity. The DK-7735, DK-7745, and DK-7745F are available for progressively larger workpieces. For very large components, the DK7755F, DK7763F, DK7780F, and DK77100F extend the same high-speed wire-cutting concept to significantly larger working ranges.

This model-family approach is useful for manufacturers with changing production requirements. A customer can select a compact DK-7725 for precision small-batch work or move to a larger model when part size, worktable loading, or cutting thickness increases. The availability of related models also simplifies technical communication and future capacity planning.

Mechanical Construction and Manufacturing Strength

Rigid Cast-Iron Machine Bed

Machine-bed rigidity is one of the foundations of wire-cut EDM accuracy. Although the EDM process produces little direct cutting force, the machine must still resist vibration, thermal movement, worktable deflection, and the dynamic effects of axis movement. The DK-7725 uses a high-rigidity HT250 cast-iron structure to provide a stable foundation for the worktable, guide system, wire mechanism, and electrical components.

Cast iron is widely used in precision machine tools because it combines compressive strength, vibration damping, and dimensional stability. The bed and major structural castings are subjected to aging treatment intended to reduce internal stress. This helps limit dimensional changes after machining and supports more consistent accuracy over the service life of the equipment.

A rigid structure is particularly important when machining thick workpieces or tall profiles. If the machine structure vibrates or the worktable deflects, the resulting discharge gap can become unstable. This may lead to wire breakage, irregular surface quality, dimensional variation, or the need for additional finishing passes. The DK-7725’s heavy construction is intended to minimize these risks.

Guide Rails and Lead-Screw Transmission

The axis-transmission system directly influences positioning accuracy, smooth movement, and repeatability. The DK-7725 uses carefully selected guide rails and lead screws designed to provide low-friction movement and accurate positioning. Smooth axis travel helps the machine follow programmed contours without abrupt motion or excessive mechanical resistance.

During long-trajectory machining, even small positioning errors can accumulate along the contour. For this reason, the transmission system must maintain stable movement throughout the complete stroke. The X-axis travel of 250 mm and Y-axis travel of 320 mm are supported by a structure intended for precise movement while carrying a workpiece of up to 250 kg.

The use of stepper drives on the X, Y, U, and V axes provides a cost-effective control architecture. With proper parameter adjustment, mechanical alignment, and routine maintenance, the drive system can deliver the precise incremental movement required for wire EDM. The four-axis arrangement also supports coordinated taper cutting rather than treating the upper and lower guides as independent manual adjustments.

Worktable Design

The 410×600 mm worktable gives the operator a useful working platform while keeping the overall machine footprint relatively compact. A properly designed table must provide sufficient surface area for clamping, stable support for heavy workpieces, and suitable access for flushing and wire threading.

For precision work, clamping should be performed carefully to avoid distortion. The operator must ensure that the workpiece is clean, properly supported, and securely fixed. The machine’s load capacity is an important advantage, but correct fixture design remains essential for obtaining the best accuracy and surface finish.

Electrical Discharge and Control-System Performance

High-Frequency Pulse Power Supply

The pulse power supply is the electrical core of a wire-cut EDM machine. It generates controlled pulses between the moving wire electrode and the conductive workpiece. Each discharge creates a small localized melting and vaporization event. Dielectric fluid then removes the resulting debris and cools the machining zone.

The DK-7725 uses a high-frequency pulse power supply designed to provide stable discharge control during high-speed wire travel. By monitoring and responding to the conditions within the discharge gap, the system helps maintain a suitable distance between the wire and the workpiece. Stable gap control is essential for maintaining cutting speed, reducing short circuits, and limiting wire breakage.

A well-controlled pulse system also supports different machining stages. Rough cutting generally prioritizes removal rate, while finishing passes require lower-energy discharges and greater attention to dimensional accuracy and surface texture. The ability to adjust pulse width, pulse interval, current, and related parameters allows the operator to match the process to the material and desired result.

Discharge Stability and Wire Protection

Wire breakage is one of the most disruptive problems in wire EDM. It can interrupt production, require operator intervention, damage a partially completed workpiece, and reduce confidence in unattended operation. The DK-7725’s electrical and mechanical systems are designed to maintain a stable discharge gap and support smooth wire travel, thereby reducing the likelihood of abnormal wire wear and breakage.

Stable flushing is also important. During cutting, debris must be removed from the narrow gap between the wire and the workpiece. If debris accumulates, the discharge may become unstable. If flushing pressure is too high or poorly directed, it can disturb the wire. The machine’s process design therefore depends on a balanced relationship among pulse parameters, wire tension, wire speed, flushing, and filtration.

Digital Control and Four-Axis Operation

The CNC system supports the import and execution of programmed profiles and provides coordinated control of the X, Y, U, and V axes. An industrial graphical interface helps operators manage programs, machining parameters, axis movement, and production information in a more accessible way.

Four-axis control is especially useful for taper operations. The CNC system calculates the coordinated movement required to maintain the programmed relationship between the upper and lower wire guides. This reduces manual setup work and allows the same machine to process both straight and tapered geometries.

Path algorithms can also help manage changes in direction, sharp corners, arcs, and complex contours. By adjusting discharge conditions according to the machining path, the control system can support more uniform surface textures and reduce irregularities in difficult areas. This is valuable in mold cavities and precision components where corner quality and profile consistency are critical.

Wire Transport, Filtration, and Cooling

Constant-Tension Wire Transport

The wire transport mechanism must move the electrode wire at a controlled speed and tension. Excessive tension can increase the risk of wire breakage, while insufficient tension may cause wire deflection and reduce geometric accuracy. The DK-7725 uses a constant-tension control concept to support stable cutting and improve the consistency of the machined profile.

Constant tension is also beneficial for surface finish. When the wire remains stable in the cutting zone, the discharge location is more predictable and the resulting cut is less likely to show irregular waviness. Stable wire movement is particularly important during taper cutting, thick-section machining, and the finishing passes used for precision molds.

The company’s technical guidance emphasizes regular inspection of guide wheels, guide nozzles, and conductive blocks. These components directly contact or influence the wire. Wear, contamination, or incorrect positioning may cause abnormal wire movement and accelerate wire consumption.

Industrial Cooling and Multi-Stage Filtration

Dielectric fluid serves several functions during WEDM. It cools the workpiece and wire, removes eroded particles, supports electrical insulation before each discharge, and helps control the machining gap. For these reasons, fluid cleanliness and temperature stability have a direct influence on process performance.

The DK-7725 is described as using industrial cooling and filtration arrangements intended to maintain a clean machining environment. Multi-stage filtration helps remove suspended particles produced during cutting. Effective filtration can preserve discharge stability, protect pumps and valves, and reduce the risk of re-entering debris into the machining zone.

Operators should monitor fluid level, fluid condition, filtration performance, and temperature. Filters are consumable items and must be replaced or cleaned according to the workload and manufacturer’s maintenance recommendations. Neglecting the filtration system can increase machining instability even if the electrical and mechanical systems are functioning correctly.

Accuracy, Surface Quality, and Process Control

Precision Requirements

The DK-7725 is built for micron-level precision applications. The stated linear cutting accuracy is 0.005 mm, while the taper accuracy is 0.015 mm under specified testing and operating conditions. These values should be interpreted together with workpiece thickness, material, thermal conditions, programming strategy, wire condition, and the number of finishing cuts.

Wire EDM accuracy is not produced by one component alone. It depends on the interaction of machine geometry, guide alignment, axis transmission, electrical discharge control, wire tension, flushing, workpiece clamping, and environmental stability. The machine’s compliance with the GB/T7926-2015 accuracy standard provides a reference framework for machine-tool performance testing.

For critical production work, users should establish their own process verification procedure. This may include checking a test profile, measuring straightness and taper, recording surface roughness, and comparing results at different workpiece heights. Such verification helps distinguish machine capability from process-variable effects.

Thermal and Environmental Stability

Temperature changes can influence the dimensions of the machine structure, workpiece, dielectric fluid, and guide components. Since wire EDM often involves long cutting cycles, even gradual thermal changes may influence the final result. The machine should therefore be installed in an environment with limited temperature fluctuation.

The recommended installation environment should be free from significant vibration sources and strong magnetic-field interference. Proper grounding is important for the stability of the CNC cabinet and pulse power supply. The foundation must be sufficiently strong and level, and the machine should be positioned to permit safe access for loading, maintenance, fluid servicing, and electrical inspection.

Taizhou Xinchengyang provides installation and commissioning support that includes machine leveling and accuracy testing according to the customer’s production-site conditions. This service is important because correct installation establishes the basis for later accuracy and reliability.

Advantages Compared with Alternative Machines

Compared with Conventional Mechanical Cutting

Mechanical cutting tools apply physical force to the workpiece. This can create tool deflection, cutting pressure, burrs, and deformation, particularly when processing thin sections or hardened materials. Wire EDM is a non-contact process, so the cutting force is extremely low. As a result, it can produce intricate profiles without exerting the same mechanical stress on the workpiece.

Wire EDM can also process hardened steel and other conductive materials after heat treatment. This reduces the need to soften a component before machining and re-harden it afterward. For moldmakers, this can simplify the production route and reduce the risk of dimensional changes caused by later heat treatment.

Compared with Basic Two-Axis Wire Cutting

Basic two-axis wire-cut machines are effective for straight profiles but may require additional setup or manual adjustment for tapered geometries. The DK-7725’s X, Y, U, and V four-axis linkage provides integrated taper-cutting capability. This improves flexibility and can reduce the number of separate operations required for angled parts.

Four-axis control is especially advantageous when the upper and lower contours differ. Instead of relying only on a fixed wire angle, the machine can coordinate guide movement according to the programmed geometry. This supports more complex dies, punches, inserts, and precision components.

Compared with Oversized Production Equipment

Larger wire EDM machines provide greater work envelopes and load capacities, but they also require more floor space, higher installation capacity, and often greater investment. The DK-7725 is a more focused solution for manufacturers whose parts fit within a 410×600 mm worktable and 250×320 mm travel range.

A compact high-speed machine can improve resource efficiency. It may consume less floor space, reduce loading effort, and allow smaller production departments to obtain CNC wire-cutting capability without purchasing an oversized platform. The DK-7725 is therefore suitable for businesses that need precision and productivity in a controlled working envelope.

Compared with Low-Cost, Light-Duty Machines

Some low-cost wire-cut machines prioritize purchase price over structural rigidity, electrical stability, load capacity, or long-term serviceability. The DK-7725 is designed with a heavy cast structure, a 250 kg table-load rating, industrial filtration, four-axis control, and a documented manufacturing and inspection system.

For manufacturers, the total cost of ownership includes more than the initial purchase price. Downtime, wire consumption, rework, maintenance, operator training, and inconsistent accuracy all influence production cost. A machine with stable performance and accessible support can provide better long-term value than a cheaper machine that requires frequent intervention.

Application Areas

Mold and Die Manufacturing

Mold manufacturing is one of the primary applications for the DK-7725. The machine can cut complex cavities, punches, inserts, guide components, and other mold elements from conductive materials. Its precision and taper capability are useful for molds requiring accurate draft angles, narrow slots, sharp corners, and repeatable profiles.

In stamping-die production, the machine can process punches and die openings after heat treatment. The non-contact cutting method helps preserve the dimensional integrity of hardened tool steel. Multiple finishing passes can be used to obtain the required surface quality and profile accuracy.

Precision Mechanical Components

Precision machinery manufacturers can use the DK-7725 to produce gears, indexing components, narrow slots, formed openings, special washers, and custom mechanical profiles. The machine is particularly useful when the component geometry is too complex for conventional broaching or when a special cutting tool would be expensive to manufacture.

Because the machine can process a range of conductive materials, it is suitable for prototyping as well as small and medium production batches. A CNC program can be modified quickly when the design changes, helping reduce the cost and lead time associated with dedicated tooling.

Electronic and Instrument Components

Electronic equipment and instrumentation often require small parts with narrow features and precise contours. Wire EDM can cut conductive alloys used in precision housings, contacts, fixtures, tooling plates, and specialized component supports. The DK-7725’s compact working range is suitable for many small-part applications where profile quality is more important than high-volume stamping speed.

Aerospace and Automotive Components

Aerospace and automotive manufacturers frequently require components made from high-strength or heat-treated conductive materials. Wire EDM can process such materials while maintaining a low mechanical load. The DK-7725 can be used for prototypes, repair tooling, fixtures, inserts, and selected production components within its worktable and travel limits.

For automotive applications, the machine is suitable for precision molds, stamping components, special brackets, and parts requiring repeated profile accuracy. For aerospace work, it may be used for complex small and medium-sized components, provided the material is electrically conductive and the process has been validated for the required specification.

Customization and Model Selection

Different production environments require different table sizes, travels, thickness capacities, and load ratings. The DK-7725 is the smallest model in a group that includes larger machines for progressively larger workpieces.

Model	Worktable Size	X/Y Travel	Maximum Load	Typical Positioning
DK-7725	410×600 mm	250×320 mm	250 kg	Small and medium precision parts
DK-7735	500×750 mm	350×450 mm	300 kg	Medium components and molds
DK-7745	570×850 mm	450×550 mm	400 kg	Large parts and precision molds
DK-7745F	570×950 mm	450×650 mm	500 kg	Large and heavy components

The DK-7725 is generally recommended when the required X/Y travel is within 250×320 mm and the workpiece load does not exceed 250 kg. The DK-7735 offers additional working space for medium-sized components. The DK-7745 and DK-7745F are more suitable when the customer needs a larger worktable, longer travel, or higher load capacity.

For especially large workpieces, the DK7755F, DK7763F, DK7780F, and DK77100F provide larger working ranges and table capacities from 600 kg to 1,200 kg. Some larger models can also be customized according to production requirements. Selecting the correct model at the beginning helps prevent limitations involving workpiece height, clamping space, loading equipment, and future production expansion.

Customization services may include the selection of the CNC control cabinet, processing configuration, machine size, and special machining solutions. The standard control cabinet for the DK-7725 is the ZH-K68 desktop cabinet, while the ZHZK-03 vertical cabinet is available as an option. Customers should discuss their preferred operating layout, workshop space, programming requirements, and production volume before confirming the final configuration.

Manufacturing Processes and Quality Assurance

Integrated Research and Development

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has developed its product range through long-term specialization in electrical discharge wire cutting. The company combines research and development with machining, assembly, electrical integration, testing, and technical service. This integrated approach allows the manufacturer to coordinate mechanical and electrical performance instead of treating the machine as a collection of unrelated components.

The company has advanced processing equipment and comprehensive testing methods. Its products are manufactured according to national standards, and each machine tool undergoes positioning-accuracy testing. Such inspection is important because wire EDM performance depends on the alignment of multiple systems, including the worktable, guide rails, wire guides, drive axes, and control parameters.

Mechanical Component Preparation

High-rigidity castings must be properly prepared before final assembly. Aging treatment helps relieve internal stress, while accurate machining establishes the reference surfaces required for guide installation and table alignment. The quality of these operations influences the machine’s ability to maintain precision over time.

Critical transmission components are selected for smooth movement and positioning accuracy. During assembly, the guide rails, lead screws, worktable, and wire-guiding components must be aligned carefully. Incorrect alignment can produce taper errors, profile distortion, uneven wire tension, or premature wear.

Electrical Integration

The pulse power supply, CNC cabinet, drive system, sensors, and control interface must operate as one coordinated system. Electrical integration includes wiring, grounding, control testing, axis-motion verification, emergency protection, and discharge-function checks. A stable electrical system helps reduce interruption and supports consistent performance during long cutting cycles.

The company’s product philosophy emphasizes reliability and ease of maintenance. Core circuit boards and mechanical transmission components are designed for practical access, allowing technicians to inspect, replace, or repair components without unnecessary disassembly. This modular approach can reduce downtime and improve service efficiency.

Final Inspection and Commissioning

Before delivery, a machine should be checked for axis movement, positioning accuracy, wire transport, discharge stability, flushing, filtration, safety functions, and control operation. Installation at the customer’s site should then include leveling, connection of power and fluid systems, trial cutting, and accuracy verification.

Taizhou Xinchengyang provides installation and commissioning services tailored to the user’s production environment. This is valuable because a machine’s performance can be affected by the foundation, temperature, power quality, grounding, workshop vibration, and installation layout. Proper commissioning helps the customer begin production with a verified and documented baseline.

Operation and Production Efficiency

To achieve high productivity, operators should begin with accurate workpiece preparation. The workpiece must be electrically conductive, securely clamped, and positioned so that the programmed contour can be completed without fixture interference. The operator should confirm the workpiece height, cutting thickness, wire path, flushing direction, and available travel before starting the program.

Rough cutting parameters should be selected according to material and thickness. Higher-energy conditions may increase removal rate, but they also require appropriate flushing and stable wire transport. Finishing operations should use lower-energy parameters and suitable offsets to achieve the desired dimensional accuracy and surface finish.

For taper cutting, the operator must verify the upper and lower profile data, workpiece height, taper direction, and U/V-axis settings. Incorrect input can result in a geometrically correct but wrongly oriented taper. A test cut or simulation is recommended for unfamiliar geometries.

Production efficiency is also influenced by setup organization. Preparing programs, fixtures, wire, dielectric fluid, inspection tools, and workpiece materials in advance reduces idle time. Operators should record successful parameters for recurring materials and thicknesses. This creates a process database that can shorten future setup and improve consistency between shifts.

The DK-7725’s four-axis CNC system and graphical interface are intended to reduce operational complexity. Training should cover CAD preparation, program verification, axis functions, discharge parameters, wire threading, fluid management, alarm handling, and routine maintenance. Well-trained operators can use the machine’s capabilities more effectively and identify abnormal conditions before they cause major problems.

Maintenance and Reliability

Daily Maintenance

Daily maintenance should include cleaning the work area, checking the dielectric-fluid level, inspecting the wire path, and confirming that the machine operates without unusual vibration or noise. Operators should examine the guide wheels, wire guides, conductive blocks, flushing nozzles, and visible cables for contamination or damage.

The worktable and clamping surfaces should be kept clean. Accumulated debris can affect workpiece seating and create positioning errors. Any signs of corrosion, fluid leakage, abnormal wire wear, or unstable discharge should be reported promptly.

Automatic Lubrication

The DK-7725 is equipped with an automatic lubrication system intended to reduce manual intervention. Automatic lubrication helps supply the required lubricant to selected mechanical components at scheduled intervals. However, operators still need to check the reservoir level, inspect for leakage, and confirm that the system is functioning properly.

Insufficient lubrication can increase friction, wear, and positioning error. Excessive contamination around lubrication points can also affect moving components. Maintenance personnel should follow the manufacturer’s recommended lubricant type and service interval.

Wire and Guide-System Care

The service life of molybdenum wire depends on tension, current, discharge stability, wire speed, material thickness, and guide condition. Worn guide wheels or guide nozzles may cause the wire to move irregularly. Conductive blocks should be positioned correctly and kept clean to ensure reliable electrical contact.

Users should regularly inspect the guide system for grooves, cracks, deposits, or excessive wear. Replacing worn parts before they cause wire instability is usually less costly than dealing with repeated wire breakage and defective workpieces.

Filtration and Fluid Maintenance

Filters should be cleaned or replaced according to operating hours and fluid condition. Dirty filters may reduce flow, increase pump load, and allow debris to remain in the machining area. The dielectric fluid should be monitored for contamination, temperature changes, and abnormal appearance.

Good fluid maintenance contributes to cutting efficiency, surface quality, wire stability, and electrical reliability. It also helps protect pumps, valves, and other fluid-system components.

Electrical and Environmental Checks

Electrical cabinets should be kept clean, dry, and adequately ventilated. Grounding connections must remain secure. The workshop should avoid excessive dust, humidity, vibration, and temperature fluctuation. Strong magnetic interference and unstable power conditions may affect control performance and should be addressed during installation planning.

Service, Training, and Customer Support

A precision machine is only as effective as the support system behind it. Taizhou Xinchengyang provides technical assistance intended to help customers maintain stable operation throughout the equipment’s service life. Its service approach includes installation, commissioning, operator training, maintenance guidance, performance inspection, and software-related support.

Installation support includes machine leveling and accuracy testing. This allows the manufacturer’s technical team to establish the machine according to the actual site conditions. Commissioning can include trial cutting, parameter confirmation, axis checks, and basic operator instruction.

Training can cover CAD modeling and drafting, CNC program preparation, taper cutting, machine operation, wire replacement, dielectric-fluid management, alarm response, and routine maintenance. Training is especially important for new users because incorrect setup or poor fluid management can reduce performance even when the machine is mechanically sound.

For long-term support, the company can maintain equipment records and provide regular performance inspections and software updates. Maintaining a history of accuracy checks, component replacement, wire usage, filter service, and recurring alarms helps identify trends before they become serious failures.

The company also maintains spare-part support for core electrical and mechanical components. A modular design makes selected components easier to disassemble and replace. This can reduce repair time and improve the availability of the machine in production environments where downtime has a direct financial impact.

Q&A: DK-7725 High-Speed Wire EDM Machine

What is the maximum cutting accuracy of the DK-7725?

The DK-7725 is designed for micron-level precision. Its stated linear cutting accuracy is 0.005 mm, and its taper accuracy is 0.015 mm under specified testing and operating conditions. Actual results depend on material, workpiece height, thermal stability, clamping, wire condition, discharge parameters, and finishing strategy.

What materials can the machine process?

The machine can process electrically conductive metals including steel, stainless steel, hardened steel, cemented carbide, copper, aluminum, and similar conductive materials. Material-specific parameters should be selected according to electrical conductivity, hardness, thickness, flushing behavior, and required surface finish.

What is the maximum workpiece size?

The DK-7725 has an X-axis travel of 250 mm and a Y-axis travel of 320 mm. Its worktable measures approximately 410×600 mm. The maximum cutting thickness is 350 mm, and the maximum table load is 250 kg. The exact allowable workpiece size must also account for clamping clearance, wire path, fixture dimensions, and workpiece weight distribution.

Is the DK-7725 suitable for taper cutting?

Yes. The machine uses X, Y, U, and V four-axis linkage control and supports a maximum cutting taper of ±6° over 80 mm. It can therefore process tapered punches, dies, mold components, and other parts that require an offset between the upper and lower profiles.

Can the machine be used for mass production?

Yes. Its cutting efficiency of approximately 10,000 to 16,000 mm² per hour makes it suitable for high-efficiency production. The machine is particularly appropriate for high-precision small and medium batch production. Production results depend on workpiece geometry, material, cutting thickness, programming, wire management, and the selected CNC cabinet.

Is the machine easy to maintain?

The DK-7725 includes an automatic lubrication system and a design intended to simplify access to key mechanical and electrical components. Routine maintenance still requires regular cleaning, filtration service, guide inspection, wire-system checks, fluid management, and electrical inspection. Following a planned maintenance schedule is essential for long-term reliability.

What control cabinets are available?

The standard configuration uses the ZH-K68 desktop cabinet. The ZHZK-03 vertical cabinet is available as an optional configuration. The appropriate choice depends on workshop layout, operator preference, available space, and the customer’s preferred control arrangement.

Can the machine be customized?

Customization services are available for specific customer requirements. Possible options may include control-cabinet selection, processing solutions, model selection, and configurations for specialized workpieces. Customers should provide details about material, workpiece dimensions, thickness, taper requirements, production volume, accuracy, surface finish, and workshop conditions.

How can operators extend molybdenum-wire life?

Operators should maintain correct wire tension, inspect guide wheels and guide nozzles, keep the working fluid clean, and position conductive blocks correctly. Stable discharge parameters and appropriate flushing also help reduce abnormal wear. Wire should be replaced when its condition indicates that cutting stability or surface quality may be compromised.

What environmental conditions are recommended?

The machine should be installed in an area with limited temperature fluctuation, minimal vibration, low dust, proper grounding, and protection from strong magnetic interference. A stable foundation and adequate ventilation around the control cabinet are also recommended.

Why Select This Machine for a Precision Production Line?

The DK-7725 offers a balanced combination of performance characteristics that are important to modern wire-cutting operations. Its high-speed cutting capability supports productivity, while four-axis linkage provides taper-cutting flexibility. Its 250 kg table load expands the range of workpieces that can be processed, and its compact dimensions make it practical for workshops with limited floor space.

The machine’s value also comes from the supporting manufacturing system behind it. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has experience in electrical discharge wire cutting, maintains product lines for different workpiece sizes, and applies standardized production and accuracy testing. Its services extend from installation and training to maintenance and spare-part support.

For moldmakers, precision-part manufacturers, toolrooms, and job shops, the DK-7725 can reduce dependence on conventional cutting methods and simplify the production of complex conductive components. It can process hardened materials, generate tapered profiles, produce fine surface finishes, and support repeatable CNC production.

When selecting a wire EDM machine, buyers should evaluate not only rated cutting speed but also structural rigidity, wire stability, control capability, worktable capacity, filtration, service response, operator training, and long-term maintenance. The DK-7725 addresses these factors through an integrated mechanical, electrical, and service design.

Conclusion

The DK-7725 CNC High-Speed Wire EDM Machine is a precision-oriented solution for manufacturers that require efficient cutting, four-axis taper capability, reliable operation, and practical production flexibility. Its 250×320 mm X/Y travel, 350 mm maximum cutting thickness, 250 kg worktable load, 10,000–16,000 mm²/h cutting efficiency, and ±6° taper capability make it suitable for a broad range of small and medium-sized industrial applications.

Its advantages are supported by a rigid HT250 cast-iron structure, carefully prepared transmission components, constant-tension wire transport, industrial cooling and filtration, high-frequency pulse control, and a graphical CNC interface. Together, these systems help maintain cutting stability, dimensional accuracy, surface quality, and production efficiency.

The machine is particularly valuable for mold manufacturing, precision machinery, electronic components, aerospace prototypes, automotive tooling, and other conductive-metal applications. Its related model family allows customers to select larger platforms when future production requires greater table size, travel, thickness, or load capacity.

Through long-term experience, standardized manufacturing, accuracy inspection, installation support, technical training, and maintenance assistance, Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. provides more than a standalone machine tool. It provides an integrated wire-cutting solution aimed at helping manufacturers improve throughput, control machining costs, and maintain consistent quality over the life of the equipment.

References

1. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-77 High-Speed Wire EDM Product Specifications.

2. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-7725 Product Information and Technical Application Guide.

3. GB/T7926-2015, Accuracy Inspection Requirements for Wire-Cut Electrical Discharge Machines.

4. General principles of wire electrical discharge machining, electrical-discharge-process engineering references.

5. Industrial machine-tool installation, leveling, accuracy verification, and preventive-maintenance practices.

6. Manufacturing references for pulse power supplies, dielectric filtration, electrode-wire transport, and CNC multi-axis control.

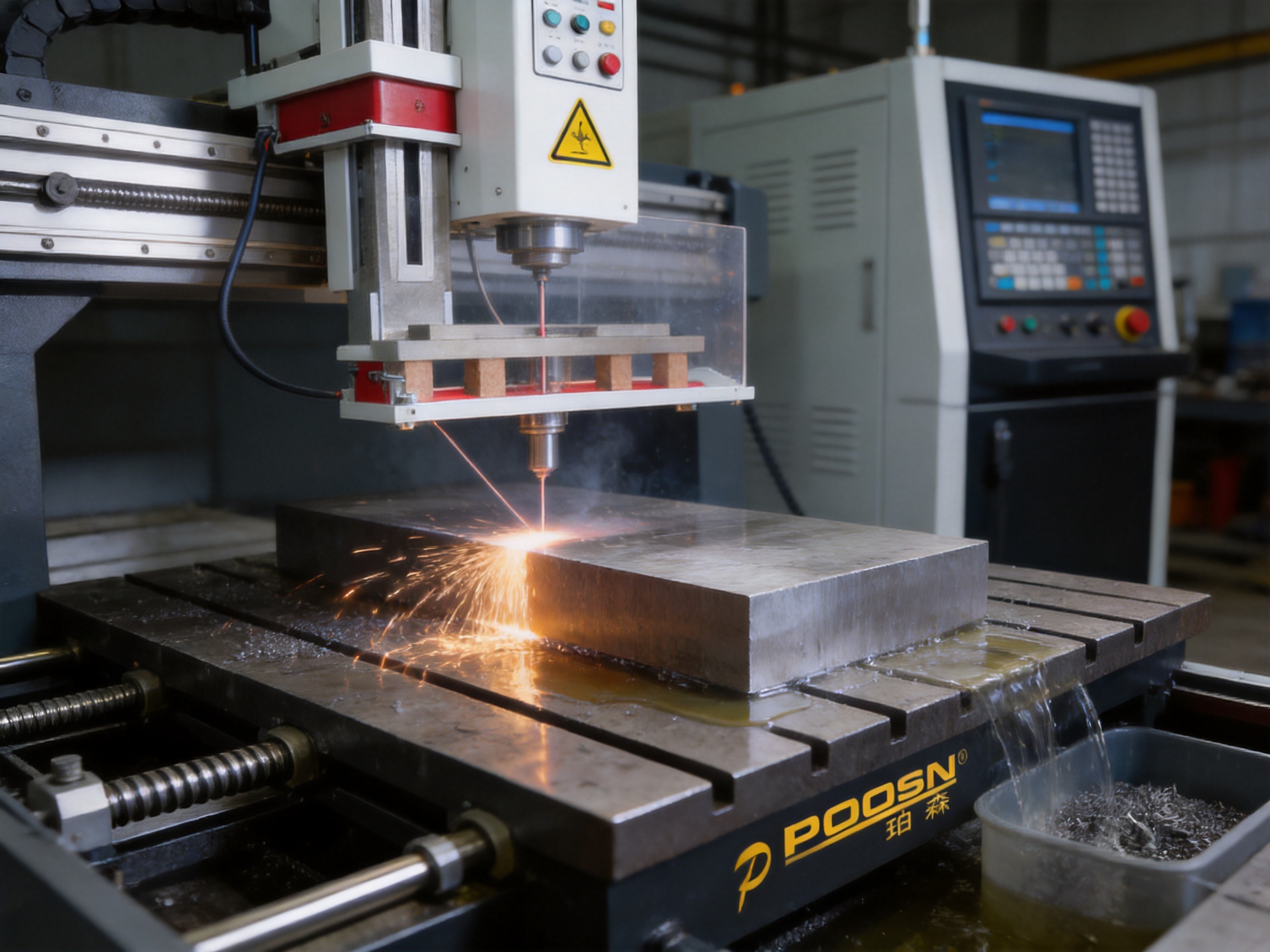

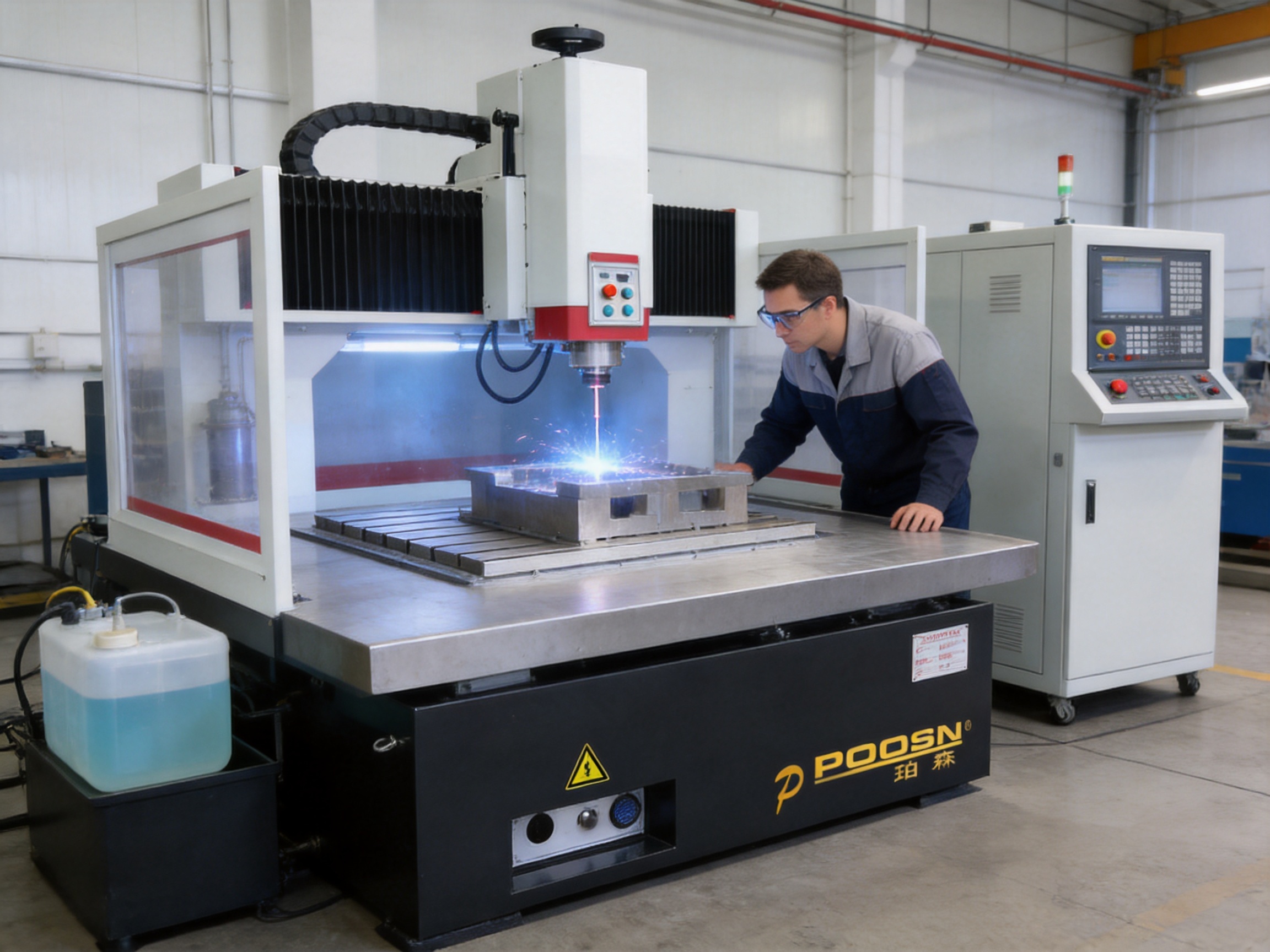

Product: DK-7725 CNC High-Speed Wire EDM Machine (4-Axis, 250kg Load)
