DK45D Large-Taper Wire-Cut EDM: Precision, Stability, and Manufacturing Advantages for Complex Mold Production

Modern mold manufacturing increasingly demands more than ordinary two-dimensional cutting. Automotive components, aerospace parts, precision stamping dies, and specialized mechanical products often include inclined surfaces, deep profiles, irregular contours, and geometries that cannot be produced efficiently with conventional machining methods. For these applications, a large-taper wire-cut electrical discharge machining machine must combine accurate multi-axis motion, structural rigidity, reliable wire guidance, stable electrical discharge control, and practical production efficiency.

The DK45D CNC Large-Taper Wire-Cut EDM Machine has been developed for precisely this type of demanding work. It is designed to perform large-angle and high-precision wire-cutting operations while maintaining stable performance across medium-sized workpieces and complex molds. Its maximum cutting taper reaches ±30° over 40 mm, its maximum cutting thickness is 450 mm, and its maximum worktable load is 400 kg. With four-axis X, Y, U, and V linkage and an X8/AUTOCUT control system, the machine supports the production of complex profiles that require coordinated upper and lower contour control.

Manufactured by Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., the DK45D reflects the company’s long-term specialization in wire-cut EDM technology. The manufacturer combines product development, casting and mechanical processing capabilities, electrical control integration, precision inspection, and application-oriented technical support. This integrated approach enables the machine to serve not only as a standard wire-cutting unit but also as a production platform for demanding large-taper applications.

1. The Role of Large-Taper Wire-Cut EDM in Precision Manufacturing

Wire-cut electrical discharge machining removes conductive material through controlled electrical discharges between a continuously moving electrode wire and the workpiece. Because the cutting force is extremely low compared with mechanical cutting, the process is suitable for hardened steels, tool steels, carbide materials, alloys, and other conductive metals that may be difficult to machine by milling, sawing, or conventional turning.

Standard wire-cut EDM is frequently used for straight profiles and relatively simple tapered cuts. However, advanced production work often requires the wire to incline substantially while the upper and lower guide positions move in a coordinated manner. This produces a tapered or spatially variable profile through the thickness of the workpiece. Such a capability is important when a mold cavity, punching die, component profile, or aerodynamic surface must be cut at a controlled angle.

The DK45D is configured for this type of operation. Its X and Y axes control the primary horizontal cutting movement, while the U and V axes control the tapering mechanism. When these axes operate together, the machine can generate complex spatial trajectories rather than relying only on a fixed two-dimensional contour. The result is greater flexibility for large-taper molds, inclined cutting edges, irregular components, and precision parts with different upper and lower profiles.

Large-taper machining also introduces technical challenges. As the wire angle increases, wire tension, guide alignment, flushing conditions, discharge stability, and geometric compensation become more demanding. A machine that is suitable for ordinary straight cutting may not provide the same level of stability at a steep angle. The DK45D addresses these requirements through a rigid structure, dedicated tapering movement, calibrated wire-guiding components, and a CNC control system designed for coordinated multi-axis operation.

2. Main Technical Characteristics of the DK45D

Technical Item	DK45D Specification
Machine Type	CNC large-taper wire-cut EDM
Worktable Size	570 × 950 mm
X/Y Travel	450 × 650 mm
Processing Slot Size	630 × 990 mm
Maximum Cutting Thickness	450 mm
Maximum Worktable Load	400 kg
Maximum Cutting Taper	±30°/40 mm
Wire Electrode Diameter	0.18 mm with wire guider
Wire Feed Speed	1–11 m/s, frequency controlled
Maximum Wire Storage Length	Approximately 350 m
Controlled Axes	X, Y, U, and V four-axis linkage
Maximum Cutting Efficiency	10,000–16,000 mm²/h
Optimal Surface Roughness	Ra ≤ 2.5 μm
Programming System	X8/AUTOCUT
Electrical Capacity	2.5 kVA
Machine Weight	Approximately 1,600 kg

These specifications position the DK45D between general-purpose wire-cut machines and larger heavy-duty taper models. Its working envelope is suitable for medium-sized molds and components, while its 450 mm maximum cutting thickness provides the ability to handle substantial workpiece heights. The 400 kg table load further supports the machining of relatively heavy dies, plates, and precision components.

The machine’s performance should be evaluated as a complete system rather than by a single specification. Cutting angle, workpiece thickness, material type, flushing conditions, wire tension, programmed contour, and desired surface finish all influence actual results. The DK45D is therefore designed to provide a balanced combination of cutting range, taper capability, rigidity, control, and production efficiency.

3. Large-Taper Cutting Capability

The defining feature of the DK45D is its ability to perform large-taper cutting up to ±30° over a 40 mm reference height. This capability is valuable for workpieces requiring inclined walls, sloped cutting edges, nonparallel profiles, or upper and lower contours that are not identical.

In a conventional straight cut, the electrode wire remains substantially vertical while the X and Y axes trace the programmed profile. In a taper operation, the U and V axes adjust the positions of the upper and lower wire guides. The wire therefore forms an angle through the workpiece, allowing the cutting path to vary between the top and bottom surfaces. When the axes are synchronized accurately, the machine can produce a controlled three-dimensional profile.

For mold manufacturers, this can reduce the need for additional manual correction, grinding, or secondary fitting. A tapered die opening, for example, may be cut directly according to the required geometry. In certain applications, a single controlled EDM operation can replace several stages of conventional machining and finishing.

Large-taper cutting is also useful when clearance, demolding, or functional assembly requires a deliberate angle. Stamping dies may need tapered cutting edges. Precision inserts may require different top and bottom dimensions. Aerospace components may include inclined or aerodynamic profiles. In these cases, the ability to control taper directly at the wire-cutting stage improves process flexibility.

The DK45D’s four-axis linkage is particularly important for variable taper work. A fixed-angle machine can create a consistent slope, but a coordinated X/Y/U/V system can support more complex changes in trajectory. The control system calculates the relationship between the programmed contour, the wire position, the cutting angle, and the upper and lower profiles. This provides a practical foundation for spatial cutting tasks that exceed the capabilities of basic two-axis systems.

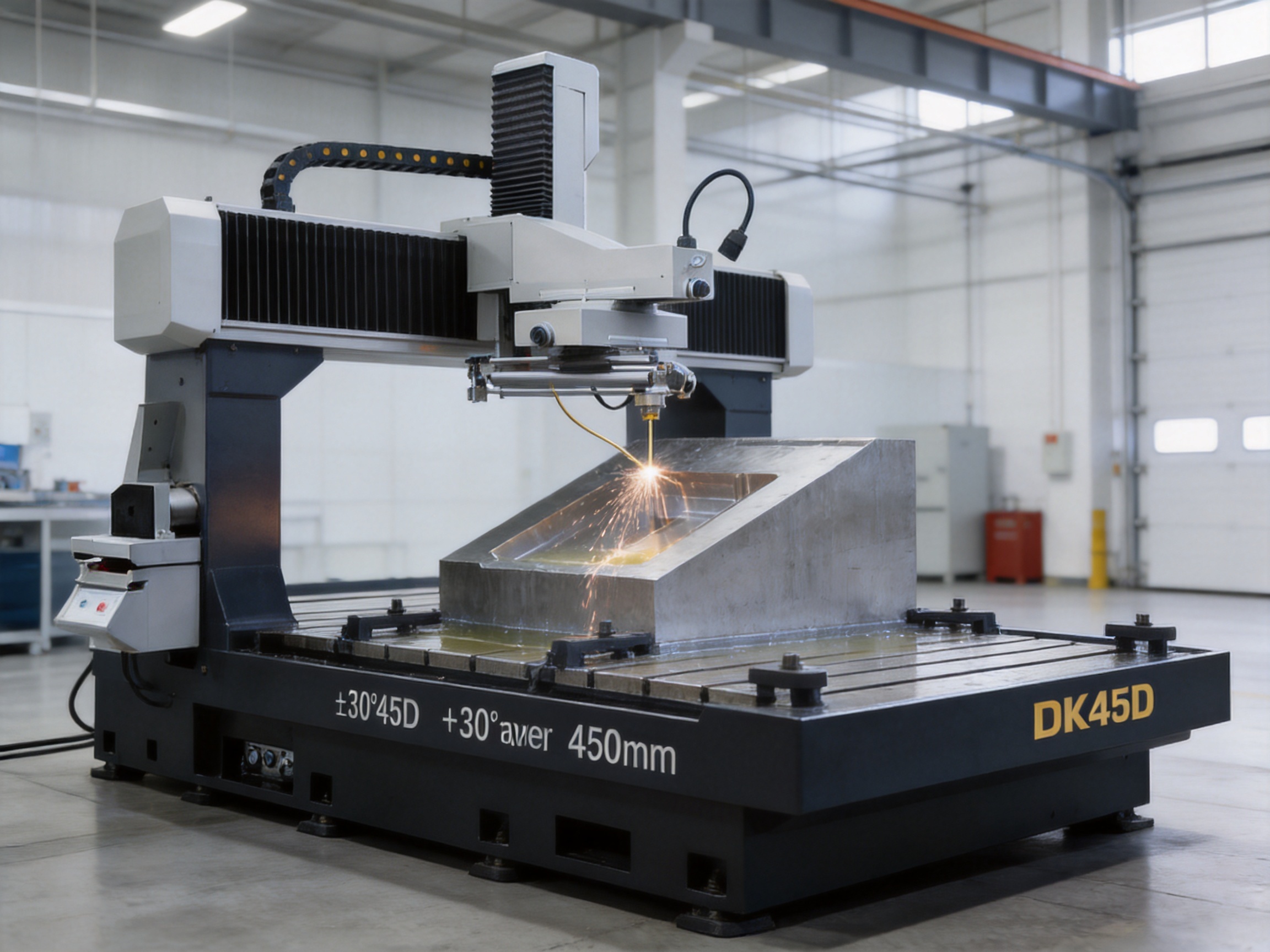

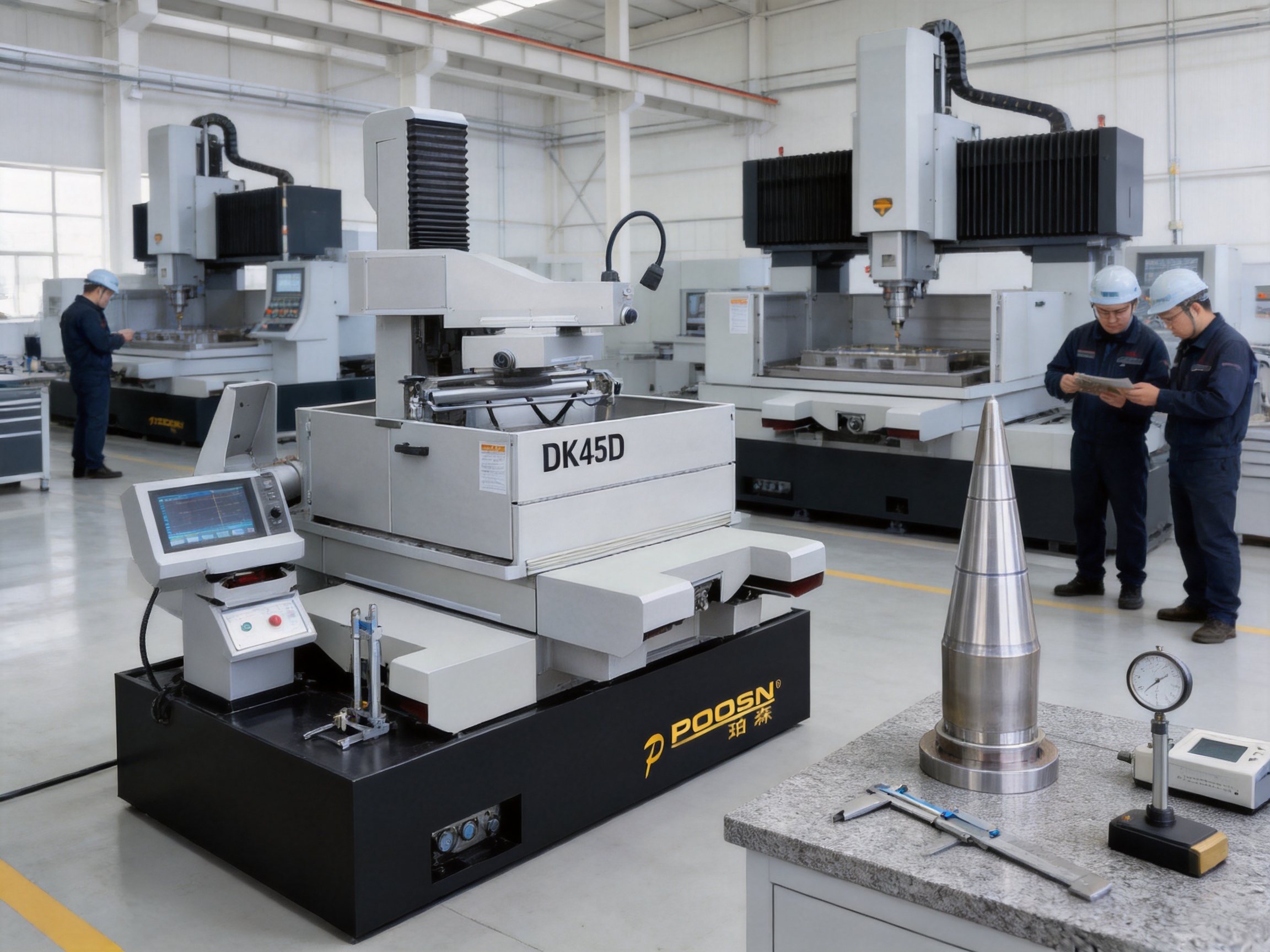

DK45D CNC Large Taper Wire Cut EDM Machine for Precision Mold Machining

4. Precision and Geometric Control

Precision in large-taper wire cutting depends on more than the nominal resolution of the drive system. The machine must maintain accurate movement while the wire is inclined, the workpiece is thick, the discharge gap changes, and flushing conditions vary. Mechanical deflection, thermal changes, wire vibration, guide wear, and inaccurate compensation can all affect the final profile.

The DK45D is specified with a machining accuracy of 0.08 mm and is manufactured in accordance with the GB/T7926-2015 machine tool accuracy standard. Its high-precision linear rail support helps guide the worktable with controlled movement and reduced friction. Linear guides also contribute to repeatable positioning and smoother interpolation during long cutting cycles.

The machine uses X, Y, U, and V four-axis linkage to coordinate the primary cutting movement with the tapering movement. This arrangement allows the controller to apply the necessary geometric relationship between the wire and the programmed part profile. In large-angle cutting, the actual intersection of the wire with the workpiece changes as the wire inclines. Compensation calculations are therefore essential to maintaining the intended contour.

The X8/AUTOCUT control system provides a user-oriented interface for programming and operation. It is intended to reduce the amount of manual calculation required from the operator. By managing complex linkage calculations within the control system, the machine helps operators focus on workpiece setup, process selection, wire threading, flushing, inspection, and production monitoring.

Precision is also supported by the machine’s structural mass. The DK45D weighs approximately 1,600 kg, which helps reduce the influence of vibration during cutting. A heavier and more rigid structure is particularly useful when the machine is processing thick workpieces or when the wire is operating at a substantial inclination. Reduced vibration can contribute to improved surface consistency, lower risk of wire deflection, and more stable dimensional results.

5. Structural Stability for Demanding Cutting Conditions

Large-taper wire EDM creates operating conditions that are more demanding than ordinary vertical cutting. When the wire is inclined, lateral forces and guide loading can increase. The workpiece may also be large, thick, or heavy. If the machine structure lacks rigidity, these conditions can lead to vibration marks, dimensional deviation, or unstable discharge.

The DK45D uses a rigid cast machine structure designed to provide stable support for the worktable and tapering mechanism. High-quality castings can be processed and naturally aged to reduce internal stress before final machining. This type of manufacturing practice helps limit dimensional movement and contributes to the long-term stability of the machine frame.

Structural stability is valuable during both short and extended cutting cycles. A machine may initially produce an accurate part but gradually lose consistency if thermal deformation, guide movement, or structural stress is not controlled. The DK45D is designed to maintain consistent cutting behavior during long-term operation, helping reduce errors and improve repeatability in production environments.

The high-precision linear rail support further contributes to stable movement. Smooth axis travel reduces irregular loading and helps the wire follow the programmed path more accurately. The drive arrangement includes standard XY stepper drives, with optional XY AC servo drives available for users who require enhanced motion control or a higher level of automation.

The machine also includes an eco-friendly waterproof cover as standard equipment. This protects key mechanical areas from dielectric fluid, chips, and workshop contamination. Maintaining a clean working environment around the guides and drive components supports service life and helps preserve the accuracy of the machine.

6. Wire Guidance, Flushing, and Discharge Stability

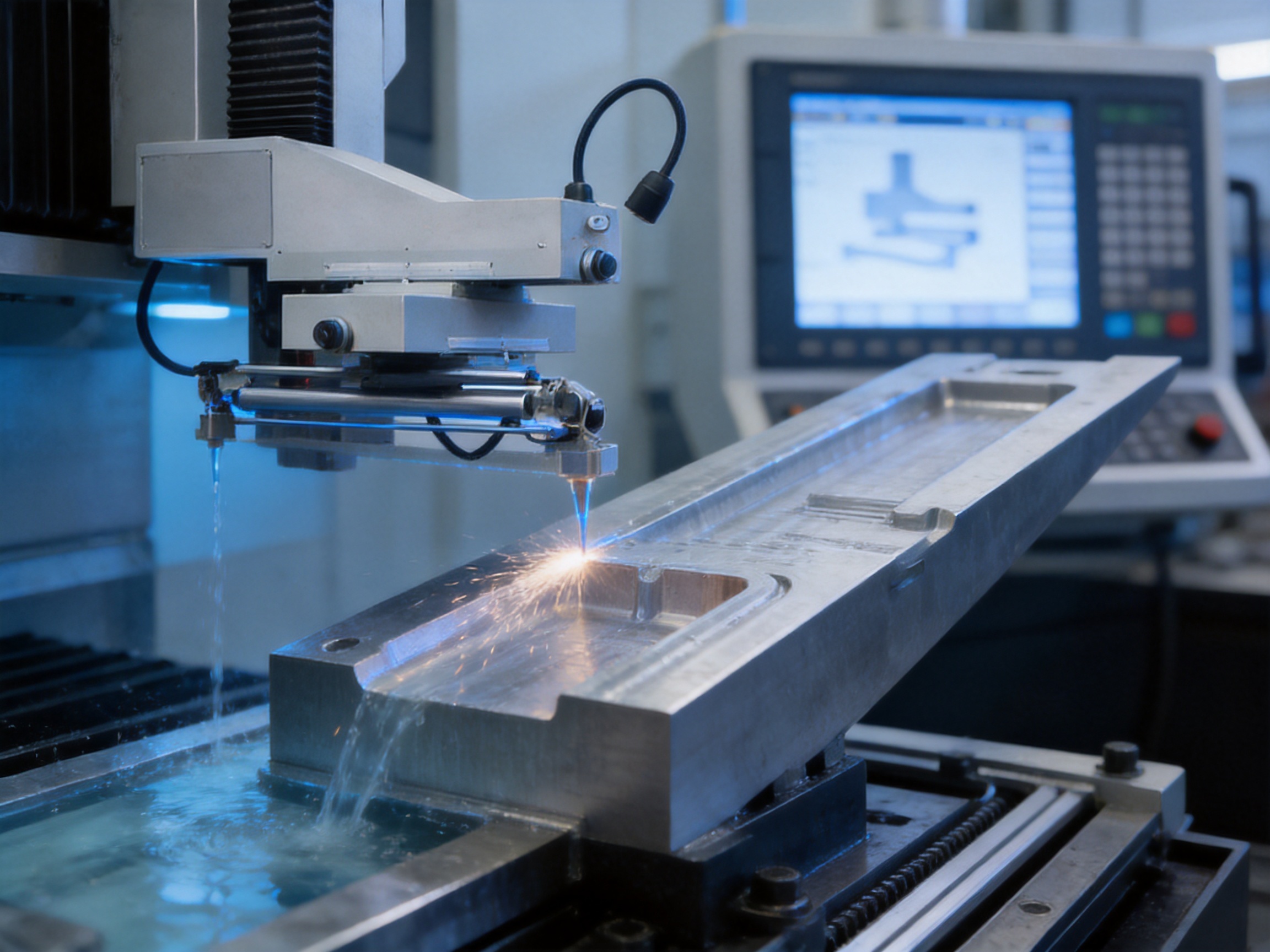

The electrode wire is the active cutting tool in a wire EDM process. Its position must remain accurately controlled as it moves through the workpiece. Any misalignment between the wire guides, flushing nozzles, and workpiece can affect cutting stability and surface quality. The issue becomes more significant when the wire is inclined for large-taper machining.

The DK45D is equipped with a precision wire-guiding system calibrated for its tapering function. The alignment of the wire guides and flushing nozzles is important because dielectric fluid must reach the discharge zone effectively. Stable fluid circulation helps remove eroded particles from the gap and supports a consistent electrical discharge environment.

Insufficient flushing can cause debris accumulation. When eroded particles remain in the cutting gap, they may trigger unstable discharges, short circuits, wire breakage, rough surfaces, or localized overburn. The DK45D uses an optimized dielectric circulation arrangement to help manage these conditions. A high-pressure water tank is available as an optional configuration for applications that require stronger flushing performance.

The wire feed system supports a controlled feed speed from 1 to 11 meters per second, with frequency control. The machine uses a 0.18 mm electrode wire with a wire guider and can store approximately 350 meters of wire. Continuous wire movement supplies a fresh electrode surface to the cutting zone, helping maintain discharge performance during extended machining.

Electrical discharge control is also essential when the effective cutting thickness changes along a tapered path. The machine’s control and power systems can regulate machining conditions according to the programmed operation. Appropriate pulse energy helps prevent excessive thermal concentration at corners and reduces the risk of surface damage, corner collapse, or unstable cutting.

7. Efficiency and Production Cost Advantages

Production efficiency is not determined only by maximum cutting speed. It also depends on setup time, programming effort, operator intervention, rework, secondary finishing, machine availability, and the consistency of completed parts. The DK45D supports efficiency through a combination of cutting capacity, intelligent control, stable motion, and broad application flexibility.

Its maximum cutting efficiency is listed at 10,000–16,000 mm²/h under suitable process conditions. Actual values depend on material, thickness, wire type, cutting mode, flushing, surface finish requirements, and programmed geometry. Even so, the ability to remove material efficiently from hardened or difficult-to-machine conductive materials can provide an important advantage over slower conventional processes.

Large-taper capability may also reduce the number of operations required. When a tapered profile can be produced directly by wire EDM, the manufacturer may reduce dependence on manual grinding, fitting, or additional machining. Fewer process stages can lower labor requirements, reduce handling time, and decrease the risk of cumulative dimensional errors.

The X8/AUTOCUT control system is designed to simplify operation. An intuitive interface is especially valuable in workshops where multiple operators use the same machine or where specialized taper-cutting experience is limited. After appropriate training, operators can prepare programs, set machining parameters, monitor the process, and complete routine tasks with less manual calculation.

Stable operation also contributes to cost control. Unplanned wire breakage, repeated setup, scrap parts, and extended downtime all increase production costs. By combining rigid support, calibrated guides, controlled wire feeding, and intelligent discharge management, the DK45D is intended to reduce process interruptions and improve overall equipment utilization.

8. Advantages Compared with Conventional Wire-Cut Equipment

The DK45D offers several practical advantages when compared with conventional wire-cut EDM equipment designed mainly for straight or limited-angle profiles.

First, its large-taper capability expands the range of parts that can be produced in a single machine. Conventional machines with limited U/V movement may be restricted to small taper angles or constant taper operations. The DK45D is designed for significantly larger inclination, making it more suitable for complex dies, inclined cavities, and spatial profiles.

Second, the DK45D provides four-axis real-time linkage. Basic two-axis wire machines are effective for planar contours but cannot provide the same level of control over upper and lower profiles. The addition of U and V motion allows the machine to coordinate the wire angle with the horizontal cutting path.

Third, the machine’s 450 mm maximum cutting thickness is suitable for substantial workpieces. This makes it more versatile than compact machines intended for thin plates or small components. The 400 kg worktable load also supports heavier mold plates and mechanical parts.

Fourth, the DK45D combines taper performance with a medium-sized footprint and practical working range. Larger models such as the DK55D, DK63D, and DK80D are available for larger workpieces, higher loads, and more demanding production requirements. The DK45D therefore provides a balanced solution for companies that need advanced taper capability without immediately moving to the largest machine category.

Finally, the machine is designed with production practicality in mind. Its control interface, optional servo drives, optional high-pressure water system, standard waterproof cover, and technical support program make it suitable for both established EDM departments and manufacturers expanding into more advanced taper applications.

Comparison Area	Conventional Limited-Taper WEDM	DK45D Large-Taper WEDM
Primary Cutting Mode	Mostly planar or small-angle profiles	Large-angle and spatial profile cutting
Axis Configuration	Basic two-axis or simplified taper movement	X/Y/U/V four-axis linkage
Taper Capability	Limited or constant taper	Up to ±30°/40 mm
Cutting Thickness	Often limited by machine class	Up to 450 mm
Worktable Load	Suitable mainly for lighter components	Up to 400 kg
Application Range	Simple molds and standard profiles	Precision molds, stamping dies, aerospace and automotive parts
Operator Support	Greater manual calculation may be required	X8/AUTOCUT control system with user-oriented operation

9. Manufacturing Strengths of the Supplier

The performance of a machine tool depends significantly on the capabilities of its manufacturer. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has specialized in electrical discharge wire cutting since 1999. The POOSN brand was established in 2003, and the company later developed its own manufacturing facility after the establishment of the current enterprise in 2017.

The company’s product range includes medium-speed wire-cut EDM machines, high-speed wire-cut EDM machines, medium-high-speed models, and large-taper wire-cut machines. This product diversity enables the manufacturer to understand different customer requirements, from economical standard cutting to complex large-angle machining.

Manufacturing strength begins with product design. The DK45D integrates mechanical structure, tapering components, wire transport, dielectric circulation, electrical discharge, CNC control, and operator interface functions. Coordinating these subsystems requires practical knowledge of the full machining process. A manufacturer focused specifically on EDM equipment can develop these systems around the actual needs of wire-cutting users.

The company also maintains advanced processing equipment and comprehensive testing methods. Machine components must be manufactured and assembled with controlled tolerances so that the axes, guides, wire guides, and taper mechanism operate as a coordinated unit. Precision machining of structural and moving parts is therefore essential to the final performance of the completed machine.

Quality control is applied throughout manufacturing and delivery. According to the company’s production philosophy, machine tools undergo positioning accuracy testing and operational verification before shipment. For application-specific orders, simulated machining trials can be performed to confirm that the machine is suitable for the customer’s intended workpiece and process requirements.

The company has also developed technical capabilities in machine-tool automation and has obtained a patent related to a fully automatic CNC machine tool featuring plate-type winding and suction-type adhesive technology. This development history indicates continued investment in specialized mechanical and automation solutions.

10. Quality Assurance and Inspection Process

A wire EDM machine must maintain accuracy not only when it leaves the factory but also throughout daily production. Effective quality assurance therefore includes component inspection, assembly control, axis testing, electrical testing, trial operation, and final verification.

During mechanical production, critical components require dimensional inspection before assembly. Linear guide mounting surfaces, worktable structures, tapering components, wire guide supports, and related interfaces must be controlled carefully. Proper assembly reduces the likelihood of alignment problems and provides a stable foundation for calibration.

After assembly, the machine can be checked for axis positioning, straightness, squareness, repeatability, and movement smoothness. These tests help identify deviations before the machine is delivered to the customer. Electrical systems, control cabinets, drives, wire-feed mechanisms, and dielectric circulation systems must also be tested under operating conditions.

The DK45D is manufactured according to GB/T7926-2015 accuracy requirements. In addition to standard dimensional and positioning checks, the manufacturer emphasizes full-process inspection and final operational testing. A machine may undergo several hours of full-load operation to confirm that its mechanical and electrical systems work reliably under realistic conditions.

Where required, precision parameters can be calibrated with advanced measurement equipment such as a laser interferometer. This type of calibration helps verify the accuracy of axis movement and supports consistent machine performance. The company’s approach combines standardized inspection with customer-focused trial machining, which is particularly useful for users purchasing a large-taper model for a specialized application.

11. Applications in Mold Manufacturing

Mold manufacturing is one of the primary applications for the DK45D. Mold components frequently require hardened tool steel, complex internal profiles, deep cavities, and high dimensional accuracy. Wire EDM is well suited to these requirements because it can machine hardened materials without imposing substantial mechanical cutting forces.

Large stamping dies are an important example. A die may require a tapered cutting edge to control material flow, reduce wear, or provide the necessary clearance between mating components. The DK45D can cut the tapered edge according to a controlled program, potentially reducing the need for manual grinding after EDM.

Precision inserts and mold plates may also include inclined surfaces or nonparallel contours. The four-axis linkage allows the wire to follow a spatial path that would be difficult to achieve with a standard vertical cut. This supports the production of complex cavities, inserts, punches, and forming components.

For mold repair and modification, the machine can cut replacement sections or accurately reproduce profiles in hardened materials. Its 450 mm maximum cutting thickness gives moldmakers greater flexibility when working with substantial plates and blocks. The worktable load of up to 400 kg is suitable for many medium-scale mold components.

12. Applications in Aerospace and Automotive Components

Aerospace manufacturing often requires complex geometries, high-strength alloys, narrow tolerances, and carefully controlled surface conditions. The DK45D can support the production of conductive aerospace components that include inclined surfaces, specialized profiles, or difficult-to-machine contours.

For aerodynamic or structural components, large-taper cutting can be used where the upper and lower profiles differ or where an inclined cutting path is required. The low mechanical force of EDM is helpful for delicate parts that could be distorted by conventional cutting pressure.

In automotive manufacturing, the machine can be used for precision stamping dies, transmission components, steering-related parts, and irregular mechanical profiles. Repeatable wire cutting helps produce consistent geometry across multiple components. When the workpiece material is hardened or difficult to mill, EDM may provide a practical alternative for final profile generation.

The machine is also suitable for specialized gears, precision plates, carbide parts, and other conductive components that benefit from noncontact cutting. Application suitability depends on material conductivity, required tolerances, thickness, surface finish, and production volume. Technical evaluation before purchase is recommended for highly specialized parts.

13. Operator Experience and Control System Usability

Large-taper machining can appear technically complex because the wire angle, upper and lower profiles, workpiece thickness, and axis movements must be coordinated. The DK45D is designed to reduce this complexity through the X8/AUTOCUT control system.

A user-oriented interface helps operators prepare machining programs, enter workpiece information, configure taper data, and monitor the cutting process. The control system manages the relationship between the X/Y cutting path and U/V taper movement. This reduces the need for operators to perform extensive manual geometric calculations.

Nevertheless, correct setup remains essential. Operators must understand workpiece positioning, wire threading, dielectric conditions, datum selection, cutting direction, wire compensation, safety procedures, and inspection methods. The machine’s intuitive interface supports training, but it does not replace process knowledge.

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. provides technical support and operation training to help users establish effective production procedures. This support is particularly valuable for companies that are moving from standard straight cutting to large-taper machining for the first time.

With systematic training, technicians who already have basic wire-cutting experience can learn to operate the DK45D and manage large-taper programs. Training should include both machine operation and practical process development, including trial cutting, parameter adjustment, flushing optimization, and dimensional verification.

14. Model Selection Within the Large-Taper Series

The DK45D is intended for medium-sized components, precision molds, and workpieces that require large-taper cutting within its working range. However, some customers may require a larger machine. The manufacturer offers several related models to cover different production scales.

Model	Recommended Application	Maximum Cutting Thickness	Maximum Worktable Load
DK45D	Medium-sized components and precision molds	450 mm	400 kg
DK55D	Large workpieces and complex components	600 mm	600 kg
DK63D	Extra-large workpieces and heavy-duty precision components	600 mm	800 kg
DK80D	Very large molds and heavy-duty production	800 mm	1,000 kg

The DK55D provides a larger worktable and higher load capacity than the DK45D. The DK63D and DK80D are intended for progressively larger and heavier workpieces. Selecting the correct model requires consideration of workpiece dimensions, maximum thickness, weight, taper angle, production volume, floor space, and future expansion plans.

Customers should avoid choosing a machine solely according to the largest possible cutting thickness. The useful working range must also account for clamping space, wire-guide clearance, flushing access, program geometry, and workholding requirements. A technical discussion with the manufacturer can help determine whether the DK45D or a larger model is the most economical long-term solution.

15. Installation, Maintenance, and Long-Term Reliability

Proper installation is necessary to obtain the expected performance from any precision machine tool. The foundation, floor condition, power supply, water quality, workshop temperature, lifting method, and surrounding environment should be prepared before delivery. The machine requires a stable three-phase 380 V ±10 power supply and adequate space for operation, maintenance, workpiece loading, and dielectric-system access.

Routine maintenance should include inspection of wire guides, wire tension components, flushing nozzles, filters, pumps, dielectric water quality, electrical connections, and axis lubrication. Keeping the waterproof cover and working area clean helps protect the guideways and moving components. Operators should also monitor wire storage, wire feed behavior, and abnormal vibration or noise.

Dielectric water quality has a direct influence on discharge stability. Excessive contamination or unsuitable conductivity can increase wire breakage, unstable cutting, and surface defects. Regular filtration and water management are therefore important parts of the operating procedure.

Preventive maintenance is more economical than waiting for a failure. Scheduled inspection can identify guide wear, loose connections, pump deterioration, abnormal wire movement, or control-system alarms before they cause extended downtime. The manufacturer’s technical support team can assist with maintenance planning, troubleshooting, and replacement of wear parts.

Long-term reliability also depends on using suitable machining parameters. Excessive discharge energy, inadequate flushing, incorrect wire tension, or inappropriate cutting speed can place unnecessary stress on the machine and consumables. A balanced process protects the equipment while maintaining productivity and part quality.

16. Customer Support and Customization

Wire EDM applications vary considerably between industries. One customer may require a large taper for stamping dies, while another may need deep cutting for aerospace components or high repeatability for automotive parts. The manufacturer provides customization and technical support to address these differences.

Worktable sizes and cutting angles can be adapted according to customer requirements in suitable configurations. Optional components include a high-pressure water tank, linear scale, and AC servo drives for the XY axes. These options allow the machine to be matched more closely to the expected workpiece and production environment.

Pre-sales technical communication is important when evaluating a large-taper machine. Customers should provide drawings, material information, maximum thickness, workpiece weight, required taper, tolerance, surface finish, and expected production quantity. Trial cutting can help confirm the proposed configuration and establish realistic process expectations.

After delivery, technical support may include installation guidance, operator training, programming assistance, process recommendations, troubleshooting, and maintenance advice. Rapid response is particularly important when the machine is part of a production line or when the user is developing a new taper-cutting process.

17. Practical Benefits for Manufacturers

The DK45D provides manufacturers with a combination of technical and commercial benefits. Its large-taper capability expands the range of parts that can be accepted. Its medium-sized work envelope makes it suitable for many mold and component manufacturers without the space and investment requirements of the largest machine category.

The machine can help reduce production complexity by integrating taper cutting into the wire EDM process. Fewer secondary operations may improve delivery time and reduce labor cost. Stable four-axis movement and controlled discharge can contribute to repeatable quality, especially for parts that are difficult to produce through mechanical machining.

Its material adaptability is another advantage. The machine can process conductive alloys, hardened steels, and other metals with different hardness levels. Since EDM does not rely on a conventional cutting edge, the hardness of the workpiece after heat treatment is less restrictive than it would be for many mechanical processes.

The machine’s design also supports future production development. A company may initially use the DK45D for standard taper molds and later expand into aerospace, automotive, specialized gears, or custom precision components. The control system and four-axis architecture provide a foundation for more advanced programming as operator experience increases.

18. Recommended Workflow for a Large-Taper Project

A successful large-taper project begins with technical review. The workpiece drawing should be examined to identify the required upper and lower profiles, taper angle, thickness, corner conditions, tolerance, and surface finish. The material must be electrically conductive and suitable for wire EDM.

The next step is workholding and datum planning. The workpiece should be clamped securely and positioned so that the wire guides, flushing nozzles, and taper mechanism have sufficient access. The selected datum must correspond accurately with the CNC program.

After wire threading and alignment, the operator should confirm wire tension, dielectric condition, flushing, and program compensation. A test cut may be recommended for unfamiliar materials or complex geometries. Measurements from the test piece can then be used to refine the process before full production.

During machining, the operator should monitor discharge stability, wire movement, flushing pressure, water condition, and machine alarms. For thick or steep-taper workpieces, stable flushing is especially important. After cutting, the part should be inspected for dimensional accuracy, taper angle, surface roughness, corner condition, and any signs of wire vibration.

Documenting successful parameters helps create a repeatable production standard. Over time, the manufacturer can establish process libraries for different materials, thicknesses, angles, and surface-finish requirements. This improves operator efficiency and reduces the time needed to prepare future jobs.

19. Frequently Asked Questions

Q1: What is the maximum taper angle of the DK45D?

The DK45D supports a maximum cutting taper of ±30° over 40 mm, subject to the specific workpiece geometry, setup, and process conditions. This makes it suitable for large-angle mold and precision component applications.

Q2: What is the maximum cutting thickness?

The maximum listed cutting thickness is 450 mm. Actual cutting performance depends on workpiece material, flushing, wire condition, programmed contour, required surface finish, and the selected machining parameters.

Q3: How heavy can the workpiece be?

The maximum worktable load is 400 kg. The workpiece must also be positioned safely and clamped correctly. Customers with heavier parts should consider larger models such as the DK55D, DK63D, or DK80D.

Q4: Why is four-axis linkage important for taper cutting?

The X and Y axes control the primary horizontal cutting path, while the U and V axes control the upper and lower wire-guide positions. Coordinated movement allows the machine to create inclined and variable spatial profiles that cannot be produced effectively by a basic two-axis machine.

Q5: Can the DK45D machine hardened steel?

Yes. Wire EDM is suitable for many conductive hardened steels, tool steels, alloys, and other difficult-to-machine metals. The material must have sufficient electrical conductivity, and the process parameters must be selected according to its characteristics.

Q6: What surface finish can the machine achieve?

The listed optimal surface roughness is Ra ≤ 2.5 μm. Actual surface finish depends on material, thickness, taper angle, cutting mode, wire condition, flushing, and whether finishing passes are used.

Q7: Is the machine suitable for inexperienced operators?

The X8/AUTOCUT control system provides an intuitive operating interface and handles many of the calculations required for four-axis linkage. Operators still require training in wire EDM safety, programming, setup, maintenance, and inspection. The manufacturer provides technical training and support.

Q8: What optional equipment is available?

Optional configurations include a high-pressure water tank, linear scale, and AC servo drives for the XY axes. The most suitable options depend on the required accuracy, flushing performance, production volume, and automation objectives.

Q9: How does the machine maintain accuracy during long operating periods?

Accuracy is supported by the rigid cast structure, high-precision linear rails, controlled axis movement, calibrated wire guides, stable dielectric circulation, and electrical discharge management. Correct installation, maintenance, and process parameters are also essential.

Q10: Which industries commonly use the DK45D?

Typical applications include precision mold manufacturing, stamping dies, aerospace components, automotive parts, precision machinery, specialized gears, and other conductive components requiring large-taper or complex-profile cutting.

Q11: How should customers choose between the DK45D and a larger model?

The selection should consider workpiece size, maximum thickness, weight, taper requirement, production volume, available floor space, and future capacity needs. The DK45D is suited to medium-sized parts and loads up to 400 kg, while the larger models support heavier and larger workpieces.

Q12: What technical information should be provided before ordering?

Customers should provide part drawings, material, thickness, weight, required taper angle, dimensional tolerance, surface finish, expected quantity, and any special automation or workholding requirements. This information allows the manufacturer to recommend the most appropriate configuration and conduct application verification when necessary.

20. Conclusion

The DK45D CNC Large-Taper Wire-Cut EDM Machine is designed for manufacturers that require more than ordinary planar wire cutting. Its ±30°/40 mm taper capability, 450 mm cutting thickness, 400 kg worktable load, four-axis X/Y/U/V linkage, high-precision linear guides, and X8/AUTOCUT control system provide a strong foundation for complex mold and component production.

Its advantages are not limited to a single performance specification. The machine combines structural rigidity, controlled wire movement, stable flushing, precision motion, practical operator support, and a broad range of optional configurations. These features help address the technical challenges associated with large-angle cutting, thick workpieces, hardened materials, and high-precision profiles.

The manufacturing capabilities of Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. further strengthen the product. The company’s long-term specialization in EDM, in-house technical development, comprehensive inspection procedures, product range, customization services, and after-sales support provide customers with a complete equipment solution rather than an isolated machine purchase.

For medium-sized precision molds, large-taper stamping dies, aerospace components, automotive parts, and specialized mechanical workpieces, the DK45D offers a balanced combination of flexibility, efficiency, precision, and reliability. It is particularly suitable for manufacturers seeking to expand their large-taper machining capabilities while maintaining manageable equipment size and investment.

References

1. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-D Large Cutting Taper WEDM Technical Parameters and Product Information.

2. GB/T7926-2015, Accuracy of Wire-Cut Electrical Discharge Machines.

3. General technical principles of electrical discharge machining and wire-cut EDM process control.

4. Industrial practices for precision mold manufacturing, stamping-die production, and four-axis taper cutting.

5. Technical guidance on dielectric circulation, wire electrode control, flushing, and EDM surface-finish management.

Product: DK45D CNC Large Taper Wire Cut EDM Machine for Precision Mold Machining
