DK-7725 High-Speed Wire EDM: Precision, Productivity, and Reliable Four-Axis Machining

Wire Electrical Discharge Machining, commonly known as WEDM or wire-cut EDM, remains one of the most valuable technologies for producing intricate profiles, hardened components, precision molds, and conductive parts that are difficult to machine by conventional cutting methods. As manufacturers face increasing pressure to improve dimensional accuracy, shorten delivery cycles, and control production costs, the choice of wire-cut EDM equipment has become an important strategic decision.

The DK-7725 CNC High-Speed Wire EDM Machine is designed to address these requirements through a combination of high cutting efficiency, four-axis linkage control, strong load capacity, rigid mechanical construction, and a practical control system. With a maximum worktable load of 250 kg, an X/Y travel of 250 × 320 mm, a maximum cutting thickness of 350 mm, and cutting efficiency of up to 16,000 mm²/h under suitable operating conditions, the machine is positioned for precision mold production, small and medium-sized components, and high-efficiency batch processing.

Manufactured by Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., the DK-7725 reflects the company’s long-term specialization in electrical discharge wire cutting. The manufacturer combines independently developed machine structures, carefully selected electrical systems, precision assembly procedures, and comprehensive inspection methods to provide equipment intended for stable operation in demanding production environments.

Unlike a basic wire-cutting machine that focuses only on movement and discharge, the DK-7725 is presented as an integrated machining solution. Its value is derived from the interaction of the power supply, wire transport mechanism, worktable, guide system, CNC control, cooling and filtration system, and after-sales technical support. When these elements work together correctly, users can achieve reliable cutting performance, consistent surface quality, and reduced production interruptions.

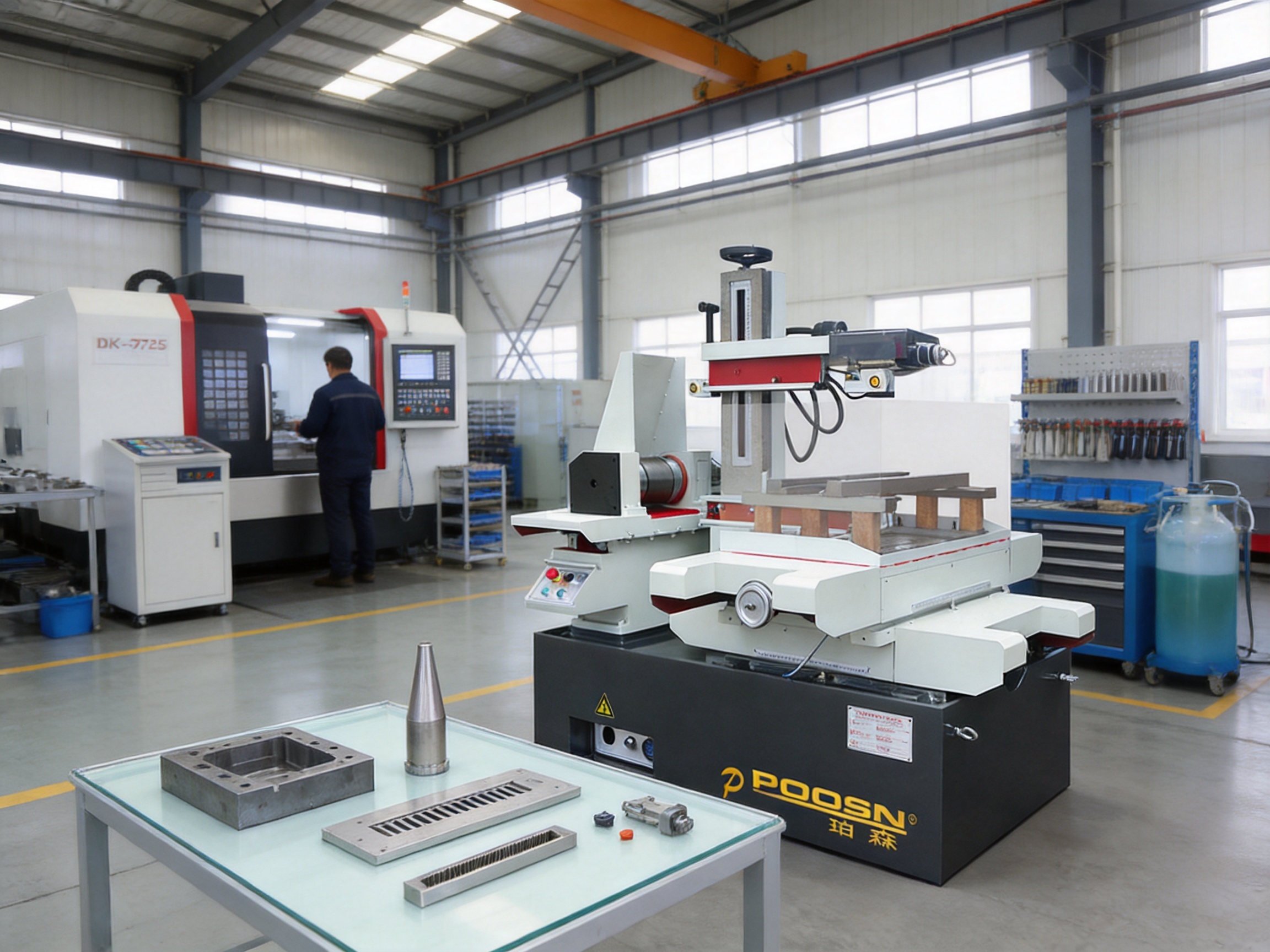

DK-7725 CNC High-Speed Wire EDM Machine (4-Axis, 250kg Load)

1. The Role of High-Speed Wire EDM in Modern Manufacturing

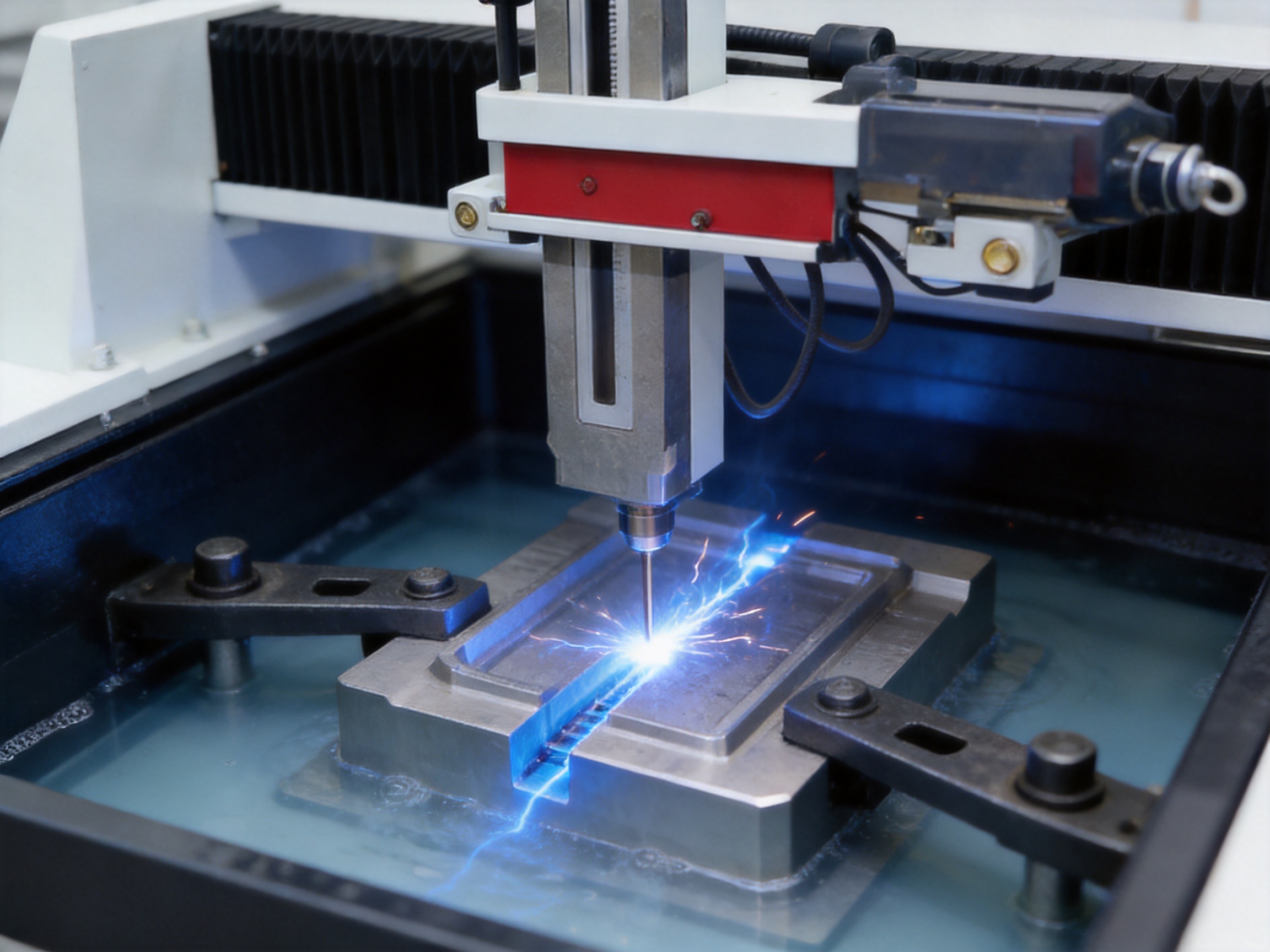

Wire EDM removes material through controlled electrical discharges between a continuously moving electrode wire and a conductive workpiece. The wire does not need to make mechanical contact with the workpiece. Instead, a precisely controlled spark jumps across a small dielectric gap, melting and vaporizing minute quantities of material. Flushing fluid then removes the machining debris from the cutting zone.

This non-contact process provides several important advantages. Because there is no conventional cutting force, delicate or narrow components can be processed with a lower risk of mechanical deformation. Hardened steels, carbide, stainless steel, copper, aluminum, and other conductive materials can be machined after heat treatment, eliminating or reducing the need for separate soft-machining and hard-machining stages.

Wire EDM is also highly effective for complex contours. Internal profiles, narrow slots, sharp corners, small radii, punch shapes, die openings, and precision components can be cut directly from a programmed geometry. When four-axis control is used, the upper and lower wire guides can follow different paths, allowing the machine to produce tapered surfaces and specialized three-dimensional profiles.

Traditional machining methods may require multiple operations, special cutting tools, complex clamping arrangements, or extensive post-processing when working with hardened materials. The DK-7725 addresses these challenges by combining high-speed wire transport with coordinated CNC motion and controlled discharge parameters. This combination helps manufacturers reduce setup complexity and improve the repeatability of recurring production jobs.

2. DK-7725 Product Overview

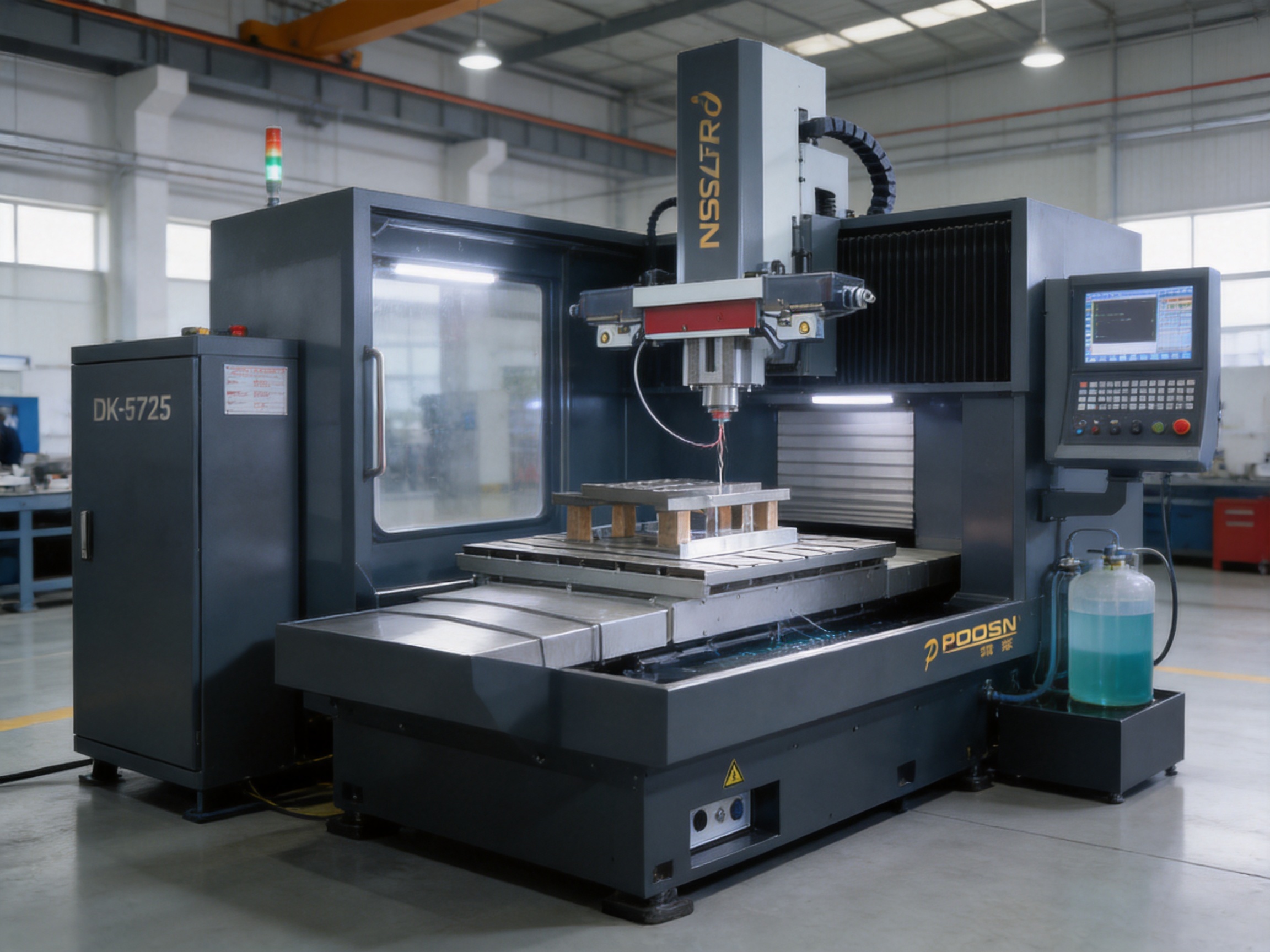

The DK-7725 is a four-axis CNC high-speed wire EDM machine developed for precision machining of small and medium-sized workpieces. Its standard configuration supports X, Y, U, and V axis movement, enabling straight cutting, contour machining, and tapered cutting within the machine’s specified range.

The machine is especially suitable for users who require a balance between productivity and precision. It is compact enough for workshops with limited floor space, yet sufficiently capable for demanding mold and component applications. The 250 kg maximum worktable load allows operators to process substantial workpieces without moving to a much larger machine platform.

Its maximum cutting efficiency is listed at 10,000 to 16,000 mm²/h, depending on the selected CNC cabinet, material, thickness, wire condition, flushing performance, and discharge settings. This performance range gives the machine a practical advantage in production environments where cycle time is a major consideration.

The DK-7725 has an X-axis travel of 250 mm and a Y-axis travel of 320 mm. Its standard worktable measures 410 × 600 mm, while the maximum cutting thickness is 350 mm. The machine supports a maximum cutting taper of ±6° over 80 mm and can achieve an optimal surface roughness of Ra ≤ 2.5 μm under appropriate cutting conditions.

For positioning and dimensional performance, the published machine accuracy standard is GB/T 7926-2015. The stated linear cutting accuracy is 0.005 mm, while taper accuracy is listed as 0.015 mm. Actual results may depend on material, thickness, workpiece preparation, temperature stability, wire condition, flushing, programming, and operator settings. Nevertheless, these specifications demonstrate the machine’s intended positioning within the precision WEDM market.

Key Specifications

Item	DK-7725 Specification
Machine Type	CNC high-speed wire EDM machine
Axis Configuration	X, Y, U, and V four-axis linkage
Worktable Size	410 × 600 mm
X/Y Travel	250 × 320 mm
Maximum Cutting Thickness	350 mm
Maximum Cutting Taper	±6°/80 mm
Maximum Cutting Efficiency	10,000–16,000 mm²/h
Optimal Surface Roughness	Ra ≤ 2.5 μm
Maximum Worktable Load	250 kg
Drive Type	X, Y, U, and V stepper drive with four-axis linkage
Standard Control Cabinet	ZH-K68 desktop cabinet
Optional Control Cabinet	ZHZK-03 vertical cabinet
Power Supply	3N 380 V ±10%
Machine Weight	Approximately 800 kg
Machine Dimensions	Approximately 1,300 × 1,080 × 1,625 mm

The specification profile makes the DK-7725 a practical selection for workshops that need a dedicated precision wire-cutting machine rather than a large-format platform. It provides sufficient travel and load capacity for many mold inserts, punches, dies, tooling plates, precision mechanical components, and small-batch production parts.

3. Four-Axis Linkage for Straight and Tapered Cutting

One of the most important features of the DK-7725 is its four-axis linkage control. The X and Y axes control the primary worktable movement, while the U and V axes control the relative position of the upper and lower wire guides. Through coordinated movement, the machine can create tapered cuts and profiles in which the upper and lower contours are not identical.

This capability is particularly valuable in mold manufacturing. Punches, dies, extrusion components, slanted inserts, and specialized tooling often require a controlled taper rather than a simple vertical wall. A two-axis wire-cutting system may be limited to straight profiles, whereas four-axis control expands the range of geometries that can be produced in one setup.

The maximum specified taper is ±6° over 80 mm. This gives users flexibility for applications that require angled walls while retaining control over the cutting path. The actual achievable taper and surface quality will depend on workpiece height, material, flushing conditions, wire tension, guide alignment, and programming parameters.

Four-axis machining also helps reduce secondary operations. When a tapered or matched profile can be produced directly, the manufacturer may avoid additional milling, grinding, manual fitting, or special fixture work. This can improve overall process efficiency and reduce the opportunity for cumulative errors between operations.

In comparison with simpler high-speed wire EDM machines, the DK-7725 offers greater geometric flexibility without requiring a larger machine platform. This is a meaningful advantage for workshops that process a mixture of straight profiles and tapered components but do not need the large travel ranges of heavy-duty models.

4. High Cutting Efficiency and Production Benefits

Production efficiency is not determined by cutting speed alone. It also depends on how consistently the machine maintains the discharge gap, how effectively debris is flushed away, how reliably the wire moves, how quickly programs can be prepared, and how often the machine must be stopped for adjustment or maintenance.

The DK-7725 is designed around this broader definition of productivity. Its maximum cutting efficiency of up to 16,000 mm²/h can shorten machining time in suitable applications. When matched with an appropriate CNC cabinet and optimized cutting parameters, the machine can support rapid processing for small and medium-sized batches.

High-speed cutting is especially valuable for production components with long profiles or repeated contours. A shorter cycle time allows manufacturers to process more parts during each shift, respond more quickly to urgent orders, and reduce the amount of capital tied up in work-in-progress. Faster completion also improves delivery planning and production scheduling.

The machine’s productivity advantage is strengthened by four-axis capability. A machine that completes a complex tapered contour in one setup may be more efficient than a machine that requires several separate operations. The reduction in clamping, alignment, inspection, and transfer time can be significant, particularly for components with strict positional requirements.

Another important factor is process stability. Unplanned wire breakage, unstable discharge, poor flushing, or inaccurate guide alignment can erase the benefit of a high nominal cutting rate. The DK-7725 uses a precision electronic control system and a stable mechanical structure to support consistent performance during extended machining cycles.

For manufacturers comparing different suppliers, the relevant question is not only “How fast can the machine cut?” but also “How consistently can it maintain useful production output?” A well-integrated system with dependable mechanical and electrical components can deliver better practical productivity than a machine with a higher advertised speed but frequent interruptions.

5. Precision, Surface Finish, and Machining Stability

Precision wire EDM requires more than accurate axis movement. The machine must control the distance between the wire and workpiece, stabilize the discharge pulse, manage the wire path, maintain suitable flushing pressure, and minimize the effect of vibration and thermal deformation.

The DK-7725 is built around a rigid cast structure intended to dampen vibration and support stable positioning. The machine bed uses high-rigidity HT250 cast iron, and the castings are described as undergoing aging treatment. Proper aging helps reduce internal stress in cast components, which can contribute to long-term dimensional stability.

Rigid construction is particularly important when processing heavy molds. A workpiece can weigh close to the machine’s 250 kg load limit, and the table must support that load while maintaining smooth movement. Excessive structural flexing or vibration may affect edge quality, dimensional accuracy, and the consistency of narrow features.

The machine’s stated linear cutting accuracy of 0.005 mm and taper accuracy of 0.015 mm indicate its suitability for precision molds and mechanical components. These figures should always be evaluated together with the applicable inspection standard and testing conditions. Production accuracy depends on the complete process, including environmental temperature, material condition, workpiece clamping, wire quality, and machine calibration.

The listed optimal surface roughness of Ra ≤ 2.5 μm is suitable for many mold and tooling applications. A fine surface finish can reduce polishing time and help improve the functional performance of mating components. In some applications, additional finishing passes may be used to improve the surface further or meet specialized requirements.

Control algorithms also influence finish quality. When the machine approaches sharp corners, narrow slots, arcs, or changes in cutting direction, discharge conditions can become more difficult to maintain. The DK-7725’s digital control system is designed to adjust machining parameters in response to the programmed path, helping to maintain a more uniform surface texture across complex contours.

6. Mechanical Structure and Transmission System

The mechanical design of a wire EDM machine determines how accurately the equipment can respond to programmed commands over many years of operation. The DK-7725 uses a rigid bed, precision guide rails, and lead-screw transmission components selected to provide smooth movement and positioning accuracy.

Low-friction guideways help reduce resistance during table movement. Smooth travel is important because sudden changes in motion can influence wire position and create visible errors on the cut surface. Precision lead screws support controlled displacement and help the machine execute long trajectories with predictable movement.

The design also takes heavy workpieces into account. When the table is carrying a large mold or tooling plate, the transmission system must maintain stable motion without excessive vibration. The combination of structural rigidity and controlled drive movement contributes to reliable cutting results under varying loads.

Stepper drive is specified for the X, Y, U, and V axes. This configuration provides a practical balance between control capability, serviceability, and cost. Four-axis linkage allows the machine to perform coordinated taper cutting while maintaining a relatively straightforward electrical and mechanical architecture.

For many manufacturers, a straightforward architecture is an advantage. It can make troubleshooting easier, reduce the complexity of routine service, and simplify the replacement of common wear components. The design philosophy of the manufacturer emphasizes modularity and ease of maintenance, which can help reduce downtime when service is required.

7. Pulse Power Supply and Discharge Control

The pulse power supply is the electrical core of a wire EDM machine. It determines how energy is delivered to the discharge gap and directly influences cutting speed, wire wear, surface finish, dimensional stability, and the risk of wire breakage.

The DK-7725 uses a high-frequency pulse power supply system designed to improve the consistency of electrical discharge during high-speed wire travel. By monitoring the discharge gap and adjusting electrical conditions, the system helps maintain a stable spark process between the electrode wire and the workpiece.

Stable pulse control is particularly important when cutting thick sections. As the cutting depth increases, the removal of debris becomes more difficult and the electrical conditions within the gap can change. If the gap becomes unstable, the machine may experience short circuits, wire vibration, or breakage. A well-controlled power supply helps reduce these risks.

Operators can adjust pulse width, pulse interval, current, and other relevant parameters according to the material and thickness being processed. Hardened steel, carbide, copper, aluminum, and stainless steel have different electrical and thermal characteristics, so appropriate parameter selection is necessary for both productivity and quality.

The high-frequency power system also supports the machine’s ability to balance speed and finish. Higher energy settings may be used for rough cutting, while lower-energy finishing passes can be applied to improve surface quality and dimensional accuracy. This process flexibility makes the machine useful for both fast material removal and precision contour finishing.

Compared with low-cost machines that rely on less refined discharge control, the DK-7725 is intended to offer more stable machining behavior across different operating conditions. This can improve productivity by reducing the need for repeated manual adjustments and minimizing interruptions caused by unstable sparking.

8. Wire Transport, Tension, and Flushing

The wire transport mechanism has a direct effect on cutting accuracy and surface finish. The electrode wire must travel smoothly through the upper and lower guides while maintaining appropriate tension. Excessive vibration or inconsistent tension can cause profile errors, roughness, wire marks, and increased breakage.

The DK-7725 incorporates a constant-tension control concept intended to stabilize the molybdenum wire during machining. Consistent tension helps the wire maintain a predictable position within the cutting gap. This is particularly useful when producing narrow features, sharp corners, and extended contours.

Regular inspection of guide wheels, guide nozzles, conductive blocks, and other wire-contact components is essential. Wear in these parts can change the wire position or introduce instability. Keeping the wire path clean and properly aligned also helps protect the wire and maintain cutting consistency.

Flushing is equally important. Electrical discharge generates particles that must be removed from the cutting area. If debris accumulates, it can interfere with the discharge gap, reduce cutting efficiency, and increase the risk of short circuits. A multi-stage industrial cooling and filtration system helps maintain cleaner working fluid and more stable machining conditions.

Effective flushing must be matched to the workpiece thickness and geometry. Thick sections, narrow slots, and deep cavities may require careful adjustment of fluid flow and pressure. Operators should avoid assuming that maximum flushing pressure is always best; excessive flow may affect a delicate wire, while insufficient flow may leave debris in the gap.

The combination of constant wire tension, stable guide components, and clean filtered fluid gives the DK-7725 a process foundation that supports both high-speed rough cutting and fine finishing. These systems may appear secondary compared with the CNC controller, but they are essential to achieving dependable results.

9. CNC Control and Operator Usability

The control system is the interface between the operator, the programmed geometry, and the machine’s physical actions. A useful WEDM control system should support accurate path execution, four-axis interpolation, parameter adjustment, machining monitoring, and convenient production management.

The DK-7725 is equipped with a CNC system that supports four-axis simultaneous control. This enables coordinated X, Y, U, and V movement for tapered and complex profiles. The system is designed with a graphical operating interface intended to reduce operational complexity and help operators prepare jobs efficiently.

A clear interface is important in workshops where operators have different levels of technical experience. Basic tasks such as program loading, coordinate setting, parameter selection, machining start, and alarm review should be straightforward. A user-friendly system can shorten training time and reduce the possibility of avoidable setup errors.

The DK-7725 is available with a standard ZH-K68 desktop control cabinet. A ZHZK-03 vertical cabinet is offered as an optional configuration. The cabinet selection allows customers to choose an arrangement that fits their workshop layout, operator preference, and installation requirements.

Path algorithms can also improve machining quality. During contour cutting, the system may need to manage changes in direction, corner transitions, acceleration, and discharge conditions. By analyzing the programmed trajectory and adjusting machining parameters, the control system helps reduce irregular surface textures around complex features.

For production environments, control reliability is as important as interface simplicity. An industrial-grade cabinet, appropriate grounding, stable power supply, and clean installation environment all contribute to dependable operation. The recommended power supply is 3N 380 V ±10%, and the installation should comply with local electrical and safety requirements.

10. Manufacturing Strengths of the Equipment Supplier

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has specialized in electrical discharge wire cutting since 1999. This long period of involvement in WEDM provides the company with experience in machine design, electrical discharge technology, component selection, assembly, commissioning, and application support.

The POOSN brand originated in 2003, and the company continued to develop its product capabilities through cooperation, market expansion, and factory investment. In 2007, cooperation with Bingfeng CNC helped the company expand its presence in the southern market. The company was recognized as an Advanced Unit for Quality and Reputation in 2009.

In 2017, Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. was established with registered capital of 60 million yuan and its own factory. This foundation supports a more complete manufacturing process, including machining, assembly, inspection, testing, and equipment commissioning.

The company reports strong technical capabilities, advanced processing equipment, comprehensive testing methods, and rational product design. Its machines are manufactured according to national standards, and each machine tool undergoes positioning accuracy testing before delivery. These procedures are important because the quality of a WEDM machine depends not only on its design drawings but also on the accuracy of actual assembly and final inspection.

The manufacturer’s product portfolio includes PS-C and DK77-BC series medium-speed wire-cutting EDM machines, DK77-A and DK77-B series high-speed wire-cutting EDM machines, and DK77-D series large-taper wire-cutting EDM machines. This range allows the company to serve different applications, from general-purpose production to large workpieces and specialized taper cutting.

The company also obtained a patent in 2018 for a fully automatic CNC machine tool featuring plate-type winding and suction-type adhesive technology. In 2021, it was recognized as a High-Tech Enterprise in Taizhou. These milestones indicate an ongoing focus on product development and manufacturing capability rather than simple equipment resale.

Manufacturing and Quality-Control Advantages

One advantage of sourcing from a specialized manufacturer is that product feedback can be transferred directly into future machine design. Experience with customer applications helps the engineering team understand common problems such as wire breakage, guide wear, unstable flushing, inconvenient maintenance, and operator training requirements.

Another advantage is the ability to coordinate mechanical and electrical systems during assembly. The machine bed, guide rails, screws, drive units, control cabinet, pulse power supply, wire transport mechanism, and filtration equipment must operate as one system. A supplier with experience across these areas can provide more consistent machine integration than a company that simply combines unrelated third-party components.

Inspection is also essential. Positioning accuracy, axis travel, taper movement, electrical safety, control response, and operating stability should be checked before shipment. Comprehensive testing helps identify assembly problems early and gives customers greater confidence during installation.

The company’s technical support system includes installation, commissioning, operator training, maintenance guidance, performance inspections, spare-parts support, and software updates. This service structure is valuable for customers who want to reduce the risk of extended downtime after purchasing a machine.

11. Competitive Advantages of the DK-7725

The DK-7725 competes in a market that includes entry-level high-speed wire EDM machines, conventional medium-speed machines, and more expensive high-precision systems. Its competitive position is based on providing a useful combination of capabilities rather than relying on only one specification.

First, the machine offers four-axis linkage in a compact platform. This is a significant advantage over simpler two-axis systems that are restricted to vertical profiles. Users can process tapered components and more complex shapes without immediately investing in a larger or more specialized machine.

Second, the 250 kg worktable load is substantial for a machine with the DK-7725’s travel range. It supports a wider selection of molds, tooling plates, and mechanical components than a light-duty machine. This helps workshops accept more varied orders and reduces the need to divide or redesign workpieces because of load limitations.

Third, the machine is designed for high cutting efficiency. A maximum performance range of 10,000 to 16,000 mm²/h can provide a practical productivity advantage over slower conventional wire-cutting equipment, particularly in batch work and long-contour cutting.

Fourth, the machine combines precision specifications with a serviceable mechanical architecture. The stated 0.005 mm linear cutting accuracy, 0.015 mm taper accuracy, and Ra ≤ 2.5 μm optimal surface roughness make it suitable for precision work, while the use of stepper drive and modular components can help keep maintenance accessible.

Fifth, the machine is supported by a manufacturer with a broad product range. If a customer later needs a larger table, greater load capacity, or a large-taper configuration, the company can provide related models such as DK-7735, DK-7745, DK-7745F, DK-7755F, DK-7763F, DK-7780F, and DK-77100F. This provides a potential path for equipment expansion.

Finally, the DK-7725 is not limited to one material or one industry. Its ability to process conductive materials, including quenched steel, carbide, stainless steel, copper, and aluminum, allows it to support diverse production requirements. This flexibility can improve equipment utilization and shorten the return-on-investment period.

12. Typical Applications

Mold Manufacturing

The DK-7725 is well suited to mold manufacturing because it can cut hardened tool steels and complex profiles with limited mechanical force. Mold inserts, punches, dies, cavity components, guide elements, and precision plates can be produced with accurate contours and controlled surface finish.

Four-axis taper cutting is useful for die openings, draft-related geometries, and components in which the upper and lower profiles differ. The ability to complete these features in one setup can reduce manual fitting and help maintain the relationship between connected surfaces.

Precision Machinery

Manufacturers of precision machinery can use the machine for shafts, plates, mechanical profiles, slots, gears, special keys, and custom components. It is especially useful when the material is hardened or when the shape would require a special cutting tool using conventional processes.

The non-contact machining process can also benefit thin sections and delicate components. Proper support and workholding remain necessary, but the absence of cutting pressure reduces the risk of mechanical distortion compared with milling or sawing.

Automotive Components

Automotive tooling and component production often require repeatable profiles, hardened materials, and efficient batch processing. The DK-7725 can support the production of precision dies, tooling inserts, forming components, and specialized metal parts used in automotive manufacturing.

Aerospace and High-Precision Components

Aerospace manufacturing demands close control over dimensions, material behavior, and traceability. The DK-7725 can process conductive alloys and hardened components used in specialized aerospace tooling and precision parts. Users should validate each application through sample cutting and inspection before beginning critical production.

Electronic Equipment and Small Parts

Electronic equipment manufacturing often involves small components, narrow slots, thin profiles, and complex shapes. Wire EDM can produce these features with excellent geometric flexibility. The DK-7725’s compact working range makes it suitable for many small and medium-sized electronic and precision mechanical parts.

13. Selecting the Appropriate Model in the Product Family

The DK-7725 is the smallest model in a related group of DK-77 high-speed wire EDM machines. Model selection should be based on workpiece dimensions, required travel, maximum thickness, table load, workshop space, and expected future production needs.

The DK-7725 is suitable for small and medium-sized parts, precision molds, and high-precision small-batch production. The DK-7735 provides a larger worktable and increased X/Y travel for medium-sized components and molds. The DK-7745 is intended for larger parts and high-precision molds, while the DK-7745F offers additional capacity for larger and heavier workpieces.

For substantially larger workpieces, the product family includes DK-7755F, DK-7763F, DK-7780F, and DK-77100F. These machines provide progressively greater table dimensions, travel ranges, thickness capacities, and load capacities. Customized options are available for DK-77100 and larger machines according to the provided product information.

Model	Worktable Size	X/Y Travel	Maximum Thickness	Maximum Load
DK-7725	410 × 600 mm	250 × 320 mm	350 mm	250 kg
DK-7735	500 × 750 mm	350 × 450 mm	450 mm	300 kg
DK-7745	570 × 850 mm	450 × 550 mm	450 mm	400 kg
DK-7745F	570 × 950 mm	450 × 650 mm	450 mm	500 kg

Choosing the smallest suitable model can reduce purchase cost, energy consumption, floor-space requirements, and installation complexity. However, customers should also consider future growth. If workpieces are likely to become larger or heavier, selecting a model with additional capacity may provide better long-term value.

14. Installation and Operating Considerations

Correct installation is essential for achieving the machine’s stated performance. The foundation should be stable and capable of supporting the machine weight. The installation area should be protected from excessive vibration, direct heat sources, large temperature fluctuations, and contamination that could affect the working fluid or electrical cabinet.

Temperature stability is especially important for precision machining. Thermal expansion in the machine structure, workpiece, guide components, or wire system can influence dimensional accuracy. A controlled workshop environment is recommended when tight tolerances are required.

The machine should be properly grounded and connected to a stable power supply. The specified supply is 3N 380 V ±10%, but customers must verify local electrical standards, phase configuration, protection devices, cable sizing, and installation regulations before commissioning.

Operators should inspect the worktable, wire path, guide wheels, conductive blocks, filtration system, and working fluid before starting production. The workpiece must be securely supported and electrically connected. Poor workholding can cause movement or vibration, while inadequate electrical contact can create unstable discharge.

Before full production, a sample cut should be performed. This allows the operator to verify program coordinates, workpiece alignment, wire travel, flushing, taper settings, cutting parameters, and dimensional results. Sample validation is particularly important for new materials or unfamiliar thicknesses.

15. Maintenance and Service Life

Routine maintenance helps protect accuracy and extend machine service life. The automatic lubrication system reduces manual intervention and supports the smooth operation of guide and transmission components. Nevertheless, lubrication levels and delivery points should be checked according to the manufacturer’s maintenance schedule.

Guide wheels and guide nozzles should be inspected for wear. Even small changes in guide condition can influence wire position and cutting accuracy. Conductive blocks should be kept clean and correctly positioned to ensure reliable electrical contact and reduce abnormal wire wear.

The working fluid should be filtered and replaced or replenished according to its condition. Contaminated fluid can reduce discharge stability, increase the possibility of wire breakage, and affect surface quality. Filters should be cleaned or replaced before they become excessively blocked.

The operator should also monitor unusual sounds, vibration, temperature, alarm messages, wire consumption, and changes in cutting quality. Early detection of abnormal conditions can prevent larger failures and reduce repair costs.

The manufacturer emphasizes modular design and ease of maintenance. Core circuit boards and mechanical transmission components are intended to be accessible for disassembly and replacement. Combined with spare-parts availability and technical support, this approach can help reduce equipment downtime.

Service support includes installation and commissioning, operator training, technical consultation, regular performance inspections, and software updates. This is particularly valuable for customers purchasing their first CNC wire EDM machine or expanding into four-axis taper processing.

16. How to Improve Cutting Results with the DK-7725

Achieving consistent results requires a systematic approach. Operators should begin by confirming the material type, thickness, electrical conductivity, required tolerance, desired surface roughness, and contour complexity. These factors determine the most appropriate roughing and finishing strategy.

For rough cutting, the machine can use higher discharge energy to remove material efficiently. Finishing passes should use suitable lower-energy parameters to improve the surface and bring the workpiece closer to the final dimension. The number of finishing passes depends on the tolerance and surface requirements.

Wire tension should be set appropriately for the workpiece and cutting condition. Excessive tension may increase stress on the wire and guide components, while insufficient tension can increase vibration. The wire path should be checked whenever a new wire type, workpiece thickness, or guide configuration is introduced.

Flushing should be adjusted to remove debris without destabilizing the wire. Thick workpieces may require particular attention to fluid circulation. If the cut becomes unstable, operators should review flushing, electrical parameters, wire condition, workpiece conductivity, and alignment before simply increasing cutting power.

Workpiece alignment is another critical factor. Accurate edge finding, datum setting, and program verification reduce the risk of positional errors. For repeated production, standardized setup sheets can help maintain consistent results between operators and shifts.

Finally, regular measurement should be included in the production process. Dimensional inspection of the first part, periodic sampling, and final verification help identify drift before a large quantity of nonconforming parts is produced.

17. Frequently Asked Questions

Q1: What is the main advantage of the DK-7725?

The main advantage is its combination of high-speed cutting, four-axis linkage, precision control, and a 250 kg worktable load in a relatively compact machine platform. It is designed for high-precision molds, small and medium-sized components, and efficient small-to-medium batch production.

Q2: What materials can the machine process?

The DK-7725 can process conductive materials such as steel, stainless steel, aluminum, copper, quenched steel, and cemented carbide. Cutting parameters should be adjusted according to the material’s electrical and thermal properties.

Q3: What is the maximum workpiece size?

The machine has an X-axis travel of 250 mm and a Y-axis travel of 320 mm. The worktable measures 410 × 600 mm, and the maximum cutting thickness is 350 mm. The maximum worktable load is 250 kg. Actual workpiece dimensions must also allow adequate clamping, wire access, flushing, and safe machine operation.

Q4: Can the DK-7725 cut tapered profiles?

Yes. Its X, Y, U, and V four-axis linkage control supports tapered cutting. The listed maximum cutting taper is ±6° over 80 mm, subject to workpiece height, setup accuracy, guide condition, and cutting parameters.

Q5: Is the DK-7725 suitable for mass production?

Yes. Its high cutting efficiency, CNC programming, four-axis control, and stable discharge system make it suitable for repeated production. It is particularly appropriate for high-precision small and medium-sized batch work. Production trials should be performed to establish the best parameters for each part.

Q6: What surface finish can be achieved?

The optimal surface roughness is listed as Ra ≤ 2.5 μm. The final result depends on material, thickness, discharge settings, wire condition, flushing, finishing passes, and machine maintenance.

Q7: What control cabinets are available?

The standard configuration uses a ZH-K68 desktop cabinet. A ZHZK-03 vertical cabinet is available as an option. Customers can select the arrangement that best suits their workshop layout and operating preferences.

Q8: How can wire life be extended?

Operators should maintain correct constant tension, inspect guide wheels and guide nozzles, keep the working fluid clean, adjust conductive block positions correctly, and avoid unstable discharge conditions. Proper parameter selection for the material and thickness also helps reduce abnormal wire wear.

Q9: What environment is recommended for installation?

The machine should be installed in an area with limited temperature fluctuation, minimal vibration, appropriate grounding, and no strong electromagnetic interference. A stable foundation and adequate space for operation, maintenance, fluid handling, and electrical access are also required.

Q10: Does the manufacturer provide customization?

Yes. The manufacturer provides customized machining solutions based on customer requirements. Customization may involve machine configuration, control cabinet selection, application support, and solutions for specialized workpieces. Specific customization details should be confirmed before order placement.

Q11: How does the DK-7725 compare with a basic two-axis wire EDM machine?

The DK-7725 provides four-axis linkage, allowing tapered and more complex profiles that may not be possible on a basic two-axis machine. It also combines higher cutting efficiency, a 250 kg load capacity, and an integrated control and discharge system, giving it broader application capability.

Q12: What support is available after purchase?

Support includes installation and commissioning, machine leveling and accuracy testing, operator training, maintenance guidance, technical consultation, performance inspections, software updates, and spare-parts assistance. The goal is to help customers achieve stable operation and long-term equipment effectiveness.

18. Conclusion

The DK-7725 CNC High-Speed Wire EDM Machine is designed for manufacturers that need precision, productivity, and practical flexibility in one platform. Its four-axis linkage supports tapered and complex profiles, while its high-speed cutting capability helps reduce machining time. The 250 kg table-load capacity expands the range of workpieces that can be handled, and the 350 mm maximum cutting thickness supports a wide variety of molds and precision components.

The machine’s competitive strength comes from the way its systems are combined. Rigid HT250 cast construction, precision transmission components, controlled high-frequency pulse power, constant wire tension, industrial cooling and filtration, and a graphical CNC interface work together to support stable machining. These features provide a more complete solution than a basic wire-cutting machine focused only on axis movement.

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. adds further value through its long experience in electrical discharge wire cutting, dedicated factory, product range, inspection procedures, technical development, and after-sales service. Since 1999, the company has built expertise in the research, production, and support of wire-cutting equipment for domestic and international users.

For precision mold manufacturing, machinery processing, electronic components, automotive tooling, aerospace-related parts, and other conductive materials, the DK-7725 offers a balanced combination of accuracy and efficiency. When properly installed, programmed, maintained, and matched to the intended workpiece, it can help manufacturers improve production capacity, reduce machining time, control operating costs, and achieve more reliable results.

Customers evaluating the machine should review their workpiece dimensions, material types, thicknesses, taper requirements, production volume, floor space, electrical conditions, and future expansion plans. With these factors properly considered, the DK-7725 can serve as a dependable high-speed WEDM solution for precision-oriented manufacturing.

References

1. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. Product information for the DK-7725 CNC High-Speed Wire EDM Machine.

2. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. DK-77 Series High-Speed Wire EDM Machine Technical Specifications.

3. GB/T 7926-2015. Accuracy Inspection of Wire-Cut Electrical Discharge Machines.

4. General principles of wire electrical discharge machining, including pulse discharge, dielectric flushing, wire transport, and CNC contour control.

5. Industrial maintenance practices for CNC wire-cut EDM systems, including guide inspection, filtration, lubrication, grounding, and discharge-parameter management.

6. Precision mold manufacturing practices for hardened conductive materials and tapered profile machining.
