DK45D Large-Taper Wire-Cut EDM Machine for Precision Mold and Complex-Part Manufacturing

Modern mold manufacturing, aerospace production, automotive engineering, and precision machinery increasingly require machining systems that can cut difficult materials while maintaining dimensional consistency, surface quality, and reliable productivity. Conventional cutting processes often become inefficient when a workpiece contains a deep profile, a steep taper, a complex contour, or a combination of upper and lower shapes. In these applications, a large-taper wire-cut electrical discharge machining machine can provide a practical and accurate solution.

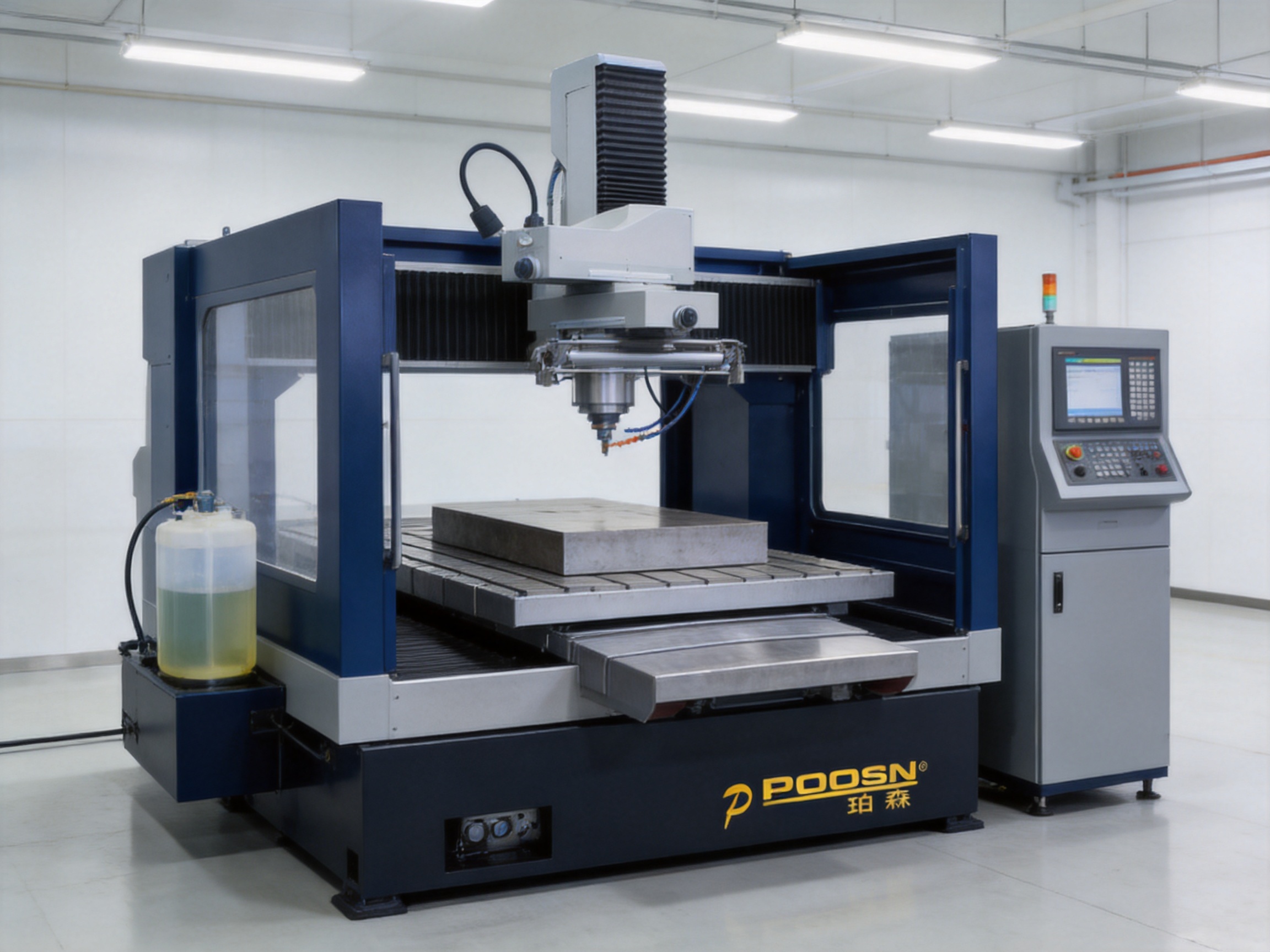

The DK45D CNC Large-Taper Wire-Cut EDM Machine is designed for demanding applications that require substantial taper angles, high cutting thickness, and stable four-axis interpolation. Its primary strength is the coordinated movement of the X, Y, U, and V axes, which allows the electrode wire to assume a controlled spatial angle while following complex programmed contours. This configuration enables manufacturers to produce tapered punches, dies, inserts, precision mechanical components, and other parts that are difficult to complete with standard two-axis wire-cut equipment.

With a maximum cutting thickness of 450 mm, a maximum worktable load of 400 kg, and a maximum cutting taper of ±30° per 40 mm, the DK45D is positioned as a versatile solution for medium-sized components and high-precision molds. It combines a rigid mechanical structure, high-precision linear guide support, an X8 AUTOCUT control system, frequency-controlled wire transport, and a maximum cutting efficiency of 10,000 to 16,000 mm²/h. These features allow it to address both the geometric challenges of large-taper machining and the production requirements of industrial users.

DK45D CNC Large Taper Wire Cut EDM Machine for Precision Mold Machining

1. The Role of Large-Taper Wire EDM in Advanced Manufacturing

Wire electrical discharge machining removes material through controlled electrical discharges between a continuously moving electrode wire and a conductive workpiece. Because the process does not depend on direct mechanical contact between a cutting tool and the workpiece, it can machine hardened steel, carbide, alloys, and other conductive materials without imposing conventional cutting forces on the part.

This operating principle is especially useful in mold and die production. After heat treatment, many mold components become too hard for ordinary milling or turning operations. A wire EDM machine can cut these materials with a fine wire electrode while maintaining a narrow kerf and a controlled thermal process. The result is a machining method that can be used after hardening, reducing the risk of distortion caused by later heat-treatment operations.

Standard wire-cut EDM machines are generally optimized for vertical or nearly vertical profiles. They can produce highly accurate two-dimensional contours, but their tapering systems may have limited travel. When a workpiece requires a significant inclination, a variable taper, or different upper and lower contours, a basic machine may not provide enough U- and V-axis movement. The operator may then need additional setups, manual correction, grinding, or separate machining operations.

The DK45D is designed to reduce these limitations. Its four-axis linkage allows the X and Y axes to control the workpiece contour while the U and V axes control the orientation of the wire guides. As the wire tilts, the control system coordinates the horizontal and tapering movements so that the programmed contour is maintained through the thickness of the workpiece.

Large-taper capability is valuable in many applications. It can be used to manufacture inclined punch walls, tapered die openings, sloped mold inserts, complex stamping components, aerodynamic parts, and specialized mechanical profiles. It also gives process engineers more freedom when designing a component because the machining system is not limited to a simple vertical wall.

2. Product Positioning and Main Advantages

The DK45D is intended for medium-sized workpieces, precision molds, and complex components that demand a combination of large taper, substantial cutting thickness, and stable process control. It occupies an important position between ordinary high-speed wire-cut machines and larger heavy-duty taper models.

Compared with a standard vertical wire EDM machine, the DK45D offers a substantially wider range of taper movement. Compared with larger models in the same product family, it provides a more compact working envelope and lower machine weight, making it easier to install in facilities that do not require the capacity of the DK55D, DK63D, or DK80D.

The machine’s main advantages can be summarized as follows:

Large-taper machining: The DK45D supports a maximum cutting taper of ±30° per 40 mm, making it appropriate for steeply inclined and complex profiles.

Deep-section processing: A maximum cutting thickness of 450 mm enables the machine to handle workpieces significantly thicker than those used in many general-purpose wire EDM applications.

Four-axis coordinated movement: X, Y, U, and V axes operate as a linked system, supporting tapered walls, variable profiles, and spatial contours.

Stable load handling: The maximum worktable load is 400 kg, allowing the machine to process substantial mold plates and metal components.

High cutting efficiency: A maximum cutting efficiency of 10,000 to 16,000 mm²/h supports practical production scheduling while preserving the advantages of EDM.

Controlled surface quality: The stated optimal surface roughness can reach Ra≤2.5 μm under suitable conditions, depending on material, thickness, flushing, wire condition, and machining parameters.

Accessible operation: The X8 AUTOCUT control system provides an intuitive interface intended to reduce programming complexity and shorten the learning curve for operators.

Flexible configuration: The machine can be supplied with standard stepper drives and can optionally be equipped with AC servo drives for the X and Y axes. A linear scale and high-pressure water tank are also available as optional configurations.

These characteristics make the DK45D suitable for companies that need more than basic contour cutting but do not require the footprint, load rating, and cost of an extra-large wire EDM machine.

3. Large-Taper Cutting Capability and Four-Axis Control

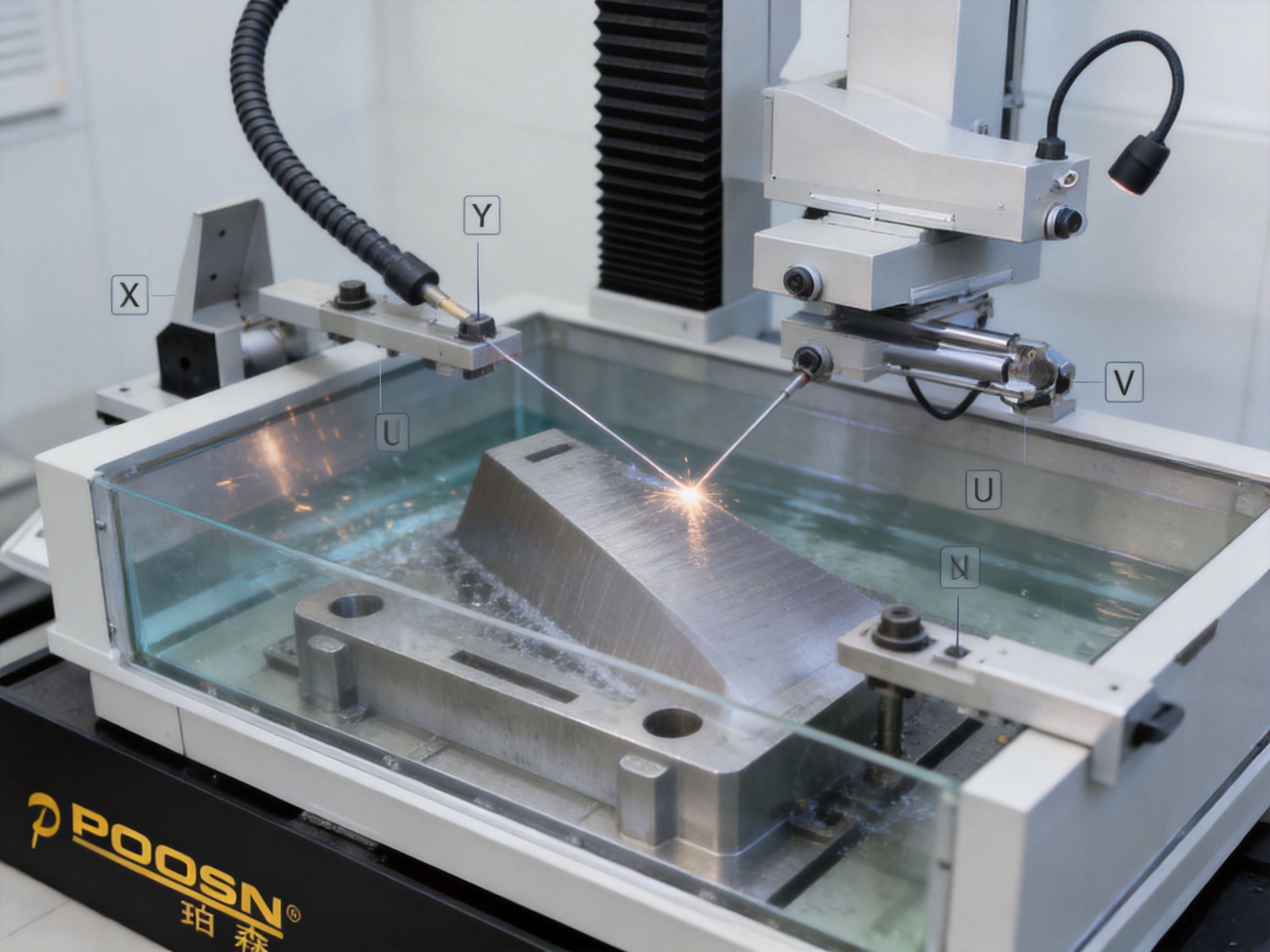

3.1 Coordinated X, Y, U, and V Movement

The technical foundation of the DK45D is its four-axis linkage. The X and Y axes define the principal contour on the worktable, while the U and V axes control the relative position of the upper and lower wire guides. By coordinating these movements, the wire can be inclined during cutting while following the desired geometry.

This is different from simply cutting a two-dimensional shape and manually adjusting the machine afterward. In a properly programmed four-axis operation, the taper angle is incorporated into the machining path. The control system calculates the relationship between the upper profile, lower profile, wire diameter, workpiece thickness, and desired offset. This enables the machine to produce components whose upper and lower contours are not identical.

For mold manufacturers, this capability can be important when designing draft angles, clearance features, punches, die openings, and forming surfaces. It can also reduce the need for secondary grinding or manual fitting. A single controlled EDM process may complete a profile that would otherwise require multiple machine setups.

3.2 Taper and Geometric Compensation

Large-angle wire cutting introduces geometric challenges. When the wire is inclined, the position of the cutting point changes through the thickness of the workpiece. The wire also has a finite diameter, and electrical discharge creates a spark gap between the wire and the material. If these effects are not considered, the upper and lower contours may deviate from the programmed geometry.

The DK45D uses the X8 AUTOCUT control system to manage programmed compensation and coordinated movement. The control logic is intended to account for wire diameter, taper orientation, workpiece thickness, and contour requirements. Proper compensation helps maintain dimensional consistency between the programmed path and the final machined profile.

In practical production, the final result still depends on correct setup, material conductivity, wire tension, dielectric cleanliness, flushing pressure, workpiece alignment, and electrical parameters. However, a dedicated large-taper machine provides the mechanical travel and control architecture required to make these adjustments effectively.

3.3 Variable Taper Applications

Many components do not require one constant taper angle throughout the entire contour. The upper and lower shapes may differ, or the angle may change along the path. Four-axis linkage gives the programmer greater flexibility in defining these transitions. This is useful for complex stamping dies, forming tools, specialized gears, aerospace components, and parts with irregular spatial geometry.

Variable taper cutting can also improve design freedom. Engineers may create a profile that combines a vertical section, a gradual inclination, and a steep transition without changing machines. The ability to complete such features in one coordinated process can improve repeatability and reduce the risk of alignment errors between separate operations.

4. Mechanical Structure Designed for Stability

Large-taper machining places more demanding requirements on the machine structure than ordinary vertical cutting. When the wire is inclined, the distribution of tension and flushing forces changes. The cutting path may also require extended movement of the tapering axes. If the frame, guides, or worktable lack sufficient rigidity, vibration marks, geometric errors, or unstable discharge may appear.

The DK45D incorporates a rigid machine structure intended to support reliable operation under these conditions. Its high-grade cast components are designed to provide a stable foundation for the worktable and moving assemblies. Natural aging or equivalent stress-relief practices are used in the manufacturing process to help reduce the effect of internal casting stresses.

A stable bed is important because thermal and mechanical changes can influence the relative position of the wire, workpiece, and guides. The stronger the structural foundation, the easier it is for the control system and precision guide components to maintain the intended relationship during long cutting cycles.

The machine is also equipped with high-precision linear rail support. Linear guides reduce friction and provide controlled movement for the worktable and associated assemblies. Their precision directly affects positioning behavior, contour smoothness, and the machine’s ability to repeat a programmed path.

For heavy or thick workpieces, the worktable must maintain its alignment while carrying the load. The DK45D has a maximum worktable load of 400 kg. This capacity is suitable for many medium-sized molds, plates, inserts, and precision components. Correct load distribution and proper clamping remain important, particularly when processing tall or irregularly shaped workpieces.

4.1 Wire Guiding and Flushing Alignment

Wire guides and flushing nozzles play a vital role in EDM performance. During large-angle cutting, the wire is no longer vertical, so the alignment between the wire path, guide system, and dielectric flow becomes more complex. Poor alignment can reduce flushing effectiveness, destabilize the discharge gap, and produce inconsistent surface conditions.

The DK45D’s wire-guiding arrangement is designed for controlled movement during taper operations. Calibrated guide and nozzle alignment helps maintain a stable wire path while allowing dielectric fluid to reach the cutting zone. Effective flushing removes eroded particles from the gap and reduces the chance of secondary discharges or short circuits.

The machine uses a Φ0.18 mm electrode wire with a wire guider and supports a wire feed speed of 1 to 11 m/s through frequency control. The maximum wire storage length is approximately 350 m. These specifications provide a practical balance between continuous cutting, wire stability, and consumable management.

5. EDM Discharge and Process Control

The performance of a wire EDM machine depends not only on axis accuracy but also on the stability of the electrical discharge. Each discharge removes a small amount of material from the workpiece while also affecting the wire and dielectric fluid. The process must maintain a controlled gap so that material is removed efficiently without causing excessive wire wear, unstable arcing, corner damage, or thermal discoloration.

The DK45D is equipped with a maximum processing current of 6 A and an electrical capacity of 2.5 KVA. The machine’s control and power systems are configured for wire EDM applications involving precision contour cutting and large-taper processing.

During cutting, the effective thickness and flushing conditions may change as the wire follows a tapered or variable profile. The discharge system must therefore accommodate differences in gap conditions. Appropriate pulse duration, discharge energy, wire speed, and flushing parameters can help maintain cutting continuity.

At corners, the wire may slow down or change direction. If the electrical energy is not adjusted appropriately, excessive heat may accumulate and cause corner collapse, overburn, or a loss of dimensional accuracy. A controlled EDM strategy helps moderate the discharge conditions in these areas.

Dielectric circulation is equally important. Electrical discharge produces fine debris, and this debris must be removed from the machining zone. The DK45D can be configured with a high-pressure water tank as an option. Depending on the workpiece thickness and machining conditions, enhanced flushing can help improve discharge stability and surface quality.

For users pursuing high accuracy, process discipline is essential. The workpiece should be correctly aligned, the wire guides should be clean, the dielectric should be maintained, and the programmed compensation should reflect the actual material thickness and taper requirement. The machine provides the necessary platform, while consistent operating procedures transform the platform into repeatable production performance.

6. Manufacturing Quality and Production Strength

The quality of a precision machine tool is determined by more than its published specifications. Casting preparation, component machining, assembly accuracy, electrical integration, software configuration, inspection, and final testing all influence the machine’s behavior after delivery. A manufacturer with complete process control can reduce variation between machines and improve the reliability of customer operations.

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has specialized in electrical discharge wire cutting since 1999. The POOSN brand was established in 2003, and the company later developed its own manufacturing base. In 2017, the company was formally established with registered capital of 60 million yuan and built its own factory. Its development has included cooperation with CNC technology partners, investment in processing and testing capabilities, and continued development of wire EDM equipment.

The company’s product portfolio includes PS-C and DK77-BC medium-speed wire-cut EDM machines, DK77-A and DK77-B high-speed wire-cut EDM machines, and DK77-D large-taper wire-cut EDM machines. This product coverage allows the company to serve different customer requirements, ranging from general contour cutting to high-speed processing and large-angle machining.

6.1 Casting and Stress Management

Machine-bed castings must be carefully managed because residual stress can affect long-term geometry. A casting that is not adequately stabilized may gradually change shape as internal stress is released. For a wire EDM machine, even a small structural movement can influence guide alignment, table travel, and taper accuracy.

The DK45D manufacturing approach emphasizes rigid cast structures and stress-reduction practices. Natural aging and controlled preparation help stabilize the main structural components before precision machining and assembly. This supports long-term dimensional consistency and reduces the risk of structural movement during service.

6.2 Precision Component Processing

Precision machine tools require precise component preparation. Linear guide mounting surfaces, worktable reference areas, wire guide supports, and axis transmission components must be processed and assembled with careful attention to alignment. Errors that appear insignificant during individual component inspection can accumulate when multiple assemblies are integrated.

By using advanced processing equipment and comprehensive testing methods, the manufacturer can control critical dimensions throughout production. The company states that its products are manufactured according to national standards and that each machine tool undergoes positioning accuracy testing.

6.3 Assembly and Electrical Integration

Mechanical assembly and electrical integration must be treated as one coordinated process. The CNC control, stepper or servo drives, tapering axes, wire transport system, dielectric circulation, and safety functions must work together. Incorrect cable routing, poor grounding, inadequate calibration, or inconsistent drive settings can reduce the performance of an otherwise accurate mechanical structure.

The DK45D uses standard XY stepper drives, with optional XY AC servo drives. The U and V tapering axes use three-phase stepper drives, while the Z-axis lift is driven by an AC 220 V electric motor. The four NC-controlled axes are X, Y, U, and V. This configuration gives users a defined platform for contour and taper control while allowing selected drive upgrades according to production needs.

Final assembly includes functional testing, axis movement verification, control-system checks, wire transport checks, and positioning accuracy inspection. The company also describes full-load operational testing and laser interferometer calibration as part of its quality assurance approach. These procedures are intended to ensure that the machine meets specified performance requirements before shipment.

7. Technical Specifications of the DK45D

The following table summarizes the principal DK45D specifications and places them alongside the larger models in the same DK-D large-taper series. The comparison helps users determine whether the DK45D provides sufficient working capacity or whether a larger machine is more appropriate.

Technical Item	DK45D	DK55D	DK63D	DK80D
Worktable Size	570 × 950 mm	740 × 1160 mm	844 × 1360 mm	1020 × 1620 mm
X/Y Travel	450 × 650 mm	550 × 800 mm	630 × 1000 mm	800 × 1200 mm
Processing Slot Size	630 × 990 mm	770 × 1180 mm	890 × 1400 mm	1050 × 1660 mm
Maximum Cutting Thickness	450 mm	600 mm	600 mm	800 mm
Maximum Worktable Load	400 kg	600 kg	800 kg	1000 kg
Maximum Cutting Taper	±30° per 40 mm	±30° per 80 mm; ±45° per 80 mm	Series-dependent	Series-dependent
Electrode Wire Diameter	Φ0.18 mm with guider	Φ0.18 mm with guider	Φ0.18 mm with guider	Φ0.18 mm with guider
Wire Feed Speed	1–11 m/s	1–11 m/s	1–11 m/s	1–11 m/s
Maximum Wire Storage	Approximately 350 m	Approximately 350 m	Approximately 350 m	Approximately 350 m
Maximum Cutting Efficiency	10,000–16,000 mm²/h	10,000–16,000 mm²/h	10,000–16,000 mm²/h	10,000–16,000 mm²/h
Optimal Surface Roughness	Ra≤2.5 μm	Ra≤2.5 μm	Ra≤2.5 μm	Ra≤2.5 μm
NC-Controlled Axes	X, Y, U, V	X, Y, U, V	X, Y, U, V	X, Y, U, V
Programming System	X8/AUTOCUT	X8/AUTOCUT	X8/AUTOCUT	X8/AUTOCUT
Standard XY Drive	Stepper drive	Stepper drive	Stepper drive	Stepper drive
Optional XY Drive	AC servo drive	AC servo drive	AC servo drive	AC servo drive
Machine Weight	1600 kg	2000 kg	2500 kg	3500 kg
Approximate Dimensions	1780 × 1500 × 1700 mm	2210 × 2030 × 2335 mm	2420 × 2240 × 2370 mm	2600 × 2590 × 2900 mm

The DK45D’s 450 mm cutting thickness and 400 kg worktable load are particularly relevant to medium-scale mold shops and precision component manufacturers. Users with larger workpieces can select the DK55D, DK63D, or DK80D, which provide progressively larger travel, cutting thickness, and load capacity.

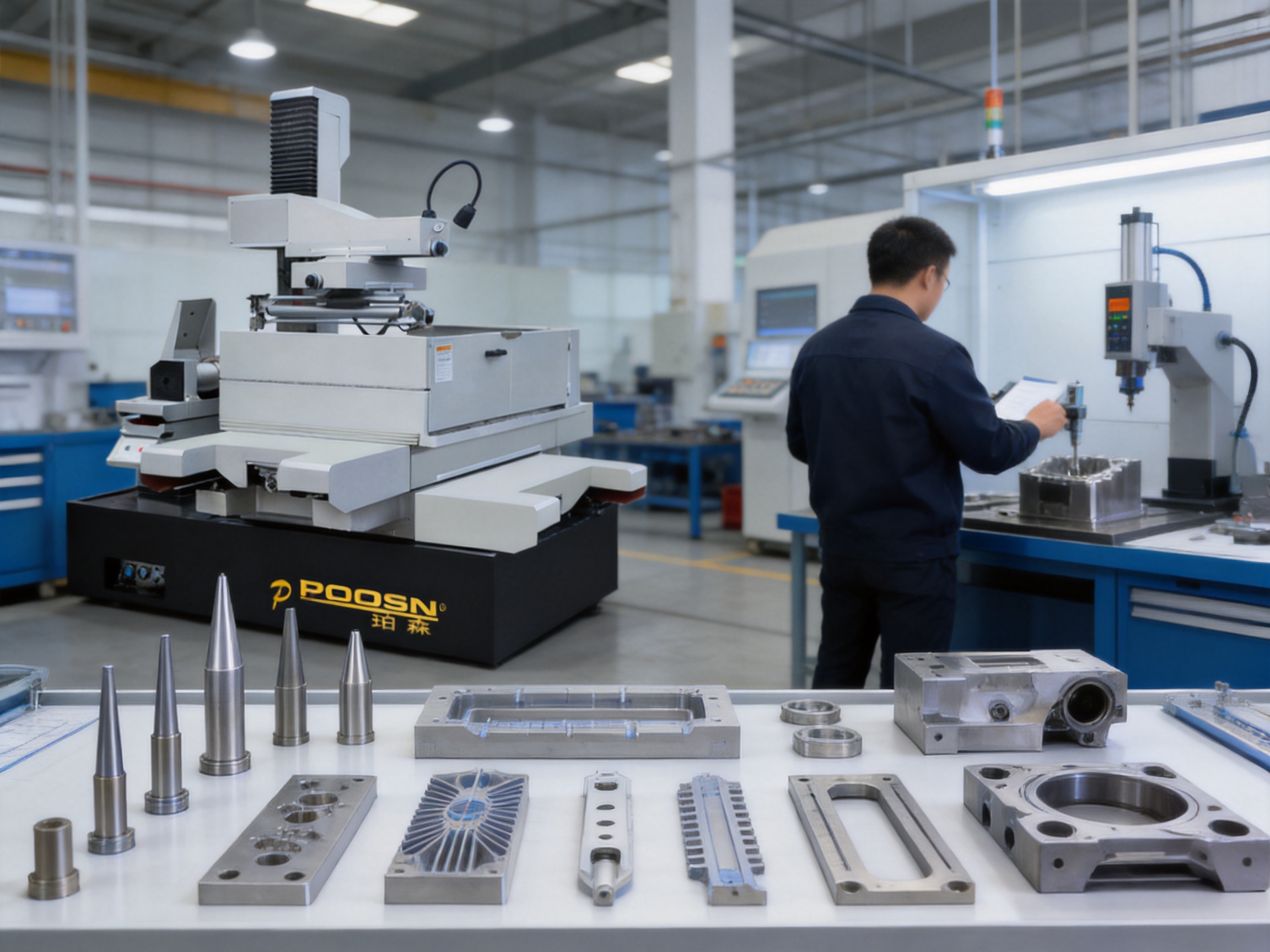

8. Applications in Mold Manufacturing

Mold and die production is one of the most important application areas for the DK45D. Precision molds often contain hardened materials, narrow slots, intricate contours, and draft angles that are difficult to produce using conventional cutting tools. Wire EDM can machine these features after heat treatment and maintain a relatively low mechanical load on the workpiece.

In stamping die manufacturing, the DK45D can cut punch profiles, die openings, stripper components, and inserts. Large-taper capability is particularly helpful when the die requires a controlled clearance angle or an inclined cutting edge. The machine may be able to complete the tapered profile in one coordinated operation, reducing secondary grinding and manual fitting.

For plastic injection molds, the machine can produce inserts, lifter-related components, narrow slots, and complex shaped features. The ability to process hardened tool steel is valuable when the component has already undergone heat treatment. The operator can use finish passes to improve dimensional accuracy and surface quality after rough or semi-finish cutting.

The machine is also suitable for precision mold components with deep profiles. A 450 mm maximum cutting thickness provides flexibility for taller workpieces, although the actual achievable thickness depends on flushing, material, wire condition, taper angle, and the specific process plan.

9. Aerospace and Precision Mechanical Applications

Aerospace components frequently involve difficult materials, complex contours, and strict requirements for geometric consistency. Wire EDM is used when a component requires a profile that is difficult to mill, when the material is hardened or difficult to cut, or when the design includes narrow openings and intricate contours.

The DK45D’s four-axis configuration supports tapered and spatially related profiles. This can be useful for components with aerodynamic forms, inclined walls, specialized slots, and nonparallel surfaces. The process does not impose the same cutting forces as milling, which can be beneficial when machining thin or delicate conductive components.

In precision machinery, the machine can process gears, mechanical inserts, guide components, and irregularly shaped parts. Its repeatable axis movement and controlled wire path support the production of small and medium-sized components where dimensional consistency is important.

Automotive component manufacturers can use the DK45D for steering, transmission, forming, and fixture parts. The machine is particularly useful when a part includes an irregular contour or a hardened section that would be time-consuming to process with conventional tools. Its capacity and taper range make it suitable for both prototype work and medium-volume production, subject to the required cycle time.

10. Operational Efficiency and Cost Control

Productivity in EDM depends on more than maximum cutting speed. A machine must also minimize setup time, reduce rework, provide stable cutting over long cycles, and offer a control interface that operators can use efficiently. The DK45D addresses these factors through its integrated taper control, workpiece capacity, wire feed system, and programmable operation.

Large-taper cutting in one setup can reduce the need for repeated clamping and realignment. Every additional setup introduces the possibility of datum errors, operator variation, and additional inspection. By keeping the part on the machine while the required contour and taper are produced, the manufacturer can simplify the process route.

Stable operation also influences costs. Unplanned wire breakage, poor flushing, excessive rework, and inconsistent surface quality can increase consumable use and extend delivery time. A rigid structure, precise guides, appropriate wire speed, and controlled dielectric circulation help reduce these risks when the machine is properly maintained.

The X8 AUTOCUT control system contributes to operational efficiency by providing a user-oriented interface for programming and process management. Complex four-axis calculations are handled within the control environment, reducing the amount of manual calculation required from the operator. This is especially useful for manufacturers transitioning from basic two-axis cutting to large-taper machining.

The machine can also be configured according to customer requirements. Standard stepper drives provide a practical and economical configuration, while optional AC servo drives and linear scales can be selected when the application places greater emphasis on positioning feedback and motion performance. The optional high-pressure water tank can support demanding flushing conditions.

11. Comparison with Conventional Wire-Cut Equipment

A conventional wire-cut EDM machine remains effective for many flat-profile applications. It can provide accurate contour cutting at a reasonable operating cost. However, its usefulness may be limited when the workpiece requires a large angle, a changing taper, or a different upper and lower profile.

The DK45D offers several advantages in these situations:

First, its tapering mechanism is integrated into the CNC architecture. The operator can program coordinated movement rather than relying on manual adjustments or separate operations.

Second, its extended taper capability is suited to steep profiles. A maximum taper of ±30° per 40 mm allows the machine to address applications beyond the practical range of many ordinary wire-cut machines.

Third, its work envelope and cutting thickness provide greater flexibility for medium-sized and relatively deep parts. This can reduce the need to divide a component into multiple operations.

Fourth, the machine is designed with structural rigidity and guide alignment in mind. Large-angle machining generates different force and flushing conditions from ordinary cutting, so a machine built specifically for this work can offer greater process stability than a general-purpose model used beyond its intended range.

Finally, the DK45D is part of a broader product family. If a customer’s future requirements grow, the DK55D, DK63D, and DK80D provide larger worktables, higher load capacities, and greater cutting thickness. This makes model selection more systematic and allows a manufacturer to choose equipment according to present and anticipated production needs.

12. Recommended Production Workflow

12.1 Workpiece Preparation

Before machining, the operator should verify that the material is electrically conductive and suitable for wire EDM. The workpiece should be cleaned, deburred, and inspected for excessive rust, scale, or contamination. Reference surfaces should be identified so that the part can be aligned accurately on the worktable.

For thick or heavy components, the clamping method must provide stable support without obstructing the wire path or dielectric flow. The workpiece should be positioned so that the required taper movement remains within the available U- and V-axis travel.

12.2 Alignment and Datum Setting

Accurate alignment is essential for high-precision taper cutting. The operator should establish the work coordinate system carefully and confirm the relationship between the programmed geometry and the physical workpiece. Incorrect alignment can create apparent taper errors even when the machine itself is operating correctly.

For components with different upper and lower profiles, the operator should verify the top and bottom reference conditions before starting the program. The wire guides, nozzles, and workpiece should be inspected to ensure that they do not interfere with the intended angle.

12.3 Programming and Compensation

The machining program should include the correct material thickness, wire diameter, offset, taper angle, and contour information. The X8 AUTOCUT control system is intended to simplify this process, but production personnel should still review the program and simulate critical movements where possible.

Compensation values should be selected according to the actual wire and machining condition. A finish cut may be required when the part demands closer dimensional control or improved surface roughness. For complex variable-taper work, a test cut on a representative material sample can help verify the process before production machining begins.

12.4 Cutting and Inspection

During cutting, the operator should monitor wire transport, dielectric condition, discharge stability, flushing, and abnormal alarms. Thick sections and steep tapers may require parameter adjustments to maintain a stable gap. After cutting, the component should be inspected using appropriate gauges, a coordinate measuring machine, optical equipment, or other suitable metrology tools.

Inspection results can be used to refine compensation and process settings. This closed-loop approach is especially valuable for complex molds, where a small geometric deviation can affect assembly, parting, or final product quality.

13. Maintenance and Long-Term Reliability

Regular maintenance is necessary to preserve the accuracy and productivity of any wire EDM machine. The operator should keep the worktable, wire guides, nozzles, and dielectric area clean. Accumulated debris can interfere with wire movement and flushing. The wire guides should be checked for wear because guide condition directly influences wire stability and dimensional performance.

The dielectric system should be maintained according to the manufacturer’s recommendations. Filters, pumps, tanks, and seals should be inspected at suitable intervals. Water quality and temperature can affect discharge stability and surface results. Maintaining the circulation system also helps reduce the risk of particle accumulation in the machining gap.

Linear guides and transmission components should be inspected and lubricated as specified. Unusual noise, increased friction, backlash, or irregular axis movement should be investigated promptly. Preventive maintenance can reduce downtime and protect the investment in precision equipment.

The electrical cabinet should be kept clean and adequately ventilated. Power connections, grounding, cables, and drive components should be checked by qualified personnel. Software backups and parameter records should be maintained so that production settings can be restored after service or control-system maintenance.

Long-term reliability also depends on operator training. Even an intuitive control system requires users to understand workpiece alignment, wire threading, dielectric management, taper programming, compensation, and inspection. Xinchengyang Machinery provides technical support and operation training to help customers use the equipment effectively.

14. Model Selection Guidance

The DK45D is recommended for medium-sized components and precision molds that require large-taper cutting, a maximum thickness of 450 mm, and a maximum worktable load of 400 kg. It is a practical choice for mold shops, precision machinery manufacturers, and medium-scale production facilities.

The DK55D is more suitable when the workpiece is larger, heavier, or requires a greater cutting thickness. It provides a maximum cutting thickness of 600 mm, a 600 kg worktable load, and a larger working area.

The DK63D is intended for still larger workpieces and heavier components. Its 800 kg worktable load and expanded travel make it appropriate for demanding mold and aerospace applications.

The DK80D is the largest listed model in the series. It is designed for heavy-duty molds, extra-large workpieces, and production tasks that require up to 800 mm of cutting thickness and a 1000 kg worktable load.

Customers should consider more than worktable size when selecting a model. Important factors include the actual workpiece envelope, maximum height, load distribution, taper angle, required surface finish, expected production volume, workshop space, crane capacity, power supply, and future product plans.

15. Technical Support and Customization

A wire EDM machine is a long-term production asset, so technical support is an important part of the purchasing decision. Xinchengyang Machinery provides rapid response and professional technical assistance intended to support equipment operation, troubleshooting, process adjustment, and maintenance.

Customization is available for selected requirements. Worktable dimensions, cutting angles, drive configuration, linear scale installation, high-pressure flushing, and other options can be discussed according to the application. For DK80D and larger machines, additional customization options are available.

Customization should be based on a clear technical evaluation. The customer should provide workpiece drawings, materials, dimensions, thicknesses, required taper angles, expected tolerances, surface-finish targets, production quantities, and available workshop conditions. This information allows the manufacturer to recommend a suitable configuration rather than simply selecting a machine based on nominal travel.

Professional support is also valuable during installation and commissioning. Correct leveling, electrical connection, dielectric preparation, wire threading, axis calibration, and initial test cutting can influence the machine’s performance from the beginning. A structured installation process helps the customer transition more quickly from equipment delivery to stable production.

16. Questions and Answers

Q1: What is the maximum taper capability of the DK45D?

The DK45D provides a maximum cutting taper of ±30° per 40 mm. This capability is intended for steeply inclined profiles, large-taper mold features, and complex components requiring more than ordinary vertical contour cutting.

Q2: What is the maximum cutting thickness?

The maximum cutting thickness is 450 mm. Actual cutting performance depends on the material, workpiece geometry, taper angle, wire condition, flushing, dielectric management, and selected machining parameters.

Q3: How much weight can the worktable support?

The maximum worktable load is 400 kg. Heavy workpieces should be distributed and clamped properly to maintain stability and avoid obstructing wire movement or dielectric flow.

Q4: Can the DK45D machine hardened materials?

Yes. Wire EDM is suitable for many electrically conductive hardened materials, including tool steels, alloys, and other metals. The machine does not rely on direct mechanical cutting forces, making it useful for components processed after heat treatment.

Q5: What control system does the machine use?

The DK45D uses the X8/AUTOCUT control system. It supports CNC programming and four-axis linkage for X, Y, U, and V movement. The interface is designed to reduce manual intervention and help operators manage complex taper-cutting tasks.

Q6: Is the DK45D suitable for inexperienced operators?

The machine uses an intuitive operating interface, and the control system handles many of the calculations associated with four-axis taper cutting. However, operators still need training in wire EDM principles, workpiece alignment, programming, flushing, maintenance, and inspection. The manufacturer provides operation training and technical support.

Q7: How does the machine maintain accuracy during heavy cutting?

Accuracy is supported by the rigid machine structure, high-precision linear rails, controlled wire guiding, coordinated axis movement, and EDM process control. Proper clamping, alignment, dielectric maintenance, and parameter selection are also essential for maintaining accuracy under high-load conditions.

Q8: What surface roughness can the DK45D achieve?

The listed optimal surface roughness is Ra≤2.5 μm. The final result depends on the workpiece material, thickness, cutting strategy, number of passes, wire condition, discharge settings, flushing, and inspection method.

Q9: Can the machine produce different upper and lower profiles?

Yes. The coordinated X, Y, U, and V axes allow the wire to tilt and follow spatially related profiles. This makes the machine suitable for variable taper cutting and components in which the upper and lower contours are not identical.

Q10: When should a customer choose a larger model?

A larger model should be considered when the workpiece exceeds the DK45D’s travel, 450 mm cutting thickness, or 400 kg load capacity. The DK55D, DK63D, and DK80D provide progressively larger worktables, higher load ratings, and greater cutting thickness for larger or heavier components.

Q11: What optional equipment is available?

Optional configurations include AC servo drives for the X and Y axes, a linear scale, and a high-pressure water tank. These options can be selected according to the required motion performance, measurement feedback, and flushing conditions.

Q12: What standards are used for machine accuracy?

The machine accuracy specification references GB/T7926-2015. The manufacturer also describes positioning accuracy testing, full-load operational testing, and precision calibration as part of its quality-control process.

17. Conclusion

The DK45D CNC Large-Taper Wire-Cut EDM Machine is developed for manufacturers that require more than ordinary two-dimensional wire cutting. Its combination of ±30° per 40 mm taper capability, 450 mm maximum cutting thickness, 400 kg worktable load, four-axis linkage, rigid structure, precision linear guides, and X8 AUTOCUT control system makes it suitable for precision molds, complex stamping dies, aerospace components, automotive parts, and specialized mechanical products.

Its principal competitive advantage is the ability to combine large-angle cutting with stable CNC contour control. Instead of treating taper machining as a secondary operation, the DK45D integrates it into the machine’s mechanical and control architecture. This can reduce repeated setups, simplify complex production routes, and improve consistency when manufacturing parts with inclined or variable profiles.

The strength of the product is supported by the manufacturing capabilities of Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. The company’s experience in wire EDM, its range of medium-speed, high-speed, and large-taper machines, its casting and assembly practices, and its testing and technical-support systems provide a foundation for reliable equipment delivery.

For customers seeking a medium-capacity large-taper wire EDM machine, the DK45D offers a balanced solution. It provides substantial cutting thickness and taper range without requiring the footprint and cost of the largest equipment in the series. With correct model selection, professional installation, operator training, and preventive maintenance, it can become a productive part of a precision manufacturing environment.

References

1. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., DK-D Large Cutting Taper WEDM Technical Parameters, product data supplied for the DK45D series.

2. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd., Product and Company Information, manufacturing history, product range, quality policy, and technical-support materials.

3. GB/T7926-2015, Accuracy of Wire-Cut Electrical Discharge Machines, referenced standard for machine accuracy evaluation.

4. General principles of wire electrical discharge machining, including spark-gap control, electrode-wire transport, dielectric flushing, wire compensation, and CNC contour interpolation.

5. General practices for precision mold manufacturing, hardened-tool-steel machining, taper cutting, dimensional inspection, and preventive maintenance of wire EDM equipment.
