Heavy-Duty CNC Wire-Cut EDM for Large and Thick Workpieces

Modern manufacturing increasingly depends on machining systems that can combine accuracy, productivity, stability, and flexibility in a single platform. Large molds, aerospace components, heavy mechanical parts, precision tooling, and high-value industrial components often present a difficult combination of requirements: they may be large in size, thick in section, complex in shape, and subject to demanding dimensional and surface-finish standards. The PS50C heavy-duty CNC wire-cut electrical discharge machining machine is designed specifically for these applications.

As a medium-speed wire-cut EDM machine, the PS50C occupies an important position between basic high-speed equipment and premium low-speed wire EDM systems. It is engineered to deliver large working capacity, thick-material cutting, controlled taper machining, repeatable positioning, and practical operating costs. Its design combines a rigid cast structure, high-precision linear motion components, a digital pulse power supply, advanced wire-tension management, four-axis linkage, and an intelligent control system.

The result is a machining solution intended for manufacturers that need more than a compact wire-cut machine can provide. With an X-axis travel of 500 mm, a Y-axis travel of 700 mm, a maximum cutting thickness of 350 mm, and a worktable load capacity of up to 600 kg, the PS50C is suitable for large and heavy workpieces that can exceed the practical limits of many standard medium-speed machines.

Its value is not limited to physical capacity. The machine is also configured for continuous production, multi-pass cutting, taper processing, high-speed material removal, and stable operation over extended periods. Through customization options, process support, and a manufacturing system built around quality control, the machine can be adapted to a wide range of industrial requirements.

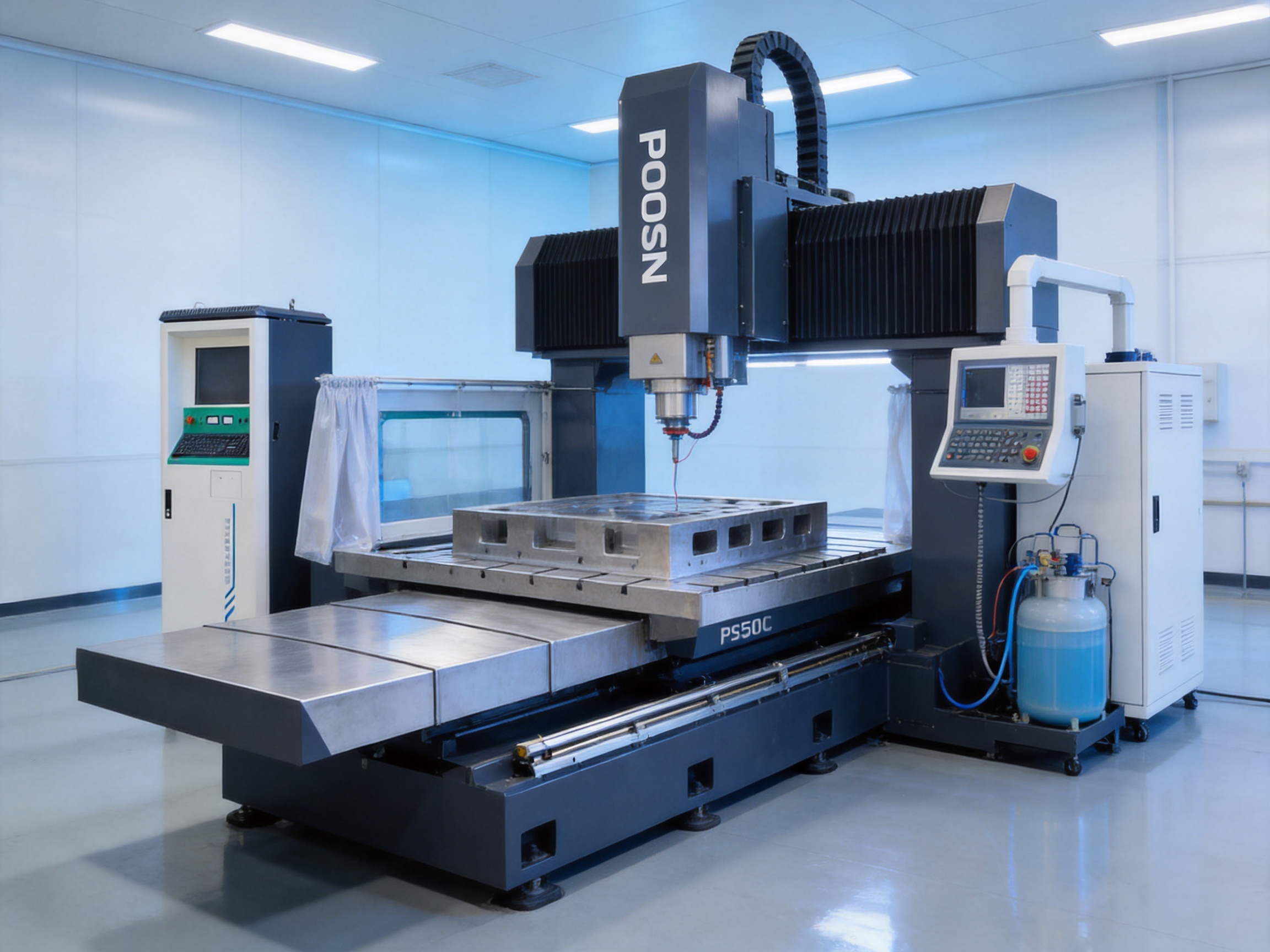

PS50C Heavy-Duty CNC Wire Cut EDM Machine for Large & Thick Workpieces

1. Product Positioning and Core Purpose

The PS50C is a CNC medium-speed wire-cut EDM machine developed for large-scale and heavy-duty processing. It uses a continuously moving molybdenum electrode wire and controlled electrical discharges to remove material without direct mechanical contact. This process is especially valuable when machining hardened steels, complex profiles, narrow slots, internal contours, and components that would be difficult to process using conventional milling, sawing, or grinding.

The machine is particularly suitable for workpieces that combine large dimensions with demanding geometry. A large mold insert, for example, may require an intricate profile, a high degree of dimensional accuracy, and a substantial cutting depth. Similarly, aerospace and heavy-equipment components may require complex contours in high-strength materials. The PS50C addresses these challenges through a larger work envelope, reinforced machine construction, and coordinated motion control.

Unlike equipment designed mainly for small parts or light-duty production, the PS50C is built around load-bearing capacity and long-term stability. Its T-shaped bed, high-strength HT250 castings, linear guides, ball screws, and rigid worktable support help reduce deformation during machining. This is important because dimensional errors in wire EDM can originate not only from the control system, but also from frame movement, thermal changes, wire vibration, guide wear, and workpiece loading.

The PS50C is therefore positioned as a practical solution for manufacturers that need to produce large components with consistent results while maintaining lower operating costs than many premium low-speed wire EDM systems. It can be used for single-piece production, small-batch manufacturing, medium-volume work, and selected mass-production applications.

2. Main Technical Capabilities

The PS50C provides a 740 × 1060 mm worktable and an XY travel of 500 × 700 mm. Its processing slot is approximately 740 × 1150 mm, providing useful access for large workpieces and fixtures. The maximum cutting thickness is 350 mm, allowing the machine to process thick metal sections that are beyond the normal range of many compact wire-cut machines.

The maximum worktable load is rated at 600 kg. This capacity gives manufacturers greater flexibility when machining heavy mold bases, large inserts, mechanical components, and high-density alloy parts. Proper workholding remains essential, but the high-rated table capacity provides a stronger foundation for demanding jobs.

The standard taper system supports a maximum cutting taper of approximately ±6° over 80 mm. Taper machining is controlled through the U and V axes, allowing the upper and lower wire guides to follow coordinated paths. This capability is useful for mold components, sloped surfaces, punches, dies, and parts requiring non-parallel profiles.

The machine uses four-axis linkage across the X, Y, U, and V axes. This arrangement allows the cutting path and taper geometry to be controlled together rather than treated as separate operations. The taper device is equipped with linear guide and ball-screw technology, helping improve movement smoothness and positioning repeatability.

The wire system uses a nominal electrode wire diameter of Φ0.18 mm with a wire guide. Wire-feed speed can be adjusted from approximately 1 to 11 m/s through frequency control, while the maximum wire storage length is approximately 320 m. The wire drum travel is approximately 180 mm. These specifications support continuous reciprocating operation and help the machine adapt to different cutting conditions.

The high-pressure water system has an approximately 80-liter fluid tank and uses a paper-core filtration method. Effective flushing and filtration are fundamental to wire EDM because machining debris must be removed from the discharge gap. Poor flushing can lead to unstable discharges, wire breakage, poor surface quality, and dimensional deviation.

Under suitable test conditions, the PS50C can achieve a maximum cutting efficiency of approximately 10,000 to 16,000 mm² per hour. Actual productivity depends on workpiece material, thickness, flushing conditions, power settings, wire condition, required surface finish, and the selected control-cabinet configuration. For finishing operations, multi-cutting can achieve a surface roughness of approximately Ra ≤ 1.2 μm under appropriate conditions.

Technical Item	PS50C Specification
Worktable size	740 × 1060 mm
XY travel	500 × 700 mm
Processing slot size	740 × 1150 mm
Maximum cutting thickness	350 mm
Maximum worktable load	600 kg
Number of controlled axes	X, Y, U, and V four-axis linkage
Maximum cutting taper	Approximately ±6°/80 mm
Electrode wire diameter	Approximately Φ0.18 mm with wire guide
Wire-feed speed	Approximately 1–11 m/s
Maximum wire storage length	Approximately 320 m
Fluid tank capacity	Approximately 80 L
Maximum cutting efficiency	Approximately 10,000–16,000 mm²/h
Multi-cut surface roughness	Approximately Ra ≤ 1.2 μm
Machine weight	Approximately 2,200 kg
Machine dimensions	Approximately 2300 × 1865 × 2200 mm

3. Rigid Machine Construction for Long-Term Accuracy

Machine rigidity is one of the most important factors in wire EDM performance. Although the cutting force in EDM is minimal compared with milling or turning, the wire itself is thin and sensitive to vibration. Even small structural movement, guide misalignment, or thermal deformation can affect the final profile, especially during thick-material cutting and multiple finishing passes.

The PS50C uses high-quality HT250 castings and a T-shaped bed. The T-shaped structure is designed so that the worktable moves within the supporting base rather than extending beyond the main foundation in the manner of a conventional strip-shaped bed. This construction helps limit deformation and improves support for large workpieces.

High-strength resin sand casting technology contributes to a stable machine skeleton. After casting, appropriate aging treatment is applied to reduce internal stress and preserve mechanical accuracy over time. This is especially important for heavy-duty machines because the frame must carry not only the workpiece but also the moving table, fixtures, fluid loads, and repetitive dynamic forces generated during wire movement.

The machine structure is designed to support long operating cycles, including continuous production and extended unattended periods when the job and workshop conditions are appropriate. Consistent rigidity also improves repeatability when a part is processed through roughing, intermediate cutting, and finishing passes.

Compared with lighter competing machines, the PS50C’s heavier frame and larger working platform provide a stronger basis for processing thick and high-density materials. A rigid structure cannot eliminate every source of error, but it reduces one of the most common causes of dimensional instability: uncontrolled mechanical movement.

Precision Motion Components

The worktable is equipped with high-precision linear guides and ball screws. These components provide controlled movement with lower friction and smoother travel than basic sliding arrangements. The machine also uses imported bearings in its motion mechanisms, supporting stable rotation and reducing the influence of bearing irregularities.

The standard configuration includes grating scales for real-time full-stroke position monitoring. Direct position feedback helps the control system monitor actual table movement instead of relying only on motor rotation calculations. This is beneficial for large travel ranges, where small positioning errors can accumulate over the full stroke.

Pitch-error compensation and coordinated servo control further support positioning precision. The machine may be supplied with standard XY stepper drives or optional AC servo drives, depending on the requested configuration. Servo drives are particularly suitable for applications that require improved dynamic response, smoother interpolation, and more demanding multi-pass accuracy.

4. Wire-Tension Control and Cutting Stability

Wire tension has a direct influence on cutting accuracy, surface finish, and wire-breakage resistance. If the wire becomes too loose, vibration and deflection can increase. If tension fluctuates excessively, the wire may deviate from the programmed path or become more vulnerable to breakage during high-energy cutting.

The PS50C can be equipped with an adaptive constant-tension wire-tightening mechanism. Unlike a simple weight-based system, an adaptive tension mechanism is designed to respond more effectively to changes in wire condition, cutting resistance, and reciprocating motion. By reducing tension variation, it helps maintain a more stable electrode path.

Constant tension is particularly valuable during taper cutting. In a tapered operation, the upper and lower guide positions are not aligned in the same way as they are during straight cutting. The wire must remain stable while the U and V axes move in coordination. Maintaining dynamic tension during this process contributes to better profile control and more consistent surface quality.

The automatic double-sided tightening mechanism is designed to reduce wire vibration and one-sided loosening. The waterproof gemstone guide wheel, approximately 40 mm in diameter and using a single-sided gemstone guide structure, supports smooth threading, long service life, and precise wire guidance.

The liftable gemstone wire guide provides two practical advantages. First, the guide can be positioned close to the workpiece surface, reducing the unsupported length of wire and helping limit vibration. Second, the cutting-height range can be adjusted without completely rethreading the wire, which improves operator convenience and reduces setup time.

These wire-management features give the PS50C an advantage over basic medium-speed machines that rely on simpler tensioning and guide arrangements. They do not replace correct operating parameters, but they create a more stable foundation for thick-section cutting, taper machining, and long-duration production.

5. Pulse Power Supply and Electrical Efficiency

The quality of the pulse power supply is central to EDM performance. Each discharge removes a small amount of material from the workpiece, and the electrical energy must be controlled carefully. Excessive energy may increase cutting speed but can damage the surface, increase wire consumption, or create an unstable gap. Insufficient energy may improve surface quality but reduce productivity.

The PS50C uses an advanced patented pulse power supply designed to balance material-removal efficiency, wire consumption, surface finish, and energy utilization. The system is intended to deliver high-speed processing while maintaining controlled discharge behavior and limiting unnecessary electrode wear.

Digital discharge control can respond to gap conditions and adjust energy according to real-time machining feedback. This approach helps the machine maintain a more consistent discharge gap as the workpiece profile changes. It is particularly useful during thick-plate machining, where flushing conditions and debris concentration may vary significantly across the cutting zone.

The current waveform is designed for smooth energy delivery. Controlled discharge behavior helps protect edge integrity and reduces the possibility of excessive recast material. During multi-pass cutting, lower-energy finishing pulses can be used to improve surface consistency and reduce the remaining recast layer.

The power supply is also intended to reduce electrode-wire consumption. Lower wire consumption can contribute to reduced operating cost, especially in production environments where wire usage represents a significant consumable expense. High-efficiency electrical control may also reduce unnecessary power loss during machining and standby operation.

Compared with conventional power supplies used on entry-level machines, the PS50C system provides more advanced control over discharge energy and process stability. Compared with expensive low-speed wire EDM systems, it offers a practical alternative for applications where high productivity, thick cutting, and manageable operating costs are more important than achieving the ultimate possible surface finish.

6. Intelligent CNC Control System

The PS50C is equipped with an industrial control computer and X8 control system as standard, with CAXA CAM2019 or TCAM available as optional software configurations. The control architecture is intended for stable operation over extended periods and supports the programming, monitoring, and process-control requirements of industrial wire EDM.

LAN and USB interfaces facilitate the transfer of machining programs and production data. These interfaces are useful when the machine is integrated into a workshop programming system or when operators need to load programs from external storage devices. A clear data-transfer process helps reduce manual transcription and supports better program management.

The intelligent programming environment simplifies the generation of G-code programs. Operators can prepare machining paths for straight lines, arcs, internal contours, external contours, and taper profiles. Depending on the software configuration, the system can also support more advanced programming and CAM-assisted operations.

Multi-axis coordination is essential for complex parts. The PS50C uses four-axis linkage to coordinate X, Y, U, and V movements. This arrangement enables the machine to control the upper and lower wire positions while following the programmed workpiece contour. The control system can also apply offset compensation and path adjustments to improve dimensional results during multiple cutting passes.

The interface is designed to reduce the learning curve for operators. Although EDM process control involves specialized knowledge, a logical interface, process parameters, and repeatable setup procedures can help new users become productive more quickly. This reduces training time and limits the risk of incorrect manual input.

A professionally configured industrial control system also supports long-term maintainability. Standardized hardware, accessible interfaces, and structured control functions make it easier for technicians to diagnose common issues, update programs, and preserve production records.

7. Automatic Threading and Operator Convenience

Manual threading can be time-consuming, particularly when a large number of holes or internal features must be cut. The PS50C can be configured with one-touch automatic threading, which reduces manual labor and improves operational safety. The operator can initiate the threading cycle through the control system rather than performing every threading step manually.

Automatic threading is especially valuable in multi-pass work and production environments. After a wire break, the system can help restore the wire path more efficiently, reducing machine downtime. The feature also makes the machine more accessible to operators who may have limited experience with manual threading procedures.

The liftable wire guide further improves setup flexibility. Adjusting the guide position without rethreading the complete wire path can simplify workpiece loading and cutting-height adjustments. This is useful for workpieces with different thicknesses or irregular fixture arrangements.

Automatic water spraying and controlled flushing support stable cutting. The water system directs dielectric fluid toward the cutting zone to remove debris and cool the machining area. Efficient fluid circulation helps maintain the discharge gap and protects the process against unstable arcing.

The machine also uses a waterproof guide-wheel design and accessible maintenance areas. These details may appear small compared with the worktable or power supply, but they have a meaningful effect on daily production. Easy threading, convenient guide replacement, practical access, and reduced cleaning requirements can improve total equipment utilization.

8. Thick-Material Cutting Performance

One of the defining strengths of the PS50C is its ability to cut materials up to approximately 350 mm thick. Thick cutting places greater demands on flushing, wire stability, discharge control, and thermal management. The longer cutting channel creates more opportunity for debris accumulation and wire deflection, so a machine designed for thick workpieces must provide more than a large Z-height.

The PS50C addresses thick-section machining through a combination of high-pressure water flushing, a stable wire-feed system, controlled pulse energy, and rigid mechanical construction. The large cutting thickness capability makes the machine appropriate for heavy mold plates, large die components, thick steel sections, engineering parts, and other workpieces that cannot be processed efficiently on smaller machines.

Thick cutting can be performed in stages. A high-energy roughing pass removes material efficiently, while subsequent passes use adjusted electrical parameters to improve profile accuracy and surface finish. This process allows manufacturers to balance speed and quality according to the purpose of the component.

For production planning, it is important to distinguish maximum thickness from guaranteed production results in every material. Actual performance depends on the alloy, electrical conductivity, workpiece geometry, slot width, flushing path, required tolerance, and desired surface roughness. The rated 350 mm capacity represents the machine’s design capability, while process trials help establish the best parameters for a specific job.

Compared with smaller medium-speed wire machines, the PS50C offers more practical capacity for thick components. Compared with conventional machining methods, wire EDM can process hardened materials without direct cutting forces and without requiring the same level of tool hardness. This makes it particularly useful for finished molds, hardened tool steels, and profiles that would be difficult to mill after heat treatment.

9. Large Workpiece Capacity and Heavy-Duty Production

Large workpieces often create logistical difficulties before machining even begins. The machine must have sufficient table area, travel, load capacity, clearance, and structural stability. The PS50C is designed to address these requirements with a 740 × 1060 mm worktable, 500 × 700 mm XY travel, and 600 kg maximum table load.

The large processing area allows manufacturers to reduce the need for repeated repositioning. Fewer setups can improve dimensional consistency because the workpiece remains in a known coordinate system for more of the operation. Reduced repositioning also lowers setup labor and the possibility of alignment errors.

The worktable can accommodate larger fixtures and more substantial workholding arrangements. Correct support remains important, especially for thin sections, long parts, and workpieces with irregular geometry. However, the heavy-duty table and rigid bed provide a stronger platform for these applications than compact machines designed primarily for small components.

Large workpiece capability is particularly important in aerospace component production, heavy equipment manufacturing, large mold production, and energy-related equipment. In these sectors, the workpiece value may be high and the cost of dimensional rework significant. Stable, predictable cutting can therefore contribute directly to improved production economics.

10. Taper Cutting and Complex Geometry

Taper cutting enables the machine to produce profiles in which the upper and lower contours differ. This capability is required for many punches, dies, mold inserts, angled openings, tapered slots, and components with designed draft angles. Without coordinated U and V movement, these parts would require additional setups or alternative machining processes.

The PS50C uses a taper device with linear guides and ball screws. This construction is intended to improve the smoothness and accuracy of U and V movement. The available CNC travel for the U and V axes is approximately 400 × 400 mm at ±30° and approximately 590 × 590 mm at ±45°, depending on the selected configuration and operating range.

The taper system is integrated with the four-axis CNC control. During machining, the system coordinates the main table movement with upper and lower guide movement. This enables the wire to follow a controlled spatial path while cutting the programmed contour.

Stable wire tension is especially important during taper cutting because the wire direction changes along the height of the workpiece. The adaptive tension mechanism, rigid guide arrangement, and coordinated servo or stepper control work together to reduce vibration and improve profile consistency.

For manufacturers, taper capability can eliminate secondary operations. A component that might otherwise require milling, grinding, or multiple fixture orientations can often be produced more efficiently in one wire-cut setup. This can shorten production time and reduce the risk of cumulative alignment errors.

11. Surface Finish and Multi-Pass Machining

Wire EDM normally uses multiple cutting passes when both productivity and surface quality are important. The first pass removes most of the material quickly. Additional passes gradually remove the recast layer, improve dimensional accuracy, and refine the surface.

The PS50C is designed to support this production strategy. Its pulse power supply provides different energy conditions for roughing and finishing, while the CNC system manages offsets and path compensation. A controlled wire-feeding system helps maintain a consistent electrode position across the successive passes.

Under appropriate conditions, the machine can achieve a multi-cut surface roughness of approximately Ra ≤ 1.2 μm. Actual results depend on the material, thickness, geometry, flushing, wire quality, cutting parameters, and the number of finishing passes. Nevertheless, this capability makes the machine suitable for many mold and precision-component applications.

Multi-pass processing also improves dimensional control. Rough cutting can prioritize material removal, while finishing passes can correct small deviations and produce a more consistent final profile. A stable mechanical structure is important because the finishing pass follows the previously cut path and must remain accurately aligned with it.

The PS50C’s control system can support offset compensation and process adjustments during multi-cutting. This helps maintain surface consistency from the first contour to the final finishing operation. For manufacturers producing repeat parts, saved programs and standardized parameter libraries can further improve consistency between production batches.

12. Advantages Over Conventional and Competing Equipment

The PS50C provides several advantages when compared with basic high-speed wire-cut machines. Its working area and maximum cutting thickness are significantly more suitable for large and heavy workpieces. Its rigid frame, grating-scale feedback, advanced power supply, and optional servo drives also provide a stronger foundation for precision production.

Compared with entry-level medium-speed machines, the PS50C offers more comprehensive process control. Features such as adaptive tension, automatic threading, four-axis linkage, linear guides on the taper unit, full-stroke position monitoring, and optional CAM software improve its ability to handle complex work.

Compared with premium low-speed wire EDM systems, the PS50C offers a different balance of investment and performance. Low-speed machines may provide exceptional surface finish, automatic wire threading, and highly advanced process automation, but they can also involve higher purchase and operating costs. The PS50C is attractive to manufacturers that need high material-removal rates, large workpiece capacity, thick-section capability, and practical multi-pass accuracy.

Another advantage is configuration flexibility. The machine can be supplied with different control-cabinet options, standard stepper drives, optional AC servo drives, automatic tension systems, and different programming packages. This allows customers to choose a specification that matches their production requirements instead of paying for functions that may not be needed.

The PS50C also supports customization of the worktable, cutting depth, power configuration, and machining process. This is useful for customers whose workpieces fall outside standard production patterns. A customized machine can be designed around the actual component dimensions, loading method, production volume, and required process sequence.

Evaluation Area	Basic High-Speed Wire EDM	PS50C Medium-Speed Wire EDM	Premium Low-Speed Wire EDM
Large workpiece capacity	Often limited	Strong, with large table and travel	Available, depending on model
Thick-material capability	Moderate to limited	Up to approximately 350 mm	Varies by machine configuration
Operating cost	Generally economical	Economical for heavy-duty production	Generally higher
Cutting efficiency	Good for standard work	Approximately 10,000–16,000 mm²/h under suitable conditions	Prioritizes premium accuracy and finish
Taper machining	May be basic or optional	Integrated U/V four-axis control	Usually advanced
Wire-tension control	May use basic mechanisms	Adaptive constant tension available	Highly automated on many models
Customization flexibility	Often limited	Worktable, depth, power, and process customization	Available but often more expensive
Best application focus	Small parts and general work	Large, thick, and production-oriented components	Highest-end precision and finish requirements

13. Manufacturing Strengths and Quality Assurance

The manufacturer behind the PS50C has specialized in electrical discharge wire-cutting technology since 1999. This long-term focus provides an important foundation for product development because wire EDM performance depends on the coordinated design of mechanical structures, electrical systems, motion control, software, flushing, and consumable management.

The company maintains capabilities in research, development, machining, assembly, testing, and technical service. Its product portfolio includes medium-speed wire-cut EDM machines, high-speed wire-cut machines, and large-taper wire-cut models. This range allows engineering knowledge to be transferred across different machine categories.

Advanced processing equipment and comprehensive testing methods are used to support manufacturing quality. Each machine tool undergoes positioning-accuracy testing before delivery. Inspection of travel accuracy, motion behavior, table alignment, electrical performance, and cutting results helps identify problems before the machine reaches the customer’s workshop.

The company’s own factory and engineering resources support greater control over production consistency. Internal coordination between design, casting, mechanical assembly, electrical integration, and final testing can reduce communication gaps and improve response speed when customization is required.

Machine tools are manufactured according to applicable national standards, while process control focuses on dimensional accuracy, structural stability, component quality, and operational reliability. Imported linear guides, Japanese EZO bearings, Panasonic servo motors where specified, and other selected components are integrated into the machine according to the required configuration.

Quality assurance does not end with final assembly. Before delivery, simulated machining tests can be performed to help verify operating parameters and shorten the customer’s break-in period. This approach is valuable because a wire EDM machine is a process system rather than simply a mechanical product. Cutting performance depends on how the mechanical, electrical, software, and flushing subsystems work together.

14. Customization and Application Engineering

Different industries may require different table sizes, loading methods, cutting depths, control systems, or process strategies. The PS50C can be adapted through comprehensive customization services. Worktable dimensions may be adjusted for special workpieces, while extended cutting depths and specific power configurations can be considered for specialized applications.

Customization may also involve the development of a machining process. Engineers can review the workpiece material, thickness, contour, dimensional tolerance, required surface finish, production volume, and preferred number of cutting passes. Based on these factors, the machine configuration and process parameters can be selected more effectively.

For customers processing aerospace components, heavy molds, and large precision parts, application engineering can be as important as the machine itself. A suitable fixture, stable datum system, reliable flushing method, and appropriate finishing strategy all contribute to final results.

The company can provide technical guidance during installation, commissioning, operator training, maintenance, and process optimization. Remote support and spare-parts assistance help reduce downtime and support long-term machine availability.

Customization is particularly useful when a standard model is close to the customer’s needs but requires additional capacity. Instead of selecting a substantially larger machine with unnecessary cost and floor-space requirements, the customer may be able to configure the PS50C around the actual production demand.

15. Application Areas

Large Mold Manufacturing

The PS50C is suitable for large injection molds, stamping dies, extrusion dies, and other tooling components. Its large worktable, taper capability, thick-cutting capacity, and multi-pass control support complex mold profiles and hardened materials.

For mold manufacturers, repeatability and surface consistency are essential. The first rough cut can establish the basic profile, while finishing passes improve dimensional accuracy and reduce the need for manual correction. Taper cutting can also produce draft angles and non-parallel features directly.

Aerospace Components

Aerospace manufacturing often involves high-strength alloys, complex profiles, and demanding quality requirements. Wire EDM can process conductive materials without applying significant mechanical cutting force, making it suitable for delicate or intricate components.

The PS50C’s heavy-duty table and large cutting range support larger aerospace-related parts, while the stable wire system and position feedback contribute to repeatable geometry. Application-specific testing is recommended for each alloy and component design.

Heavy Machinery

Large mechanical components, wear-resistant plates, custom machine parts, and heavy-equipment tooling may exceed the capacity of compact wire-cut machines. The PS50C provides a stronger work platform and greater cutting depth for these applications.

Its high table load rating also supports substantial fixtures and workpieces. Efficient rough cutting can shorten production time, while finishing passes can meet the dimensional and surface requirements of precision mechanical assemblies.

Precision Machinery and Tooling

Precision machinery manufacturers can use the PS50C for punches, dies, guide components, custom profiles, precision slots, and difficult internal contours. The ability to cut hardened material after heat treatment can reduce distortion risks associated with machining before hardening.

Small- and Medium-Batch Production

The machine is not limited to individual prototypes. Its cutting efficiency and repeatable CNC operation make it suitable for small- and medium-batch production. Programs can be stored and reused, while process parameters can be standardized for recurring parts.

16. Production Efficiency and Cost Control

Production efficiency is determined by more than maximum cutting speed. It also depends on setup time, wire-threading time, workpiece loading, program preparation, machine availability, wire consumption, rework, and maintenance. The PS50C addresses several of these factors through automatic threading, large workpiece capacity, efficient pulse control, and accessible maintenance design.

The ability to process a large part in one setup can reduce repositioning and alignment work. A large table can also allow multiple smaller parts to be arranged within one machining cycle, depending on the cutting path and fixture design. This can improve machine utilization for batch production.

High cutting efficiency helps reduce the roughing time required for thick sections. At the same time, the multi-pass process allows the operator to reserve high-precision finishing for the surfaces that require it. This balance prevents the entire operation from being performed at slow finishing conditions.

Lower wire consumption contributes to consumable savings. Stable wire tension and controlled discharge reduce the likelihood of unnecessary wire breakage, while efficient power management helps control electricity use. Low-energy standby operation can further reduce consumption when the machine is not actively cutting.

Standardized components and accessible service points simplify maintenance. Centralized lubrication for critical components such as guide rails and lead screws helps maintain reliable operation and reduces the risk of missed lubrication tasks.

17. Environmental and Workshop Considerations

Although the PS50C is designed for robust industrial use, the installation environment affects machining performance. The machine should be placed on a suitable foundation with adequate space for operation, maintenance, workpiece loading, fluid-system access, and electrical service.

A workshop with limited temperature fluctuation is recommended for precision work. Thermal changes can affect the machine structure, workpiece dimensions, dielectric fluid, and electrical stability. Dust levels should also be controlled to protect guideways, electrical cabinets, and fluid-system components.

The working fluid should be maintained according to the recommended filtration and replacement schedule. Paper-core filters must be checked and replaced when necessary. Clean dielectric fluid supports stable flushing and reduces the risk of debris-related discharge problems.

Operators should monitor wire condition, guide-wheel wear, tension behavior, pump performance, filtration status, and abnormal sounds or vibration. Preventive maintenance is more effective than waiting for a wire break, poor finish, or positioning problem to become severe.

The machine’s eco-friendly pulse power supply and energy-management functions can help reduce unnecessary electrical consumption. Efficient discharge control also supports lower consumable usage and more responsible production. These benefits are consistent with the broader industry movement toward efficient and sustainable manufacturing.

18. Maintenance and Service Support

Long-term reliability depends on a clear maintenance program. Daily checks should include dielectric-fluid level, filter condition, wire path cleanliness, guide-wheel condition, flushing pressure, and visible signs of leakage or abnormal movement.

Periodic maintenance should include lubrication of guideways and ball screws, inspection of bearings, checking of electrical connections, verification of wire-tension behavior, and cleaning of the working area. The control cabinet should be protected from excessive dust and moisture.

Critical components are positioned with maintenance access in mind. Centralized lubrication can simplify routine service, while standardized components support spare-parts management. A structured maintenance schedule helps preserve accuracy and reduces unplanned downtime.

Technical support includes installation guidance, commissioning assistance, process recommendations, remote support, and spare-parts supply. Rapid response is especially valuable for manufacturers operating multiple shifts or continuous production schedules.

When a customer requires a special process, technical personnel can help review the cutting conditions and machine configuration. This may include advice on wire type, flushing, pulse settings, workholding, cutting sequence, taper compensation, and finishing strategy.

19. Recommended Model Selection

The PS-C product family includes several sizes for different production requirements. The PS35C is intended for smaller parts and small- to medium-batch production where precision and efficiency are important but the workpiece size is limited.

The PS45C provides a larger workbench and higher load capacity for medium-sized components, larger molds, and precision parts. It is a suitable step up for customers whose workpieces exceed the practical range of smaller machines.

The PS50C is designed for large and heavy components. Its 500 × 700 mm XY travel, 350 mm maximum cutting thickness, and 600 kg maximum worktable load make it suitable for demanding production tasks that require both capacity and precision.

The PS60C is intended for extra-large workpieces and high-load components. It offers a 600 × 800 mm XY travel, approximately 430 mm maximum cutting thickness, and approximately 800 kg maximum table load. Customizable options are available for the PS60C and larger machines.

Model	XY Travel	Maximum Cutting Thickness	Maximum Table Load	Typical Application
PS35C	350 × 500 mm	280 mm	300 kg	Small parts and small-to-medium batches
PS45C	450 × 600 mm	280 mm	400 kg	Medium parts, molds, and precision components
PS50C	500 × 700 mm	350 mm	600 kg	Large and heavy parts requiring high capacity
PS60C	600 × 800 mm	430 mm	800 kg	Extra-large workpieces and high-load applications

20. Q&A: Common Questions About the PS50C

Q1: Is the PS50C suitable for large workpieces?

Yes. The machine has an XY travel of approximately 500 × 700 mm, a 740 × 1060 mm worktable, and a processing slot of approximately 740 × 1150 mm. These dimensions make it suitable for large molds, mechanical parts, aerospace components, and other workpieces that require a wider processing range.

Q2: How thick a material can the PS50C cut?

The maximum rated cutting thickness is approximately 350 mm. Actual production results depend on material type, electrical conductivity, geometry, flushing conditions, workpiece fixturing, and the required accuracy and surface finish. Process testing is recommended for especially difficult alloys or unusual geometries.

Q3: What is the maximum worktable load?

The PS50C has a maximum worktable load of approximately 600 kg. The workpiece must still be supported correctly, and the fixture arrangement should distribute the load safely across the table.

Q4: Can the machine perform taper cutting?

Yes. The PS50C uses U and V axes for taper control and supports four-axis linkage with X, Y, U, and V. The maximum cutting taper is approximately ±6° over 80 mm under the stated configuration.

Q5: What cutting efficiency can users expect?

The maximum cutting efficiency is approximately 10,000 to 16,000 mm² per hour under suitable test conditions. Actual performance varies according to material, thickness, flushing, wire condition, pulse parameters, and the selected control-cabinet configuration.

Q6: What surface finish can the PS50C achieve?

With appropriate multi-pass cutting conditions, the machine can achieve an optimal surface roughness of approximately Ra ≤ 1.2 μm. The final result depends on the workpiece material, thickness, number of passes, cutting parameters, wire stability, and flushing performance.

Q7: Does the PS50C support automatic threading?

One-touch automatic threading is available to reduce manual work and improve operating convenience. The feature can be particularly useful in production environments where wire breaks or repeated internal starts occur.

Q8: Is constant wire tension available?

Yes. An adaptive constant-tension wire-tightening mechanism is available as an option. The system is designed to respond more effectively to wire-tension fluctuations and can help improve stability during straight and taper cutting.

Q9: What control system is used?

The standard programming system is X8/AUTOCUT. CAXA CAM2019 or TCAM can be selected as optional configurations. The machine also provides LAN and USB interfaces for program transfer and data exchange.

Q10: Can the machine use servo drives?

Yes. The standard configuration may use XY stepper drives, while AC servo drives are available as an option. Servo drives may be preferred for applications requiring improved dynamic response, smoother movement, and demanding multi-pass accuracy.

Q11: Is the PS50C suitable for continuous operation?

The machine is designed for stable long-term operation and can support extended production schedules when correctly installed, maintained, and operated. Proper fluid management, lubrication, wire inspection, and workshop temperature control are important for continuous operation.

Q12: Can the PS50C be customized?

Yes. Customization may include worktable dimensions, extended cutting depth, power configuration, control options, and process development. The appropriate solution depends on the workpiece dimensions, material, production volume, and required accuracy.

Q13: How does the PS50C compare with a smaller PS-C model?

The PS50C provides a larger worktable, greater XY travel, higher load capacity, and greater cutting thickness than smaller models such as the PS35C and PS45C. It is intended for large, heavy, and more demanding workpieces.

Q14: What industries commonly use this type of machine?

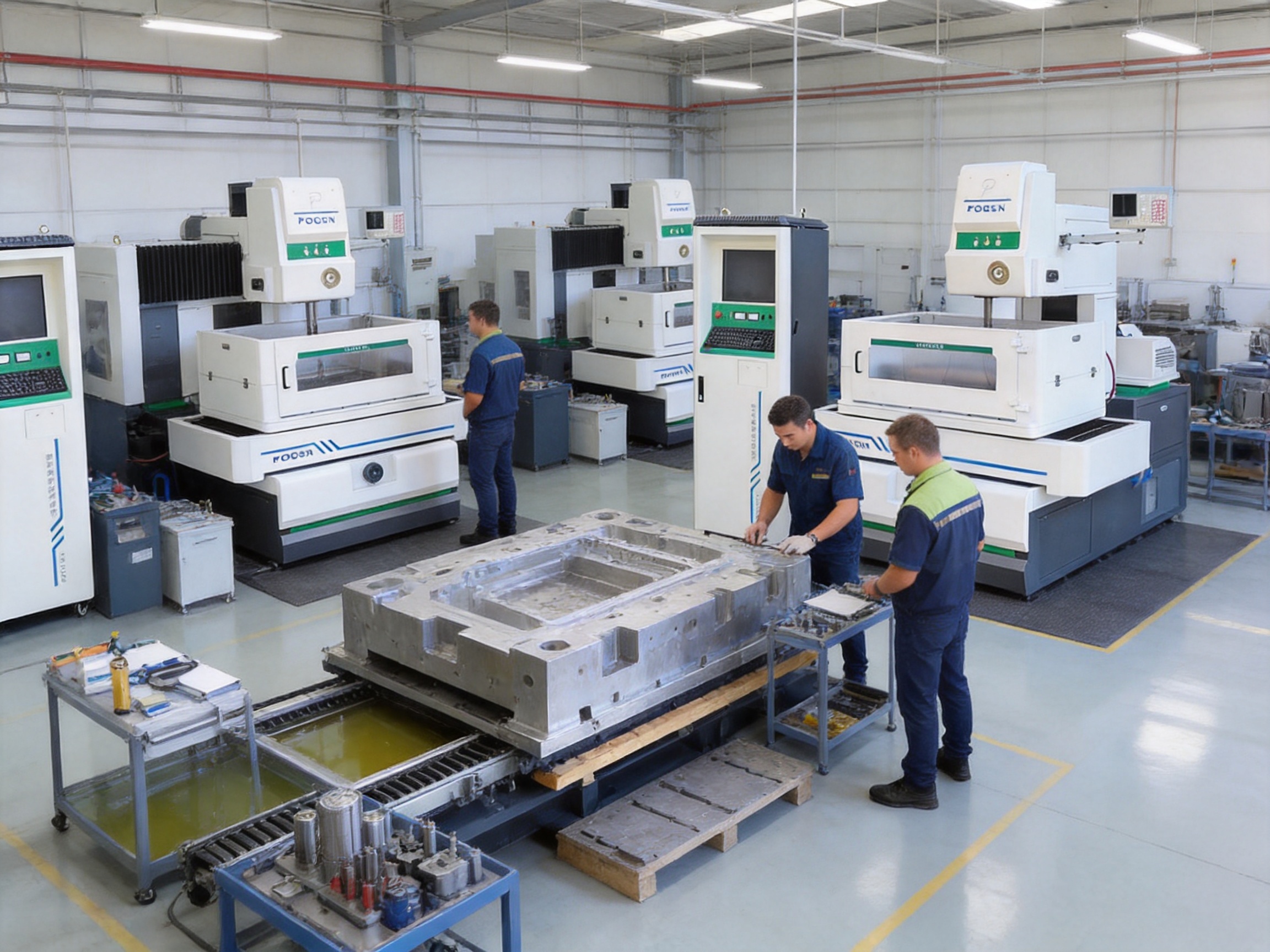

Typical applications include large mold manufacturing, aerospace components, heavy machinery, precision tooling, precision machinery, hardened steel parts, and medium- to large-scale industrial production.

Q15: What installation environment is recommended?

A stable workshop with limited temperature fluctuation, controlled dust, adequate floor strength, suitable electrical service, and sufficient maintenance space is recommended. Correct installation and leveling help the machine achieve its designed accuracy.

21. Conclusion

The PS50C heavy-duty CNC wire-cut EDM machine is designed for manufacturers that require more capacity, stability, and process flexibility than a conventional compact wire-cut machine can provide. Its large worktable, 500 × 700 mm XY travel, 350 mm maximum cutting thickness, and 600 kg worktable load support the machining of large and heavy components.

Its performance is reinforced by a rigid HT250 T-shaped bed, resin-sand castings, aging treatment, linear guides, ball screws, grating-scale feedback, imported bearings, controlled pulse power, adaptive wire tension, automatic threading, and four-axis taper machining. These features work together to improve cutting stability, productivity, surface quality, and long-term reliability.

Compared with basic high-speed machines, the PS50C offers greater capacity and more advanced process control. Compared with high-cost premium wire EDM systems, it provides a practical balance between precision, cutting efficiency, customization, and operating economy. This makes it an attractive option for large molds, aerospace-related parts, heavy mechanical components, precision tooling, and other demanding applications.

The manufacturer’s experience in EDM development, in-house production capabilities, positioning-accuracy testing, process simulation, technical support, and customization services further strengthens the machine’s value. For customers seeking a dependable wire erosion machine for large and thick workpieces, the PS50C provides a comprehensive platform for improving production efficiency while maintaining controlled machining quality.

References

1. Manufacturer-provided PS-C Series Medium-Speed Wire-Cut EDM Technical Specifications.

2. Manufacturer-provided PS50C Product Description and Application Information.

3. Manufacturer-provided CNC Wire-Cut EDM Machine Operation and Configuration Data.

4. General Principles of Electrical Discharge Machining and Wire Electrical Discharge Machining.

5. General Practices for CNC Machine Tool Accuracy Testing and Preventive Maintenance.

Product: PS50C Heavy-Duty CNC Wire Cut EDM Machine for Large & Thick Workpieces
